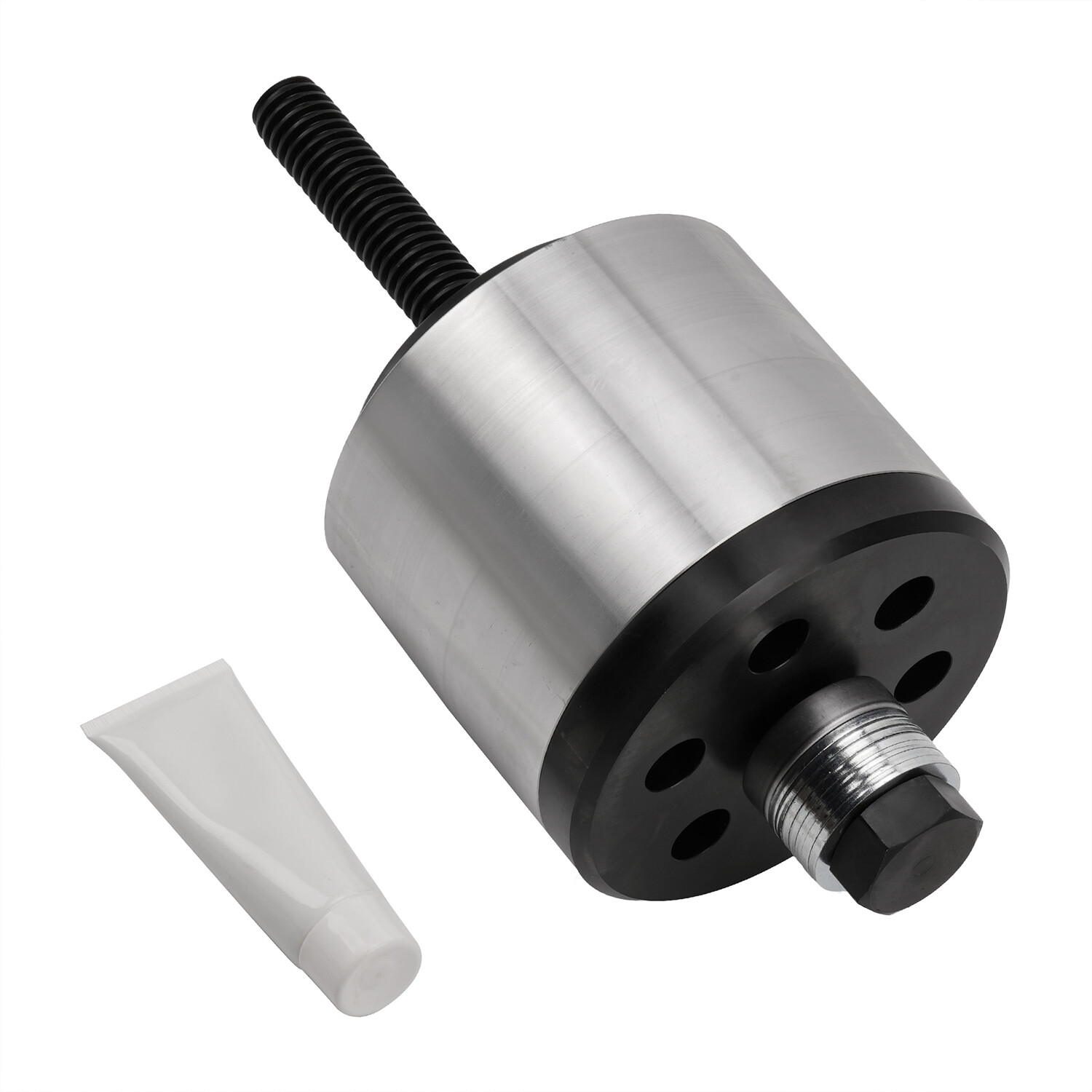

Hendrickson Tri-Functional (Narrow) Bushing Adapter Alternative to S-24736:
$204.00

Item Part Number:S-24736
Bushing Type:Narrow Bushing
Part Type:Bushing Installation Tool

High Graded Steel Components，Durable & Strength，Resists Corrosion，Black Oxide Coating
Direct Replacement for Hendrickson S-24736
For use with Hendrickson Vantraax Narrow Bushing Kits
Ensure that threads on tool are well lubricated before and during use to avoid damaging threads

Removal of Bushing：
1.Scribe the bushing orientation on the beam tube and compression tube.
2.The spring pins are not required to line up with the bushing holes during removal.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)

Installation of Bushing：
1.Lubricate the bushing and insert the bushing into compression cylinder.
2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing. Hook up hydraulics and begin installation operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)

Cross References:
BWP HE9BL-T
Hendrickson S-24736
Euclid E-14634
Power Products Webb: RF/S-20,23,25,30 Trailer Air Ride Suspension
Hendrickson: HK/HS190-230 HT190-230-250-300 Air Suspension
Hendrickson: Intraax AA-EDT/NT/T Vantraax HKA/NT/T Air Suspension
Hendrickson: Intraax AA-L/NL/NLS/EDL HKA-L/RL/NL Air Suspension
Hendrickson: T-4/6/9/15/17 Air Suspension
Hendrickson: Toughlift FM/W/B LK Lift Axle Air Suspension
Watson & Chalin: TA250/300T Trailer Air Suspension
