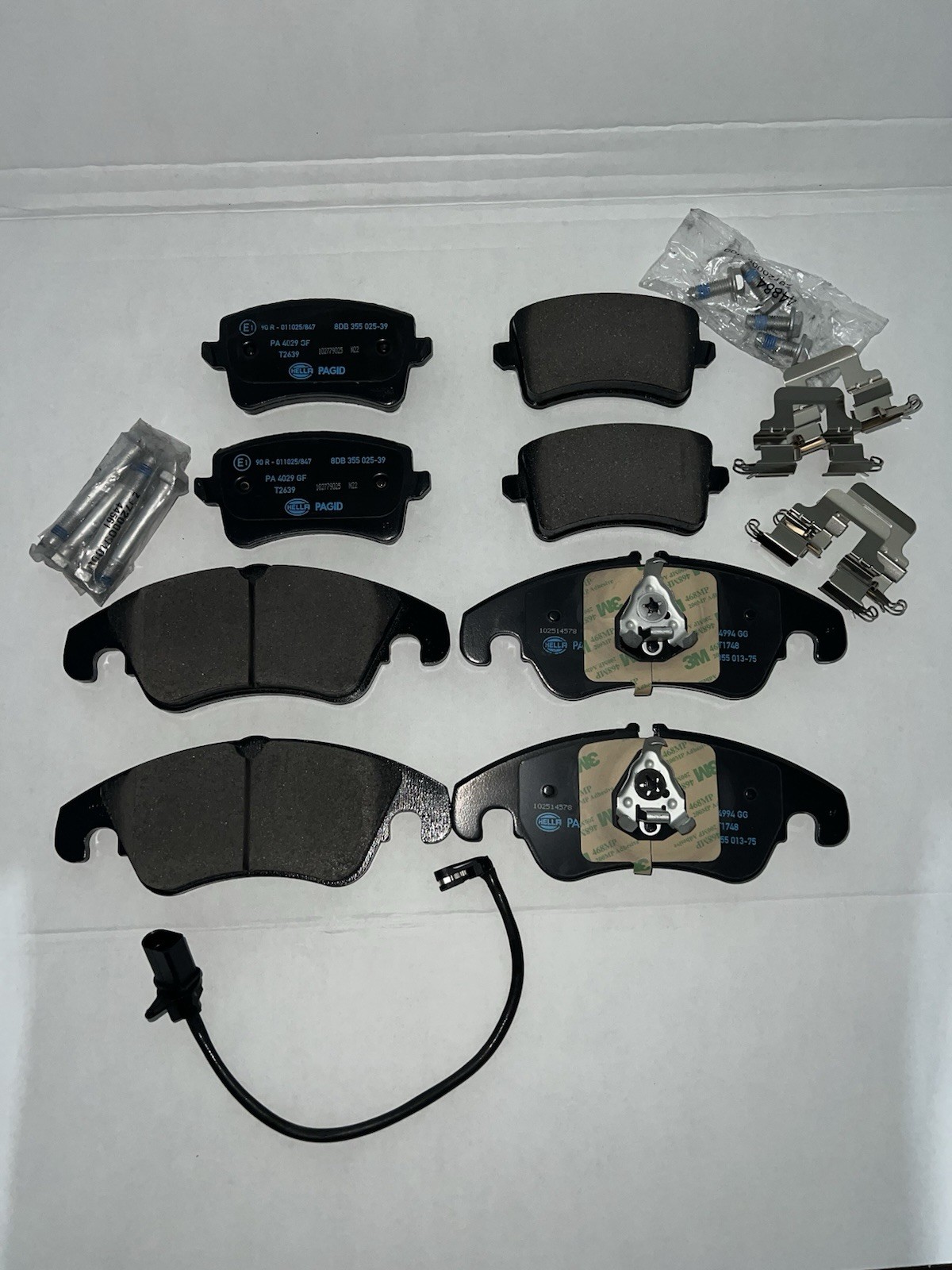

HELLA/PAGID [Front+Rear] Brake Pads & Sensor For Audi A4 A5 S5 And Q5 2009-2016 For Sale - New and Used

•HELLA/PAGID 355013751

Low-Metallic; Includes Wear Sensor

HELLA's Low-Metallic brake pads are at the forefront of European vehicle braking systems. Engineered for high performance, their pads outshine other brands by optimizing for the lower hydraulic line pressure of major European cars. Unique features include superior heat dissipation and minimal brake dust. Experience confidence with every stop.

Features & Benefits:

Ensures optimal braking performance with low-metallic formulation, enhancing efficiency and reducing brake dust.

Maintains consistent pedal feel with low compressibility, enhancing driver control and comfort.

Meets ECE-R90 standards, ensuring compliance with European safety regulations and optimal braking performance.

Offers reliable performance in high temperatures with excellent fade stability and effective heat dissipation.

HELLA / PAGID 355013751 Specifications

Abutment Clips Included -No

Adhesive Backed Pad Shim-Yes

Brake Lubricant Included -No

Brake System-Lucas

Chamfered Edges-Yes

ECE-R90 Certified-Yes

Friction Material Composition-Low-Metallic

Height 1 [mm]-74.2

Height 2 [mm]-73.7

Inner Pad Friction Material Thickness-19.40 mm

Inner Pad Height -73.90 mm

Inner Pad Width -188.20 mm

Mounting Hardware Included -Yes

Number of wear indicators [per axle]-1

Outer Pad Friction Material Thickness- 19.40 mm

Outer Pad Height- 73.90 mm

Outer Pad Width -188.20 mm

Pad Quantity: 4

Pad Shims Included: Yes

Pad Wear Sensor Included: Yes

Pad Wear Sensor Type: Electronic

Prepared For Pad Wear Sensor: Yes

Slotted: Yes

Thickness [mm]: 19.4

Wear Indicator Attached: Yes

Wear Warning Contact: incl. wear warning contact

Width [mm]: 188

OEM / Interchange Numbers: 4G0698151, 4G0698151D, 4GD698151, 8K0009830G, 8K0009830H, 8K0069815B, 8K0069815D, 8K0069815E, 8K0069815H, 8K0069815K, 8K0098301G, 8K0098301H, 8K0615151C, 8K0698151, 8K0698151B, 8K0698151C, 8K0698151D, 8K0698151E, 8K0698151G, 8K0698151H, 8K0698151J, 8K0698151K, 8K0698151L, 8K0698151R, 8R0698151, 8R0698151A, 8R0698151AG, L4GD698151, L4GGD69811

AUDI A4 2009-2016

AUDI A5 2008-2017

AUDI A6 2012-2015

AUDI A7 2014-2015

AUDI ALLROAD 2013-2016

AUDI Q5 2009-2016

AUDI S4 2010-2016

AUDI S5 2008-2017

•HELLA / PAGID 355025391

Includes Clips; includes sliding shims w/ about 18mm Gap; Low-Metallic

HELLA's Low-Metallic brake pads are at the forefront of European vehicle braking systems. Engineered for high performance, their pads outshine other brands by optimizing for the lower hydraulic line pressure of major European cars. Unique features include superior heat dissipation and minimal brake dust. Experience confidence with every stop.

Features & Benefits:

Ensures optimal braking performance with low-metallic formulation, enhancing efficiency and reducing brake dust.

Maintains consistent pedal feel with low compressibility, enhancing driver control and comfort.

Meets ECE-R90 standards, ensuring compliance with European safety regulations and optimal braking performance.

Offers reliable performance in high temperatures with excellent fade stability and effective heat dissipation.

HELLA / PAGID 355025391 Specifications

Abutment Clips Included Yes

Adhesive Backed Pad Shim Yes

Brake Lubricant Included No

Brake System Lucas

Chamfered Edges Yes

ECE-R90 Certified Yes

Friction Material Composition Low-Metallic

Height [mm] 59

Inner Pad Friction Material Thickness 17.50 mm

Inner Pad Height 59.00 mm

Inner Pad Width 116.60 mm

Mounting Hardware Included Yes

Outer Pad Friction Material Thickness 17.50 mm

Outer Pad Height 59.00 mm

Outer Pad Width 116.60 mm

Pad Quantity 4

Pad Shims Included Yes

Pad Wear Sensor Included No

Prepared For Pad Wear Sensor No

Slotted No

Thickness [mm] 17.5

Wear Indicator Attached No

Wear Warning Contact Not Prepared for Wear Warning indicator

Width [mm] 116.6

OEM / Interchange Numbers: 355013651, 8K0009860E, 8K0009860F, 8K0009860H, 8K0069845A, 8K0069845B, 8K0069845C, 8K0069845D, 8K0069845E, 8K0098601E, 8K0098601F, 8K0098601H, 8K0698451, 8K0698451A, 8K0698451B, 8K0698451C, 8K0698451D, 8K0698451E, 8K0698451F, L8KD698451, L8KD698451A

AUDI A4 2009-2016

AUDI A5 2008-2017

AUDI ALLROAD 2013-2016

AUDI Q5 2009-2017

AUDI S4 2010-2016

AUDI S5 2008-2017

AUDI SQ5 2014-2017

---
