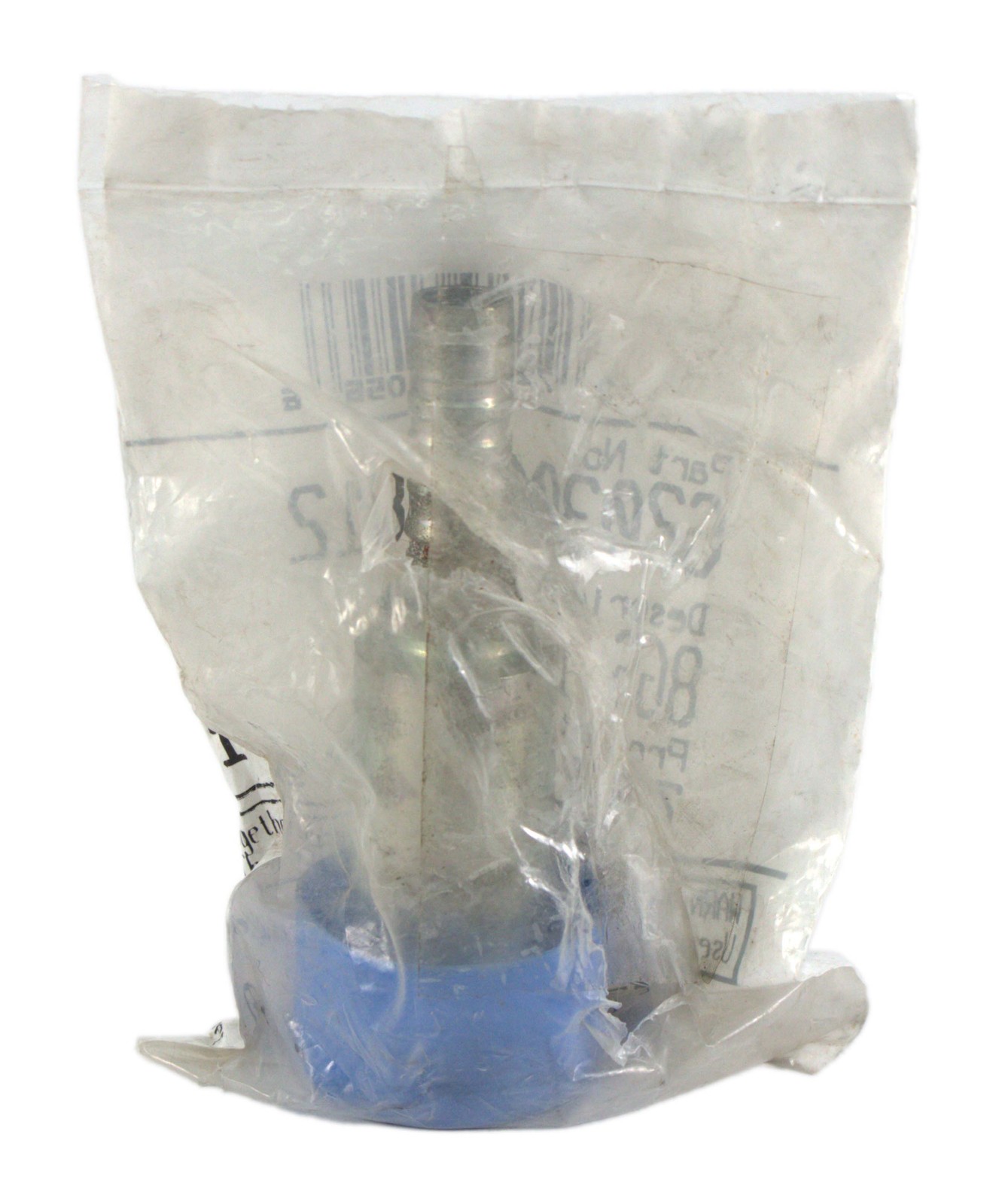

Largest Inventory of Factory Car Audio in the USA!Gates GlobalSpiral 1/2in Code 61 O-Ring Flange 5000 Max PSI Model ID G20300-0812 Gates
GlobalSpiral Code 61 O-Ring Flange
Gates GlobalSpiral no-skive coupling design provides superiorperformance for extremely high-pressure, high-impulse spiral-wirehydraulic hose applications. The innovative two-piece, no-skive designallows for fast, tailor made assemblies. Eliminating the skivingprocess drastically reduces assembly time, labor, odor, fabricationerrors and contamination of the fluid power crimping for better tip retention
Tested to an industry-leading 1,000,000 impulse cycles
Temperature Capacity +250 F Deg, for longer assembly life
Environmentally-friendly TuffCoat plating for 347 percent bettercorrosion resistance than the SAE Standard
GlobalSpiral couplings have been tested to industry-leading one millionimpulse cycles at +250 Deg F (+121 Deg C) without causing stress cracksin the hose tubing.
Machined from unleaded steel bar stock, GlobalSpiral thread ends areable to handle working pressures up to 6,000 psi.
Coated with TuffCoat plating - more than five times better corrosionresistance than SAE ASTMB117 072053402339
Unit of Measure: Each
Coupling Description: GlobalSpiral Code 61 O-Ring Flange
Industrial Description: 8GS-12FL
Inside Diameter: .5 IN
Hydraulic Hose Recommendation: All Gates MegaSys Four andSix-Spiral Wire Hydraulic Hose Up to 8,000 psi
Maximum Working Pressure: 5000 PS
Flange Thickness: .27 in
Flange Diameter: 1.5 IN
Cut-Off Length: 2.38 IN
Length: 3.86 IN
Inside Diameter: 12.7 MM
Flange Thickness: 6.9 MM
Flange Diameter: 38.1 MM
Cut-Off Length: 60.5 MM
Length: 98.1 MMPart Interchanges:
Aeroquip 1B12FL8
Parker 11571-12-08
Parker 11571-12-8
Parker 115HY-12-8
Dayco 100082
Weatherhead 43008EG12
Weatherhead 43008UG12
Goodyear 28320-0812
Goodyear 29320-0812
Goodyear S4-FL-0812
NAPA G20300-0812
Kurt Hydraulics C61-08-12-WCalifornia Proposition 65 Warning California residents see Prop 65Warning(s)For extremelyhigh-pressure, high-impulse spiral-wire hydraulichose applications. - Brand New Item -Part Number: G20300-0812
90 DayWarranty FactoryRadio is proud to introduce our line of liquidation listings! These arenew items that are priced to move. Any cosmeticblemishes are noted in the condition field so please keep that in mindwhen purchasing. All items are guaranteed to be in 100% working orderwith our standard 30 day return and 90 day warranty so you’ll still becovered by our top-notch customer service. We’ll be adding new listingsto this line every day at limited quantities so be sure to bookmark andkeep watch for more great is a Gates GlobalSpiral Code 61 O-RingFlange.This item is in NEWcondition, with allitemsincluded unless otherwiselisted. Please see photos for details.
As you can see from our reviews, we package and ship everything verycarefully. If you have any questions about any item listed, please donot hesitate to reach out. Thank You for Your Purchase!
