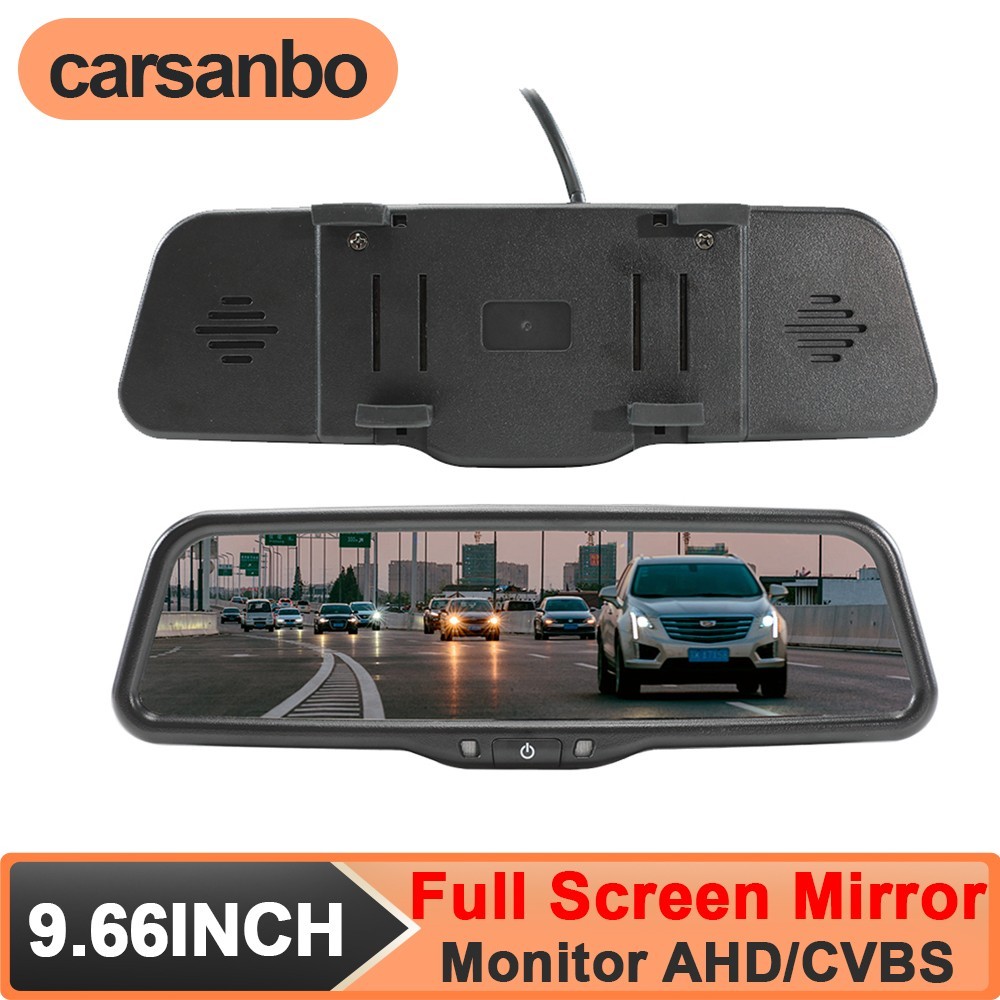

9.66inch Universal Digital Rearview Mirror Monitor/AHD 1080P
Product Features:
- Clip it onto the original rearview mirror, No DVR function
- 2CH AHD 1080P HD pixel input
- Built in automatic screen brightness adjustment function (It\'s not about changing the reflectivity of the glass)
- The image can be moved up and down
- Support mix input (CVBS or 720P AHD,1080P AHD)
- Support DC12V-24V input
- RCA connector
- It works perfect for Dual lens camera
Product Parameters:
- 9.66inch Universal Rearview Mirror Monitor Support AHD/CVBS video signal input
- Screen Size: 9.66inch IPS panel
- Pixel of Panel: 1280x320
- Video Input: 2 ways (Support 1080P and 720P AHD and CVBS signal camera)
- Video Input Connector: RCA
- Power Supply: DC12V-24V
- OSD Menu Control: keep press button on mirror
- OSD menu can set Brightness, contrast, color,
- Vertical cutting (Move the screen up and down)
- Reverse reference line on/off, automatic adjust monitor brightness on/off
- The screen can turn on/off by button at CH2 video
- CH1 for digital rearview camera, CH2 for reverse camera
- CH2 will display when car reverse
- Display Rate: CH1(4:1)full screen, CH2(16:9)
- Built in reference line when switch CH2 video
- Install Type: clip it onto the original rearview mirror.
Universal design mirror monitor, you can keep your original car mirror and Upgrade to a rearview mirror display with a 9.66-inch high-definition screen.
The monitor size as below, please confirm your car mirror side before order.
The image can be moved up and down
By setting the menu, we can quickly adjust the screen to the angle you need.
The screen can turn off by button at CH2 camera video
Users can turn on or off the screen display according to their usage needs. In the CH2 video screen, short press the power button to turn off the screen, and the rearview mirror display will be in mirror mode.
Reverse mode automatically switches perspective
If the camera is directly connected, when the car is driving normally, the full screen will display the camera\'s image. When the car is reversing, the image will automatically switch to 16:9 mode，and the reference line will be turn on ,In reverse mode, pressing the button can adjust the spacing between the rulers.
RCA connector
The RCA head is connected to a regular car camera, and the camera needs to be powered separately. The following figure shows its corresponding wiring methods.
Full set photo
- 1pcs 9.66inch monitor
- 1pcs power cable
