Details
Note: No programming required!
OEM Part Number:
14480-EZ40A, 14480EZ40A, 14480 EZ40A
14480-EZ40B, 14480EZ40B, 14480 EZ40B
14480-EZ40C, 14480EZ40C, 14480 EZ40C
05328768
Fit For the Following Models:
For Nissan TITAN XD 5.0L V8 2016-2019
Note: Please compare your item carefully with photo and OE Number to avoid mistake!!!
Installation steps:
1. After the engine has cooled down, remove the old turbine actuator.
2. Replace with a new turbine actuator, ensuring the connection between the turbine actuator output shaft and the turbine swing arm is securely fastened.

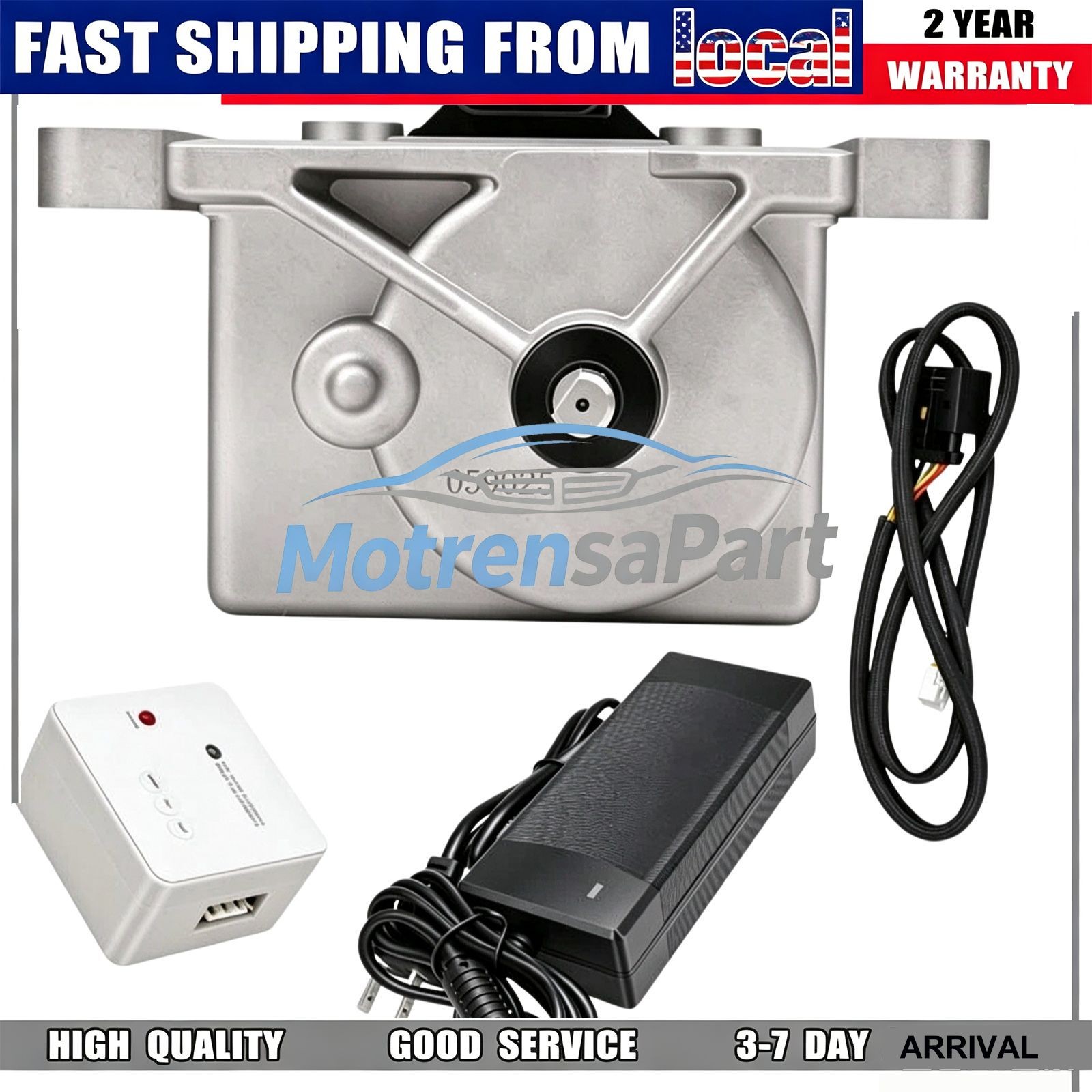

3. Using the turbine calibrator and power supply included with the product, connect the wiring harness to the power supply in sequence, and then press the CLEAR and CAL buttons on the white calibrator in sequence.
