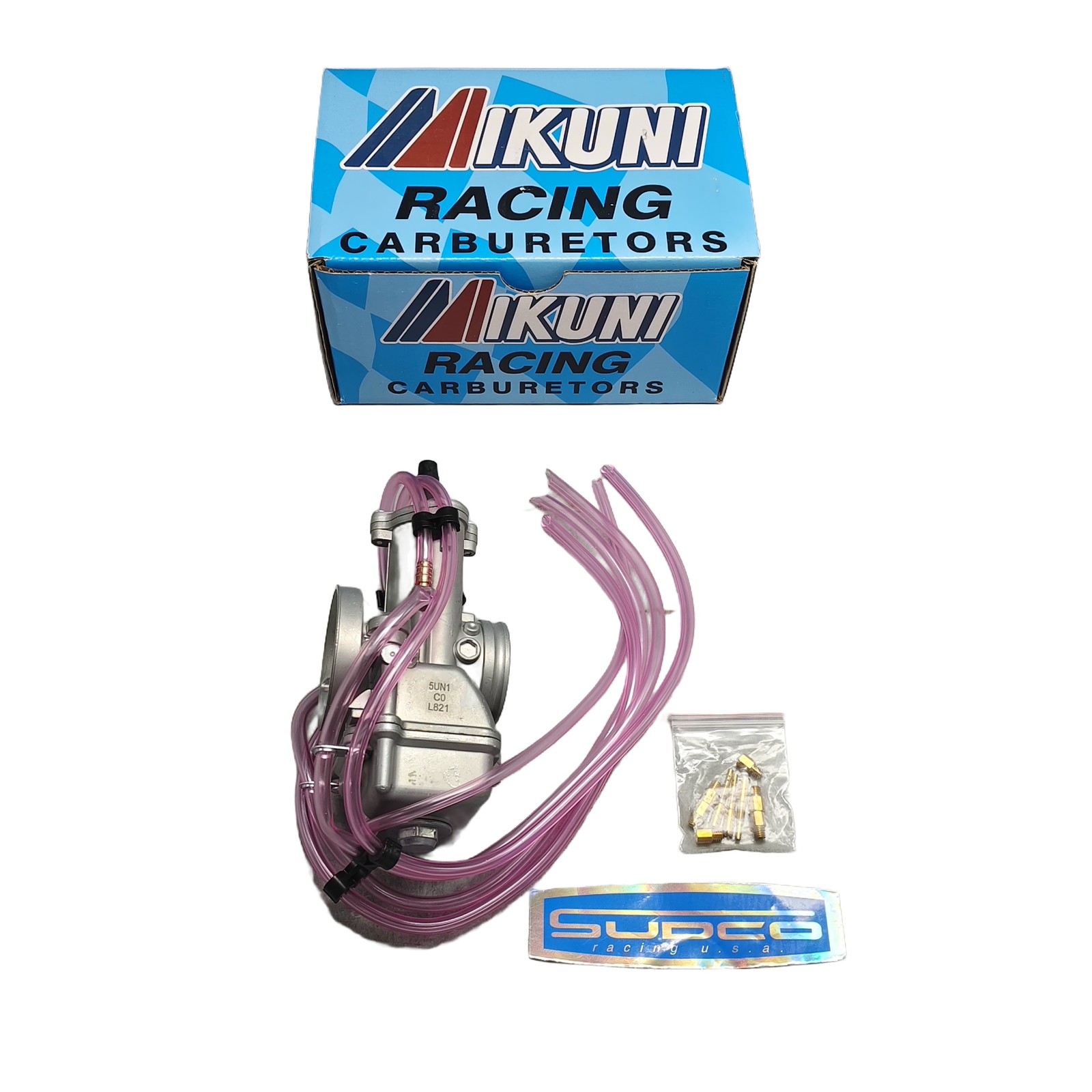

36mm Mikuni TMX Flat Slide Carburetor – Custom TunedFeatures
High-quality aftermarket replacement carburetor
Personally custom tuned before shipment
36mm Mikuni TMX flat-slide design
High-flow smooth-bore venturi
Crisp throttle response
Excellent low-end and mid-range performance
Strong top-end power
Includes spare main and pilot jets for fine tuning
Durable cast aluminum Type: Mikuni TMX Flat Slide
Venturi Size: 36mm
Intake Bore: 36mm
Engine Side (Spigot OD): 44mm
Air Filter Side (OD): 62mm
Overall Length: Approximately 164mm
Overall Width: Approximately 76mm
Overall Height: Approximately 170mm
Float Bowl Width: Approximately 88mm
Float Height: 20mm
Slide Cutaway: #7
Choke: Cable Operated
Idle Adjustment: External Thumb Screw
Air Screw: Adjustable
Main Jet Style: Large Round Hex
Pilot Jet Style: VM22/210
Mounting Style: Spigot Mount
Body Material: Cast Aluminum
Fuel Inlet: Left (2000–2001) – Direct replacement for the OEM 36mm Mikuni TMX (1996–2000) – Direct replacement for the OEM 36mm Mikuni TMX carburetor.
Yamaha Notes:
2001 was the transition year from the 36mm TMX to the 38mm TMX. Some early-production 2001 models may have been equipped with the 36mm TMX, while later models received the 38mm (1995–2002) – Direct replacement for the OEM 36mm Mikuni TMX (1996–2000) – Direct replacement for the OEM 36mm Mikuni TMX (1998–2008) – Direct replacement for the OEM 36mm Mikuni TMX carburetor.
CR125 (1999–2008) – Direct replacement for the OEM 36mm Mikuni TMX carburetor.
Package Includes
This aftermarket 36mm Mikuni TMX flat-slide carburetor is an excellent replacement for motorcycles originally equipped with a 36mm TMX carburetor. Every carburetor is personally inspected and custom tuned before shipping to provide a reliable baseline setup, helping you spend less time tuning and more time riding.
