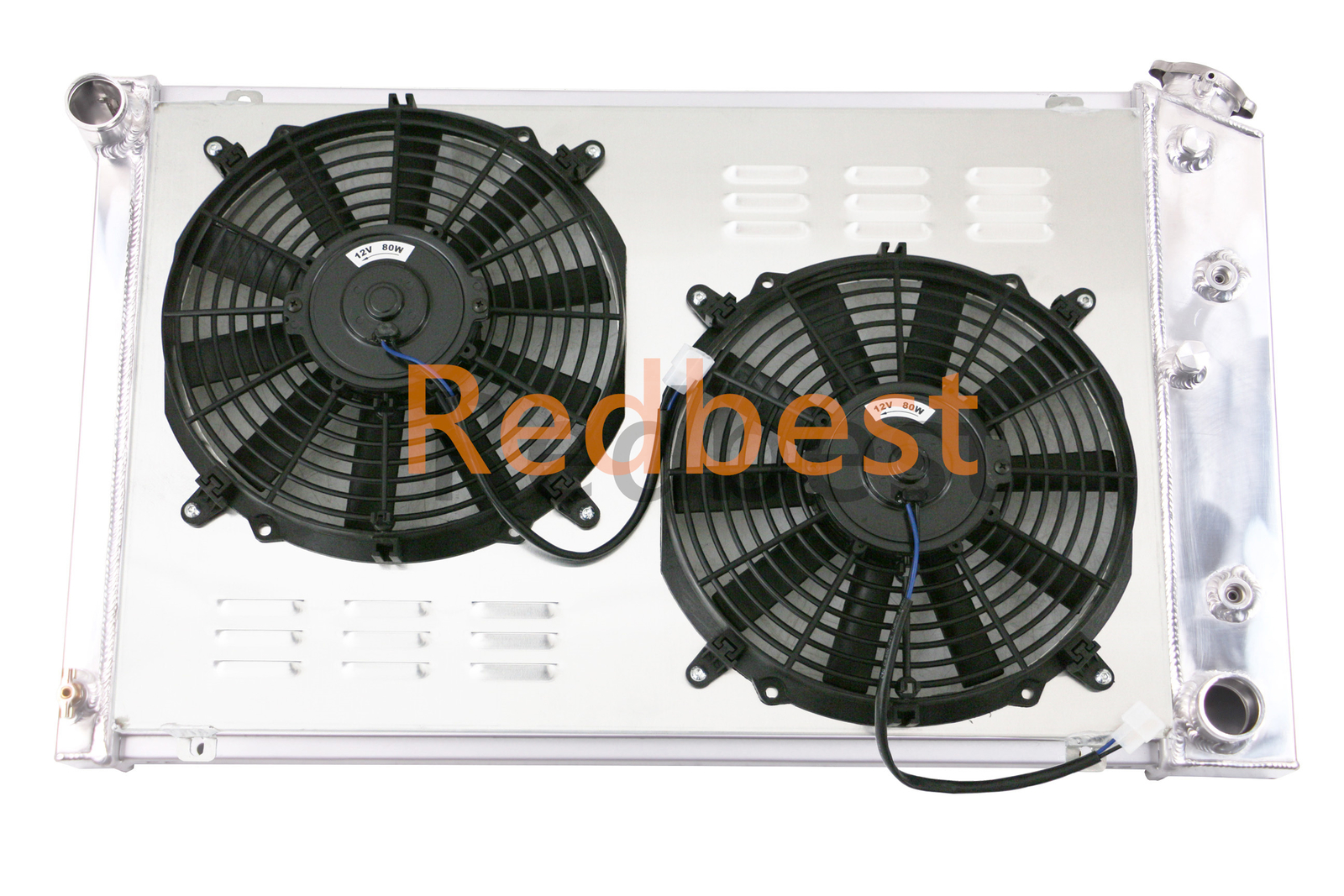

CU162 3 Row Radiator+Shroud+Fan Fit Chevy 1978-1987 Monte Carlo 1970-1981 Camaro
Package include：
1 X 3 rows Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
2 X 12\" Fan (Includes mounting kits)
Radiator Configuration:
Core Size: 26-1/4\" H x 17\" W
Overall Size: 18-5/8\" H x 31-5/8\" W
Upper Inlet 1-1/2\" located on the Driver side
Lower Outlet 1-1/2\" located on the Passenger side
Transmission Oil Cooler:Included,G1/4
New radiator cap include
3 Rows Of Tubes
DPI162
Note:(if you need 28\"wide or 21\"wide parts, we also have them. Please check your size before you order it .this part easy to buy by mistake! )
FAN SIZE:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Install Note :please remove the EPE between the radiator and Shroud
Fitment :
For the year and models, please check the compatibility.
For 1970-1981 Chevy Camaro
For 1978 1979 1980 1981 1982 1983 1984 1985 1986 Buick Regal
For 1978-1987 Chevy Monte Carlo
For 1978 1979 1980 1981 Cadillac
For 1978-1987 Oldsmobile Cutlass Supreme
For 1978 - 87 El Camino
For 1978-1983 Chevy Malibu
For 1975-1979 Chevy Nova
For 1976-1980 Chevy SuburbanFor
For 1980-1985 Chevy Impala
For 1978-1987 Chevy Monte Carlo
For 1970-1985 Chevy G Series
For 1970-1985 Chevy/GMC C Series
For 1970-1987 Buick/Chevy/Olds/Pontiac Cars & Trucks
For 1978-1986 Pontiac Grand Prix
For 1975-1979 Chevy Nova / Chevy Camaro 1970-1981
NOTE: our shop has 4 ROWS radiator or separate shroud and fan for sale and fan relay kit, welcome to purchase!
We have warehouses in CA, NJ,GA which can guarantee the fast delivery to any city in United States
We are a professional manufacturer of radiators, accepting custom. ! Welcome to consult and purchase！
Description:
Our Radiator is made of AA5052 aircraft aluminum. It’s different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series. More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
