Specification:Condition:newEngine Type: Gy6 Single Cylinder 4-StrokeEngine Oil Type: Sf15w-40 Not Come with Oil.Carburetor Modelpd24jCarburetor Typehorizontal Vacuum CarburetorSpark Plug Modela7tcIgnition TypecfwCooling: Air CooledDisplacement: 150ccMax Power(Kw/R/Min): 6kw/7500r/MinRated Power(Kw/R/Min): 5.2kw/7000r/MinMax Torque(N.m/R/Min):7.6n.m/6500r/MinMin. Stable Idle Speed1600±150r/MinPiston Diameter:57.4mmPiston Stroke: 57.8mmBore & Stroke2.26\" X 2.28\" (57.4mm X 57.8mm)Compression Ratio: 9.2:1Fuel No.>=87#Lubrication Capacity0.26 Gallon (1200ml)Clutchshoe-type Automatic Centrifugal Dry ClutchCylinder Working Volume0.03 Gallon (149.6ml)Transmission:cvtSpeed: 8 PolesIgnition System: CdiStart Method: Electric/KickInstallation Instruc
For 150CC 4-Stroke Complete Engine GY6 Scooter ATV Motor CVT Long CaseNote: The product was tested before leaving the factory, there is a little oil left in it. Long-distance transportation may lead to oil leakage. If there is no damage, please feel free to use it. Type: Gy6 Single Cylinder 4-Stroke
Engine Oil Type: Sf15w-40 Not Come with Oil.
Carburetor Modelpd24j
Carburetor Typehorizontal Vacuum Carburetor
Spark Plug Modela7tc
Ignition Typecfw
Cooling: Air Cooled
Displacement: 150cc
Max Power(Kw/R/Min): 6kw/7500r/Min
Rated Power(Kw/R/Min): 5.2kw/7000r/Min
Max Stable Idle Speed1600±150r/Min
Piston Diameter:57.4mm
Piston Stroke: 57.8mm
Bore & Stroke2.26\" X 2.28\" (57.4mm X 57.8mm)
Compression Ratio: 9.2:1
Fuel No.>=87#
Lubrication Capacity0.26 Gallon (1200ml)
Clutchshoe-type Automatic Centrifugal Dry Clutch
Cylinder Working Volume0.03 Gallon 8 Poles
Ignition System: Cdi
Start Method: Electric/Kick
Installation Instructions:not Included
Brand: Unbranded
Kick Start Oil Pump: Reduces the Wear of Friction Pairs and Prolongs the Engine Service Life.
Aluminum Cylinder Head & Body: Improves the Heat Dissipation Capability, Cuts the Weight and Increases the Torque of the Engine.
Crank Shaft:the Engine Is Low Speed with High Torque and Has Large Diameter Bearings for Crankshaft Connecting Rod, Increasing the Reliability of the Bearings.
Lubricating Oil Strainer: Helps Removing Solid Contamination from Lubricating Oil, Largely Reducing the Wear of Friction Pairs and Prolonging the Engine Service Life.
Cvt: Cvt Consist Mainly of 2 Transmission Pulleys and 2 Transmission Belts. It’s Compact, Simple Design Offers Seamless Shifting Between an Unlimited Amount of Varying Gear Ratios, Allowing a Smooth Rate of Acceleration.
Forced Air-cooled Engine: There Are Metal Fins Covering the Outside of the Cylinders and the Heat Generated by the Engine Is Released Directly into the Air When the Cooling Fan Blows Air over Fins. It Has the Advantages of Simple Structure, Light Weight, Wide Adaptability to Climate Change, Rapid Start up and No Need of Radiator.
Fit for:1.Compatible with 150cc Gy6 11\" Long Box Engine Size Scooters and Vehicles.(Gy6 125cc and 150cc Motors Come in Different Sizes. the Difference Is in the Length of the Rear Swing Arm.)
2.110cc-150cc Atvs with Gy6 Engines Are Compatible with This Item. It Also Fits for Most China Made 150cc Vehicles.
Package Includes:

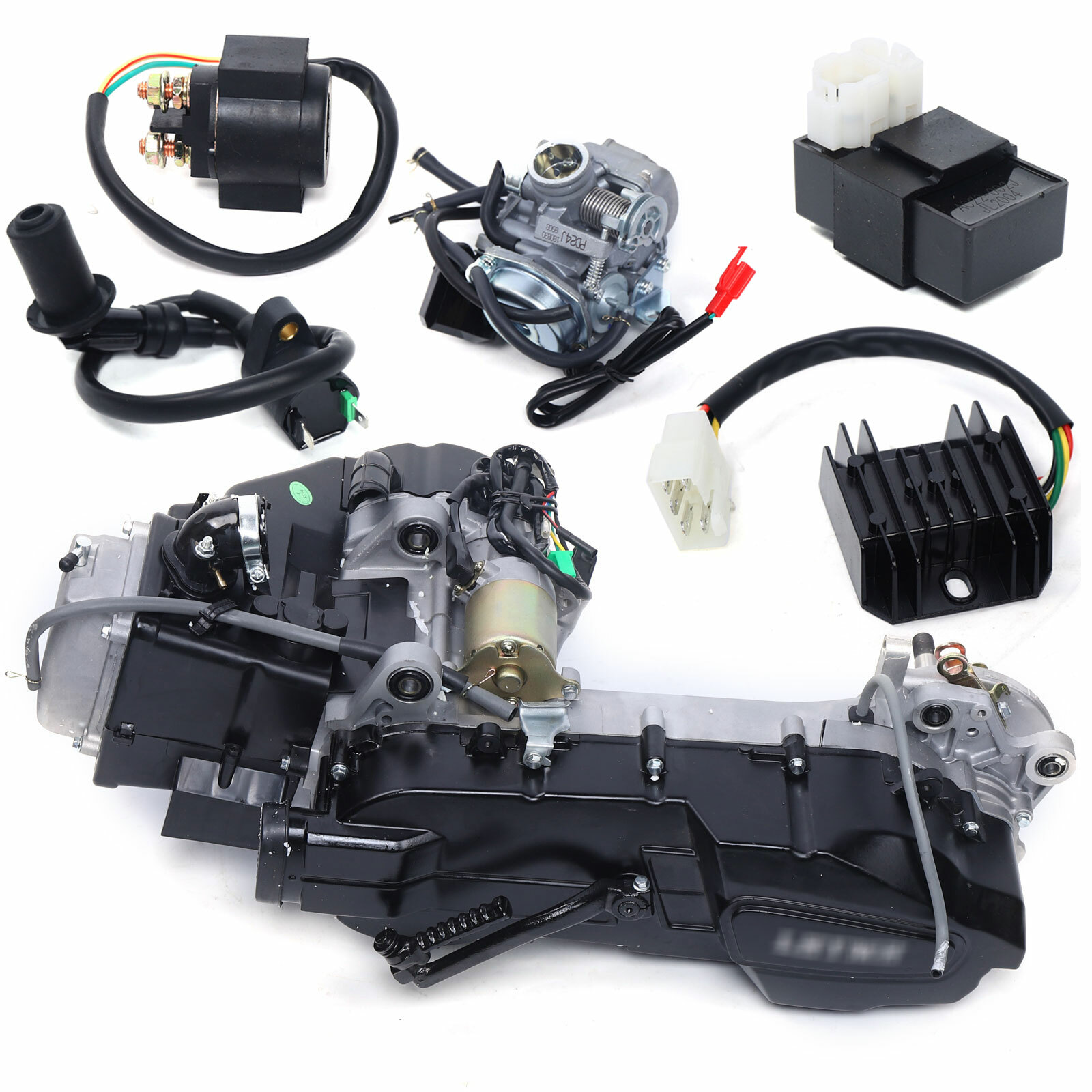

· 1x Complete Engine
(Carburetor, Cdi, Starter Solenoid, Coil,Kick Start Lever )
Note:
1.Installation Manual Is Not Included
2.Professional Installation Is Highly Recommended
3.Add Engine Oil Before UseThis Machine Is 11\" Long Case
