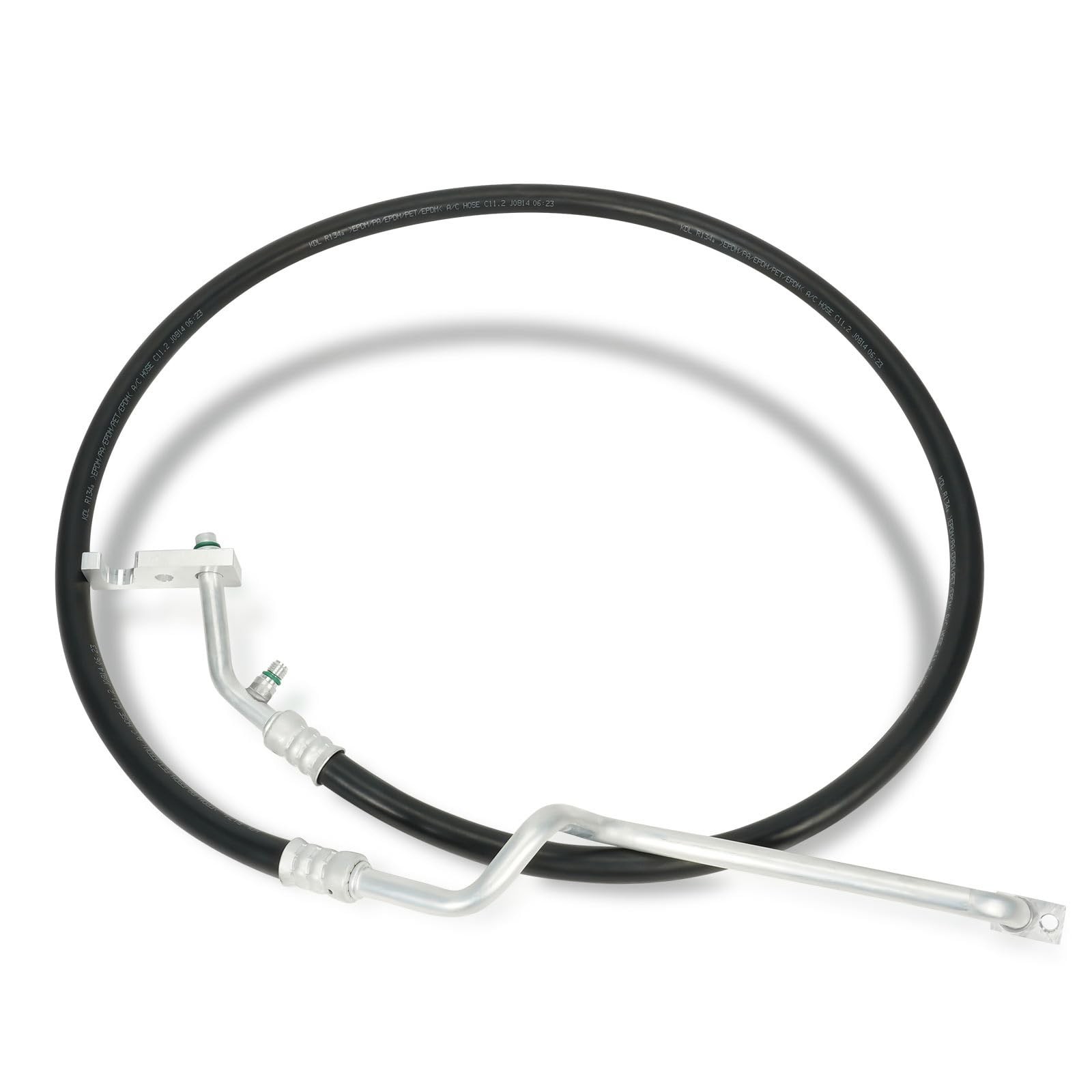

A/C Discharge Hose Assembly
Compressor-to-Condenser Line for Select Peterbilt and Kenworth Trucks
Fully Assembled • Pressure Tested • Direct Replacement Design
Restore proper refrigerant flow between the A/C compressor and condenser with this high-pressure discharge hose assembly, designed for compatible Peterbilt and Kenworth truck applications.
The hose arrives fully assembled and pressure tested for dependable installation. Its application-specific fittings and routing are intended to replace a leaking, cracked, damaged or deteriorated original discharge line.
Product Highlights
High-pressure A/C discharge hose - Connects the compressor to the condenser
- Compatible with select Peterbilt and Kenworth trucks
- Fully assembled for direct-replacement-style installation
- Pressure tested before shipment
- Durable metal fittings and reinforced hose construction
Part and Interchange Numbers F50-6242-1475
09-1406
683-T9379
T9379
683-2648
Interchange numbers are provided for identification purposes. Compare the original hose routing, fitting angles, connection sizes and part number before ordering.
Vehicle Compatibility Make Application Peterbilt Select Truck Models Kenworth Select Truck Models Fitment Verification Required
Heavy-duty truck A/C hose configurations can vary by model, engine, cab, production date and installed HVAC system. Verify the original part number and physical hose configuration before purchasing.
Product Features
Aftermarket A/C discharge hose assembly - Designed for compressor-to-condenser refrigerant flow
- Compatible with select Peterbilt and Kenworth trucks
- Replaces multiple heavy-duty truck reference numbers
- Reinforced hose construction
- Durable crimped fittings
- Stable structure for long service life
- Fully assembled and ready for installation
- Pressure tested for leaks and structural integrity
- Direct-replacement-style fit on compatible applications
- No hose fabrication normally required when correctly matched
- Silver and black finish
Product Specifications Product Type A/C Discharge Hose Assembly Connection Compressor to Condenser Pressure Side High-Pressure / Discharge Side Primary Part Number F50-6242-1475 Compatible Makes Peterbilt / Kenworth Color Silver and Black Assembly Status Fully Assembled Pressure Tested Yes Approximate Item Weight 1.00 lb Approximate Package Weight 1.65 lb Condition New Common Reasons for Replacement
Refrigerant leaking from the discharge hose - Cracked or deteriorated rubber hose section
- Damaged or corroded metal fittings
- Oil residue around hose crimps or connections
- Loss of A/C cooling performance
- Physical damage caused by heat, vibration or abrasion
- Failed pressure or vacuum test
Similar symptoms may also be caused by a failed compressor, condenser, O-ring, fitting, expansion valve or other A/C system component. Proper diagnosis is recommended.
Package Includes
1 A/C Discharge Hose Assembly - O-rings are included only when shown in the listing photographs
- Mounting brackets and clips are included only when pictured
- Refrigerant is not included
- Only the components shown in the listing photos are included
Installation Recommendations
Professional A/C installation is strongly recommended. - Recover refrigerant using approved equipment before opening the system.
- Compare the new hose with the original before installation.
- Inspect all fittings, O-rings and connection surfaces.
- Replace sealing O-rings whenever required.
- Lubricate compatible O-rings with approved refrigerant oil.
- Route the hose away from hot, sharp or moving components.
- Do not twist, kink or overstress the hose during installation.
- Evacuate the system and perform a leak test before charging.
- Recharge with the correct refrigerant type and quantity.
Important Fitment Notice
Do not purchase based only on the Peterbilt or Kenworth make. Hose assemblies may differ according to model, year, engine, cab configuration and HVAC system.
Compare the original part number, total length, hose routing, fitting orientation and connector dimensions before ordering.
HIGH-PRESSURE A/C DISCHARGE HOSE ASSEMBLY
Pressure-tested compressor-to-condenser replacement for compatible heavy-duty trucks.
