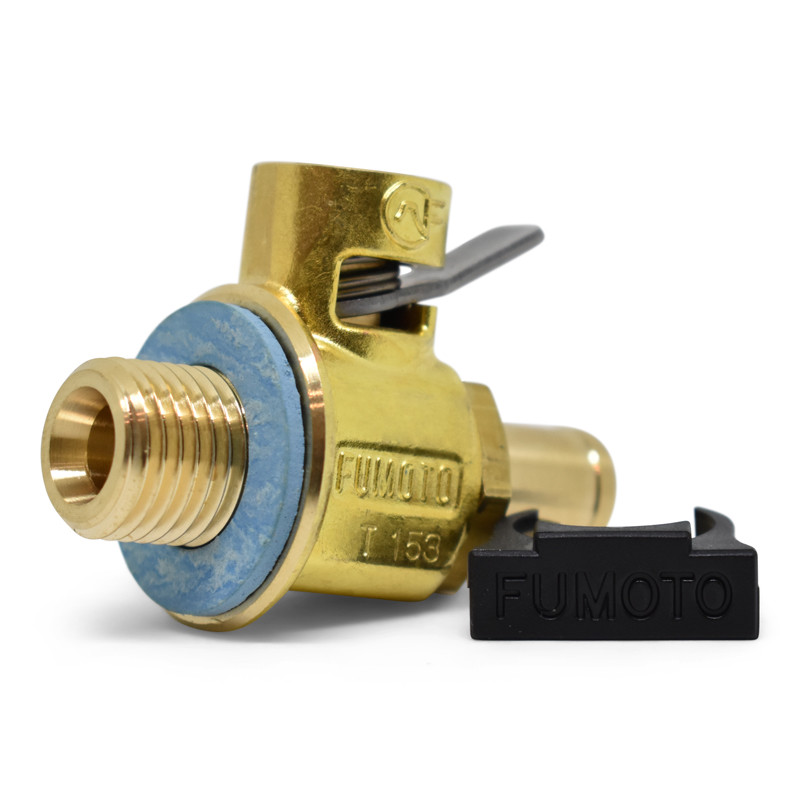

Long Nipple Fumoto Oil Drain Valve with Lever Clip
NOTE: The FN series are NOT RECOMMENDEDfor engines with low ground clearance.
The Fumoto Engine Oil Drain\'s spring assisted ball valve replaces your standard issue oil drain plug and makes oil changes easier,cleaner, and less time consuming. Benefits of installing Fumoto valve include:
- One Touch Operation
- Clean and mess free oil changes
- Avoids contacting hot oil
- Eliminates stripped threads and frozen plugs
- Ideal for sampling analysis
Incorporating Fumoto\'s most compact ball valve,Fumoto\'s F series valves are designed to fit cars, light trucks, vans, and select commercial engines.Constructed of forged brass and stainless steel to exacting Japanese specifications,F-series valves are designed to provide a lifetime of dependable and reliable service.
Installation
- Remove original drain plug and drain oil into appropriate receptacle.
- Insert Engine Oil Drain Valve and gasket into drain plug port and tighten.
- Make sure valve is closed and refill crankcase.
*A good rule of thumb is to install the valve by hand and then tighten an additional 1/8 - 1/4 turn with a wrenchon the body. Do not over tighten.
**Some oil pans are designed with a recessed drain hole which may prevent the valvefrom being installed properly. If the valve cannot be tightened all the way without hitting the oil pan wall,do not install the Drain Valve on your vehicle. Adapters are available for some models.
Operation
- To open lift control lever and turn counter-clockwise 90 degrees.
- To close simply turn the lever clockwise 90 degrees until locked in original position.
Safety
Drive carefully at all times, and if you run over any foreign object on the road pull over and check the valve for any damage or leak. N-Series valve (with nipple to accept hose) is not recommended for passenger cars with low clearance.
NOTE: The FN series are NOT RECOMMENDEDfor engines with low ground clearance.
Lifetime Limited Warranty
We offer a LIFETIME LIMITED WARRANTY on its product, against faulty workmanship and/or material to the original purchaser (with proof of purchase). For any defective product, FUMOTO will replace the product at no charge. This warranty does not cover any damages due to misuse, abuse, negligence or accident. This warranty is valid only in the United States and Canada.
Vehicle Chart
To use our size chart, visit us at FUMOTO ONLINE STORE.
