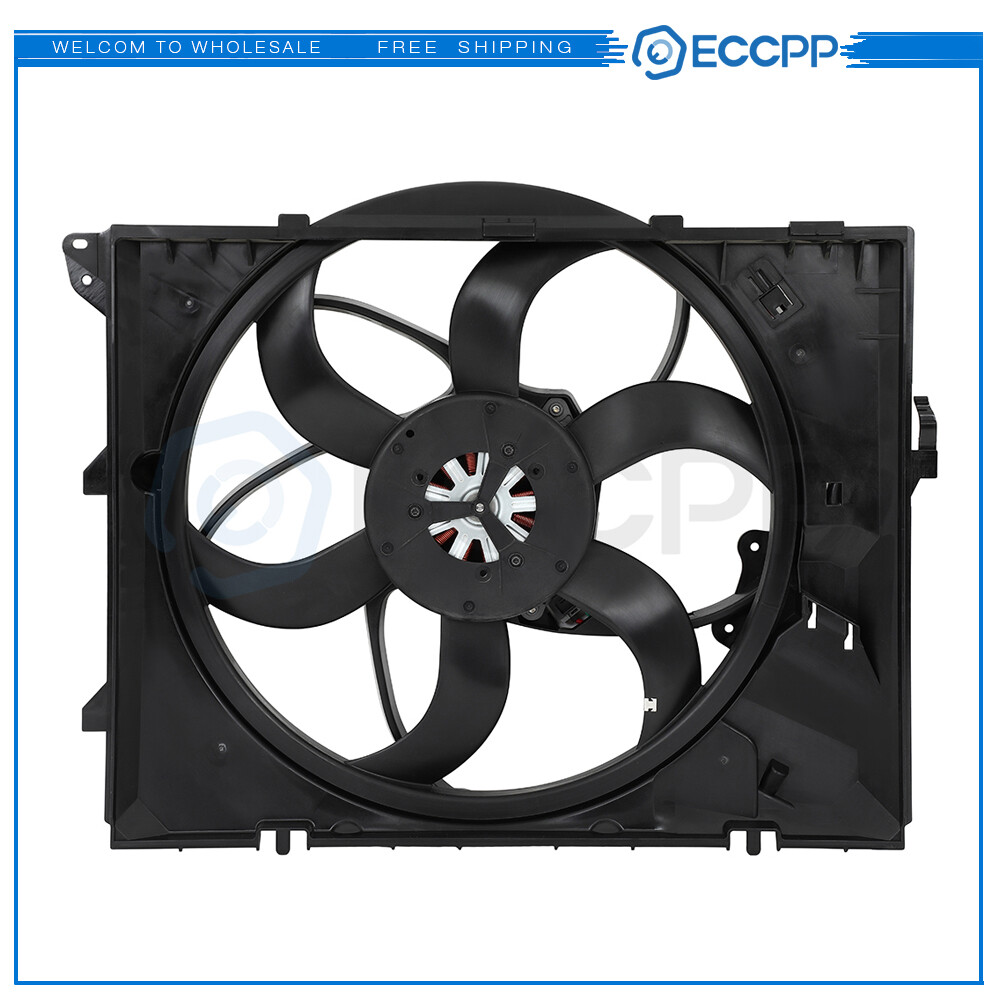

Fitment:2008-2013 BMW 128i2006 BMW 325i2006 BMW 325xi2007-2013 BMW 328i2009-2013 BMW 328i xDrive2007-2008 BMW 328xi2006 BMW 330i2006 BMW 330xi2009-2011 BMW cooling fanis an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan. Electric Radiator Cooling Fan Assembly For 07 08 09 10 2011 2012 2013 BMW 328i
Fitment:
2008-2013 BMW 128i
2006 BMW 325i
2006 BMW 325xi
2007-2013 BMW 328i
2009-2013 BMW 328i xDrive
2007-2008 BMW 328xi
2006 BMW 330i
2006 BMW 330xi
2009-2011 BMW cooling fanis an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan.
Step 1: Locate the Radiator Cooling Fan
Locating the radiator cooling fan is the first step in replacing it. Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame. Under the engine and the radiator is a sticking cylinder that is encased in a small casing. That is the radiator cooling fan motor that you may need to change or repair other than the radiator cooling fan itself.
Step 2: Disconnect the Power Supply
On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motor and disconnect it. Using two masking tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.
Step 3: Remove the Fan Housing
Using a crescent wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well. A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car hood. Hold the housing firmly and lift it off your engine compartment. Be careful in removing the fan housing to avoid damaging it. Place the fan housing on a clutter-free working table.
Step 4: Remove the Radiator Cooling Fan and the Fan Motor
The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver.
Step 5: Attach the Replacement Radiator Cooling Fan and Fan Motor
Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3. Connect the fan motor into the car electrical system using the electrical tape guide you made in step 2. You just learned how to replace your radiator cooling fan as well as your radiator cooling fan motor.
Item SpecificsBrand ECCPPManufacturer Warranty 1 YearManufacturer Part Number EC17136501CPFitment Type Direct ReplacementPlacement on Vehicle Front,Driver SideType Cooling Fan,Single FanApplicable Regions USInterchange Part Number 76281,76291,Radiator Cooling Fan AssemblyOE Part Number 622980,FA70739,12v Electric car fanSuperseded Part Number BM3115117,76362,Engine Cooling FanPackage Include 1X Cooling FanCondition NewVoltage 12VPlug Type 3Note1 Only fits 3 Prong ConnectorNote2 Fits Manual trans, It's not an automated trans Item SpecificsBrand ECCPPManufacturer Warranty 1 YearManufacturer Part Number EC17136501CPFitment Type Direct ReplacementPlacement on Vehicle Front,Driver SideType Cooling Fan,Single FanApplicable Regions USInterchange Part Number 76281,76291,Radiator Cooling Fan AssemblyOE Part Number 622980,FA70739,12v Electric car fanSuperseded Part Number BM3115117,76362,Engine Cooling FanPackage Include 1X Cooling FanCondition NewVoltage 12VPlug Type 3Note1 Only fits 3 Prong ConnectorNote2 Fits Manual trans, It's not an automated trans
- We accept multiple payment methods
PictureHot Item Front Wheel Hub Bearing Assembly For Chevy Impala Cadillac DTS Buick Lucerne FWD USD 41.37 For Universal 12V Low Pressure 5-9 PSI Electric Fuel Pump Installation Kit USD 17.58 Pair Manual Tow Mirrors for 1988-1998 Chevy GMC C/K 1500 2500 3500 Side Mirrors USD 75.15 Pair Tow Mirrors For 2007-2014 Chevy Silverado Sierra Power Heated LED Signal USD 140.75 2 Pcs Front Wheel Hub Bearings For Chevy Impala Buick Regal Lucerne LeSabre FWD USD 58.95 Shop CategoryStore Home Air Dryer Brake Dust Shield Car Tools◈Car Tools◈Electric Winch Tow◈Jack Stand◈Jumper Cable Catalytic Converter Cooling System◈AC Compressor◈Air Blend Door Actuator◈Blower Motor Resistor◈Condenser◈Coolant Tank◈Cooling Fan◈Evaporator◈Heater Support◈Thermostat Housing◈Water Pump◈Water Pump Impeller Copper Tube◈Brake caliper◈Brake drum shoe◈Brake lines kit◈Brake pad sensor◈Brake rotor pad◈Brake Shoe◈Power Brake Booster Crankshaft And Camshaft◈Camshaft & Crankshaft◈Harmonic Banlancer◈Timing Chain Kit Drive Belt And Device◈Primary Drive Clutch◈Serpentine Belt Tensioner Drive Shaft And Half Shaft◈4 Pcs Wheel Hub Bearing◈ATV/UTV CV Axles & Parts◈CV Axle◈CV Axle Boot◈Driveshaft◈Rear Wheel Axle◈Wheel Hub Bearing◈Wheel Hub Bearing Knuckle◈Wheel Hub Centric Rings◈Wheel Spacers Engine Bracket Glue◈Engine Mount Engine Gasket & Cylinder Head◈Cylinder Head◈Cylinder Piston Gasket Kit◈Head Gasket Set Engine mount Fuel System◈Fuel Injectors◈Fuel Pump Assembly◈Fuel Tank Pipe & Cap◈Mass Air Flow Sensor◈Motorcycle Carburetor & Parts◈Oil Fuel Hose Fuel Vapor Charcoal Canister◈Vapor Canister Gas Distribution System◈Hydraulic Lifter & Rocker Arms◈Idle Air Control Valve◈Secondary Air Pump◈Throttle Body◈Turbocharger◈Valve Cover Home gardening◈Courtyard And Outdoor Supplies Ignition System◈Ignition Coil & Spark Plug◈Ignition Coils◈Spark Plug◈Wiring Harness Inner Parts◈Air Cleaner Box Assembly◈Air Filter◈Car Floor Mats◈Cargo Cover◈Center Console Arm◈Remote Key◈Sun Visor Lawn Mower Parts◈Blade◈Deck Kit◈other◈PTO Clutch◈Pulley◈Spindle Light products◈Exterior Lights◈Instrument Panel Lights◈Interior Lights◈LED Headlight Assembly A◈LED Headlight Assembly B◈LED Headlight Assembly C◈LED Headlight Assembly D◈Led Headlights◈Side/Cab Marker Lights◈Third Brake LightsNew List Item For 1994-1996 1997 Honda Accord Front LH RH Power Window Regulator With Motor USD 69.29 For 2002-2007 Subaru Impreza Power Window Lift Motor Front RH #742-803 USD 28.29 For HONDA Accord 4 Door 1997-1994 Front RH Side Window Regulator w/ Motor USD 44.29 For Chevrolet Malibu 1997-2003 Front Diver/LH Side Window Lift Motor USD 36.95 2 Rocker Panels For 2007-2013 Chevy Silverado GMC Sierra Crew Cab 4 Door USD 105.95 Electric Radiator Cooling Fan Assembly For 07 08 09 10 2011 2012 2013 BMW 328i Fitment:
2008-2013 BMW 128i
2006 BMW 325i
2006 BMW 325xi
2007-2013 BMW 328i
2009-2013 BMW 328i xDrive
2007-2008 BMW 328xi
2006 BMW 330i
2006 BMW 330xi
2009-2011 BMW cooling fanis an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan.
Step 1: Locate the Radiator Cooling Fan
Locating the radiator cooling fan is the first step in replacing it. Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame. Under the engine and the radiator is a sticking cylinder that is encased in a small casing. That is the radiator cooling fan motor that you may need to change or repair other than the radiator cooling fan itself.
Step 2: Disconnect the Power Supply
On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motor and disconnect it. Using two masking tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.
Step 3: Remove the Fan Housing
Using a crescent wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well. A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car hood. Hold the housing firmly and lift it off your engine compartment. Be careful in removing the fan housing to avoid damaging it. Place the fan housing on a clutter-free working table.
Step 4: Remove the Radiator Cooling Fan and the Fan Motor
The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver.
Step 5: Attach the Replacement Radiator Cooling Fan and Fan Motor
Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3. Connect the fan motor into the car electrical system using the electrical tape guide you made in step 2. You just learned how to replace your radiator cooling fan as well as your radiator cooling fan motor.
Item SpecificsBrand :ECCPPManufacturer Warranty :1 YearManufacturer Part Number :EC17136501CPFitment Type :Direct ReplacementPlacement on Vehicle :Front,Driver SideType :Cooling Fan,Single FanApplicable Regions :USInterchange Part Number :76281,76291,Radiator Cooling Fan AssemblyOE Part Number :622980,FA70739,12v Electric car fanSuperseded Part Number :BM3115117,76362,Engine Cooling FanPackage Include :1X Cooling FanCondition :NewVoltage :12VPlug Type :3Note1 :Only fits 3 Prong ConnectorNote2 :Fits Manual trans, It's not an automated trans Item SpecificsBrand ECCPPManufacturer Warranty 1 YearManufacturer Part Number EC17136501CPFitment Type Direct ReplacementPlacement on Vehicle Front,Driver SideType Cooling Fan,Single FanApplicable Regions USInterchange Part Number 76281,76291,Radiator Cooling Fan AssemblyOE Part Number 622980,FA70739,12v Electric car fanSuperseded Part Number BM3115117,76362,Engine Cooling FanPackage Include 1X Cooling FanCondition NewVoltage 12VPlug Type 3Note1 Only fits 3 Prong ConnectorNote2 Fits Manual trans, It's not an automated trans
