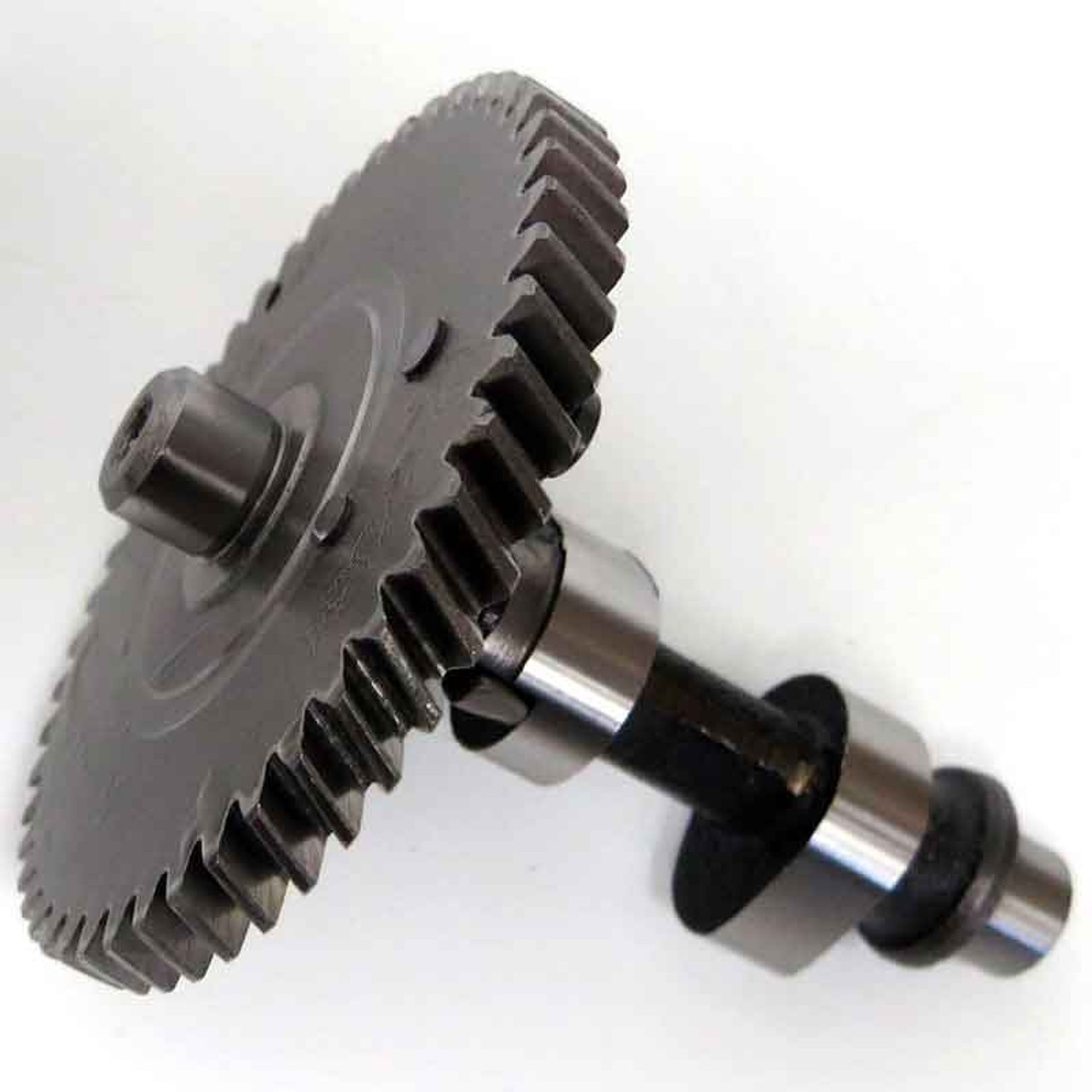

Dynocams 308 Grind, Welded Lobe Cam, Fits Predator 224Cc 308-224:
$146.50

DescriptionThe 308 is our most popular grind for modified classes.Easy on the valve train and has a very wide power band.Requires an upgraded spring package, billet rod, and billet flywheel.The lobes are welded for extra durability, extending the life of this cam.
The 224cc camshafts have .550\" main journal sizes. The cams have been clearanced between the lobes and feature narrow lobes. These modifications allow for rod clearance due to the 58mm stroke. The compression release is also thinner to clear the 58mm crank counter weight. These camshafts work with Harbor Freight Predator 224cc NON-Hemi and Tillotson 224cc engines.SpecsEngine: Harbor Freight Predator 224cc NON-Hemi, Ducar 224, Tillotson 224ccRecommended Class: Modified

DynoCams 308 Grind, Welded Lobe Cam, Fits Predator, Ducar 224 NON-Hemi

The 224cc camshafts have .550\" main journal sizes. The cams have been clearanced between the lobes and feature narrow lobes. These modifications allow for rod clearance due to the 58mm stroke. The compression release is also thinner to clear the 58mm crank counter weight. These camshafts work with Harbor Freight Predator 224cc NON-Hemi and Tillotson 224cc engines.
Specs
Engine: Harbor Freight Predator 224cc NON-Hemi, Ducar 224, Tillotson 224cc
Recommended Class: Modified
Target (MAX) RPM: 8200-8400
Spring Pressure (In / Ex): 32 lbs
Valve Lash (In/Ex): .003\"
Ignition Timing: 34 Deg BTDC

Profile
Intake Exhaust
Open: 53.5 BTDC 91.0 BBDC
Close: 91.0 ABDC 55.1 ATDC
Lift: .308\" .308\"
C/L: 108.0 ATDC 108.0 BTDC
DUR @ 50: 244.2 Deg 244.6 Deg
