Product Description:

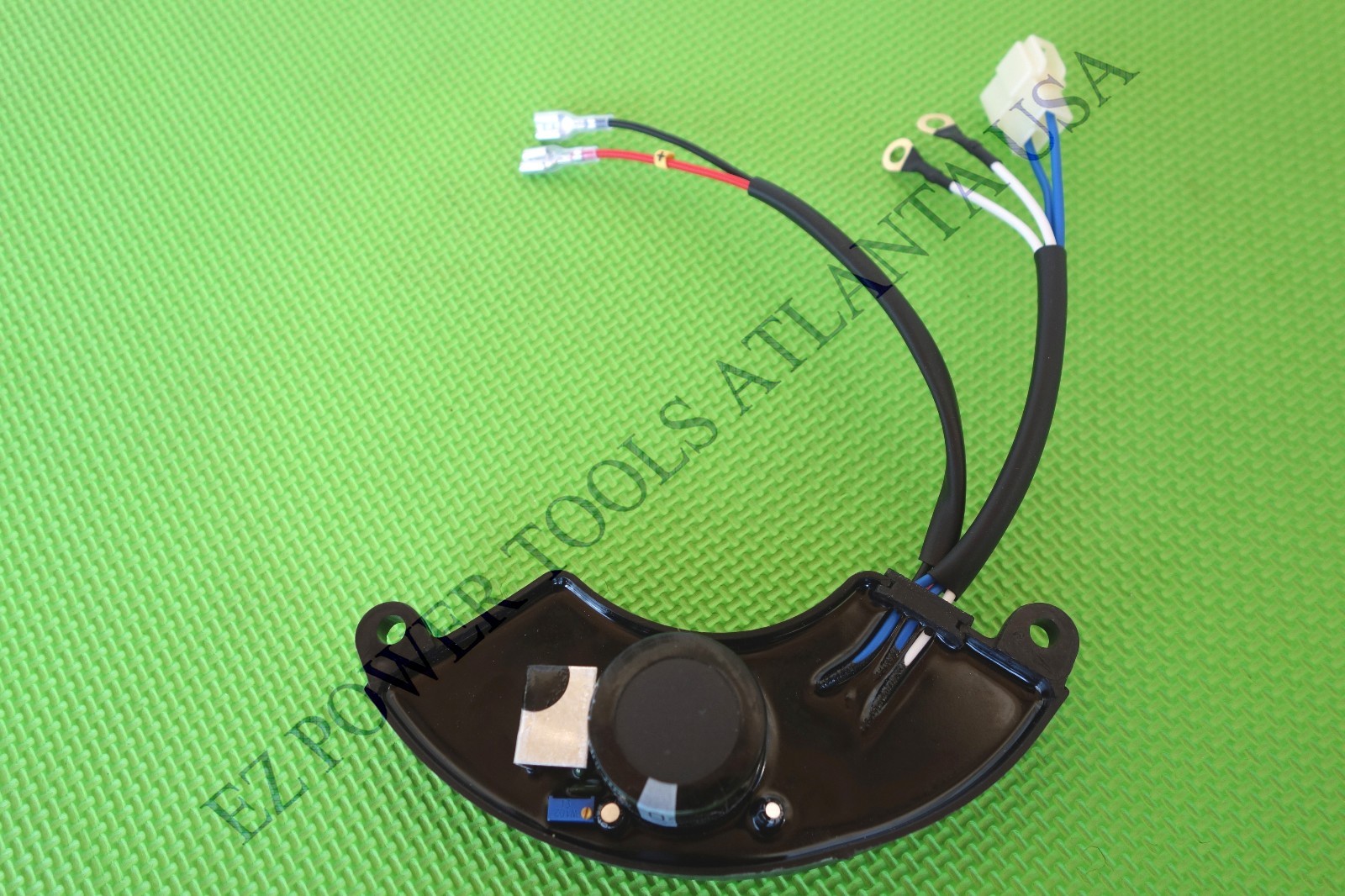

Premium Special 6-Wire Replacement 6.5KW to 8.5KW Adjustable Generator Automatic Voltage Regulator(AVR) forDuracell BrandedGas Generators.It can handle maximum surge power up to 10KW.Alternator Rear Cover/Stand & Carbon Brush Assembly NOT Included and Sold Separately.
Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out ofAtlanta, USAandEDT is about 1 to 3 business daysfor delivery in most areas of continental states.
Packing Contents: 1 X AVR-DGG7510K-S.Special Note:
1)Ahigher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used fora generator of higher power output.
2)If our AVR is out of adjustment for your generator, please MANUALLY turnclockwise or counter-clockwise a small bronze screw (potentiometer) in a blue rubber part toreach your desirable power output. Clockwise turning is for increasing andcounter-clockwise turning for decreasing voltage output. If this does not help you out, please contactwith us for tech support.3)A different AVR may be used on the same Duracell branded portable gas generators. Please double check your OEM AVR type before you place an order with us. If you\'re not sure of which type you need, please contact with us for tech support.Part Number:
AVR-DGG7510K-S.
Product Features:
- Built-in Full-Wave Output Bridge Rectification.
- Voltage Output Increase with Loading.
- Stable Voltage Output with Negative Voltage response.
- Over Voltage, Over Current and Short Circuit Protection.
- Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.
Technical Specifications:
- Maximum Output: DC 90V 2.5A.
- Excitation Voltage: 90V.
- response Voltage: 16 ~ 20V.
- Frequency: 50/60Hz.
- AC Voltage Output: 120V/240V.
- Auto Voltage Adjusting Accuracy: ≤ ±1%.
- Maximum Temperature Rise: 130C or 266F.
- Continuous Working Time: ≥ 20 Hours.
- Installation-Center Distance: 99 ± 1mm (about 3 15/16 in).
Shipping:
We ship worldwide. Please contact us and confirm international shipping & handling fee for shipping out of USA before you place an order with us.Warranty:
We warrant our PRODUCTS against manufacturer defects in materials, workmanship and finish under normal use and service for three (3) months from the original date of purchase. Please retain the dated invoice as evidence of the date of purchase. You will need it for any warranty service. Return:
Ifyou are not satisfied with our items and want to return to us, please contact us for a Return Material Authorization (RMA) number within 30 days of receipt before you arrange for return. We DO NOTaccept any return without RMA number. Non-authorized returns will be refused and sent back to YOU at your cost. We do not take return after 30 days of receipt of our product. We offer free replacement and exchange service for the goods after 30 days of receipt.
Customers are responsible for all return shipping charges incurred. Shipping and handling fee is NON-REFUNDABLE under any circumstances.
Payment:
We take credit card payment for domestic customers in USA only. Payment through Paypal is also acceptable.For international customers, we only take payment through Paypal.
Thank you for the interest in our products, welcome to coming and taking a look next time.
