Product Description:

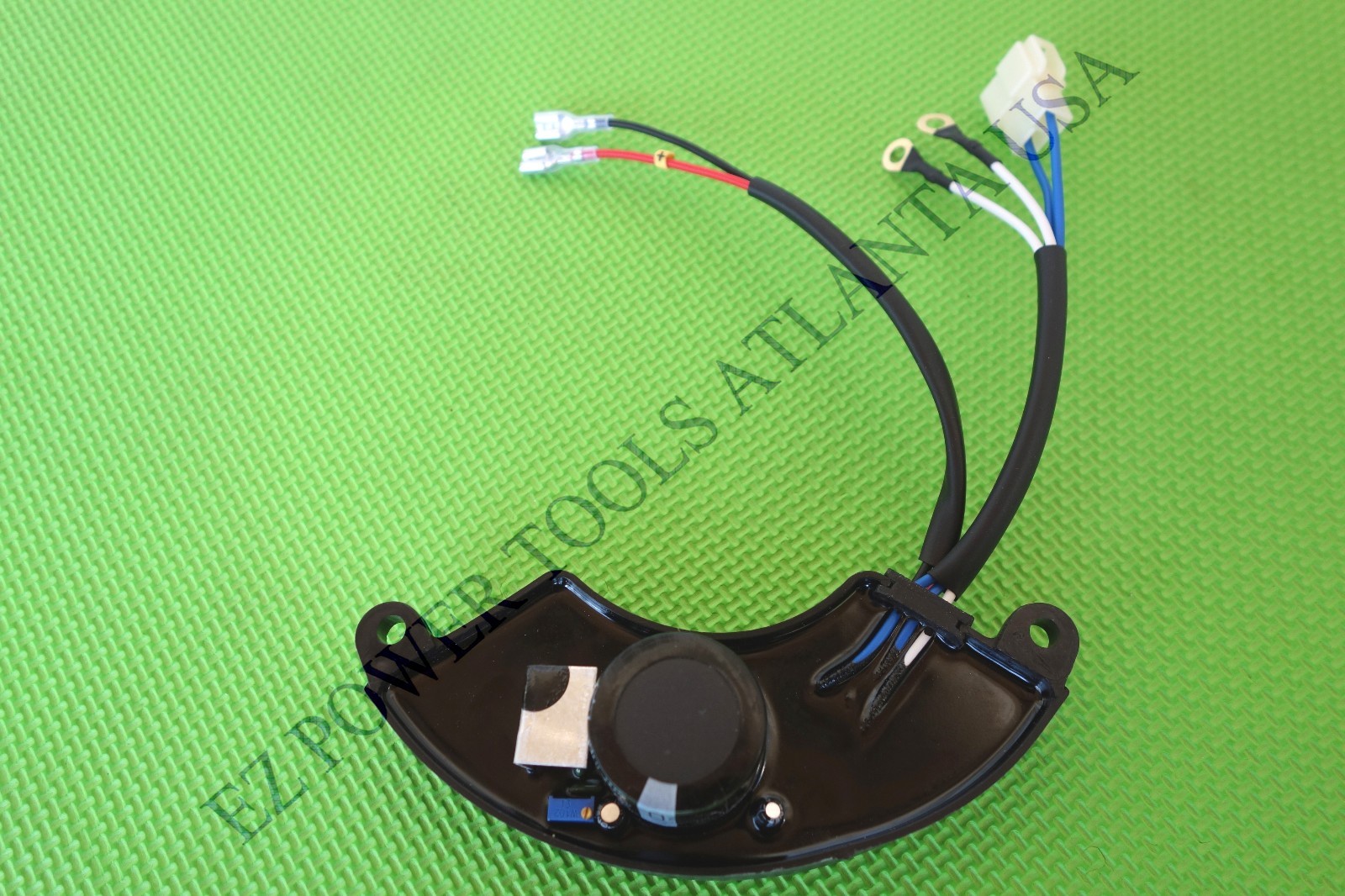

Premium Replacement 4KW to 6.5KW Adjustable Generator Automatic Voltage Regulator(AVR) forDuracell BrandedGasoline Generator ModelDG65M-R62.It can handle maximum surge power up to 7.5KW.Alternator Rear Cover/Stand & Carbon Brush Assembly NOT Included and Sold Separately.
Quality Product with Prompt Shipping & Solid After Sales Support! All our orders are shipped out ofAtlanta, USAandEDT is about 1 to 3 business daysfor delivery in most areas of continental states.Packing Contents: 1 XAVR-DGG65-1108.
Seller\'s Statement:
Many other sellers just stole our part number, and directly copied our product description as well; however, their product is totally different from ours.Many products look very similar externally, but their internal design is very different.An incompatible AVR will damage and burn your generator head/alternator. Most of their AVRsare rated only 5KW, tons of which can be dug out of through the search of key word 5KW AVR at the cost of around $25(wire colors may be different).They are too weak to be used unless the total load of your generator won\'t exceed 5KW!Their use on your generator probably causes serious damage to the alternator/generator head.Special Note:
1)A higher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used for a generator of higher power output.
2)If our AVR is out of adjustment for your generator, please MANUALLY turn clockwise or counter-clockwise a small bronze screw in a blue rubber part(potentiometer) to reach your desirable power output. Clockwise turning is for increasing and counter-clockwise turning for decreasing voltage output.If this does not help you out, please contact with us for tech support.
Part Number:
AVR-DGG65-1108. It is compatible with Duracell Part # DGG65-1108.
Product Features:
- Built-in Full-Wave Output Bridge Rectification.
- Voltage Output Increase with Loading.
- Stable Voltage Output with Negative Voltage response.
- Over Voltage, Over Current and Short Circuit Protection.
- Large Manual Adjustable Voltage Output Range of 160V ~ 260V for 240V output.
Technical Specifications:
- Maximum Output: DC 90V 2.5A.
- Excitation Voltage: 90V.
- response Voltage: 16 ~ 20V.
- Frequency: 50/60Hz.
- AC Voltage Output: 120V/240V.
- Auto Voltage Adjusting Accuracy: ≤ ±1%.
- Maximum Temperature Rise: 130C or 266F.
- Continuous Working Time: ≥ 20 Hours.
- Installation-Center Distance: 99 ± 1mm (about 3 15/16 in).
