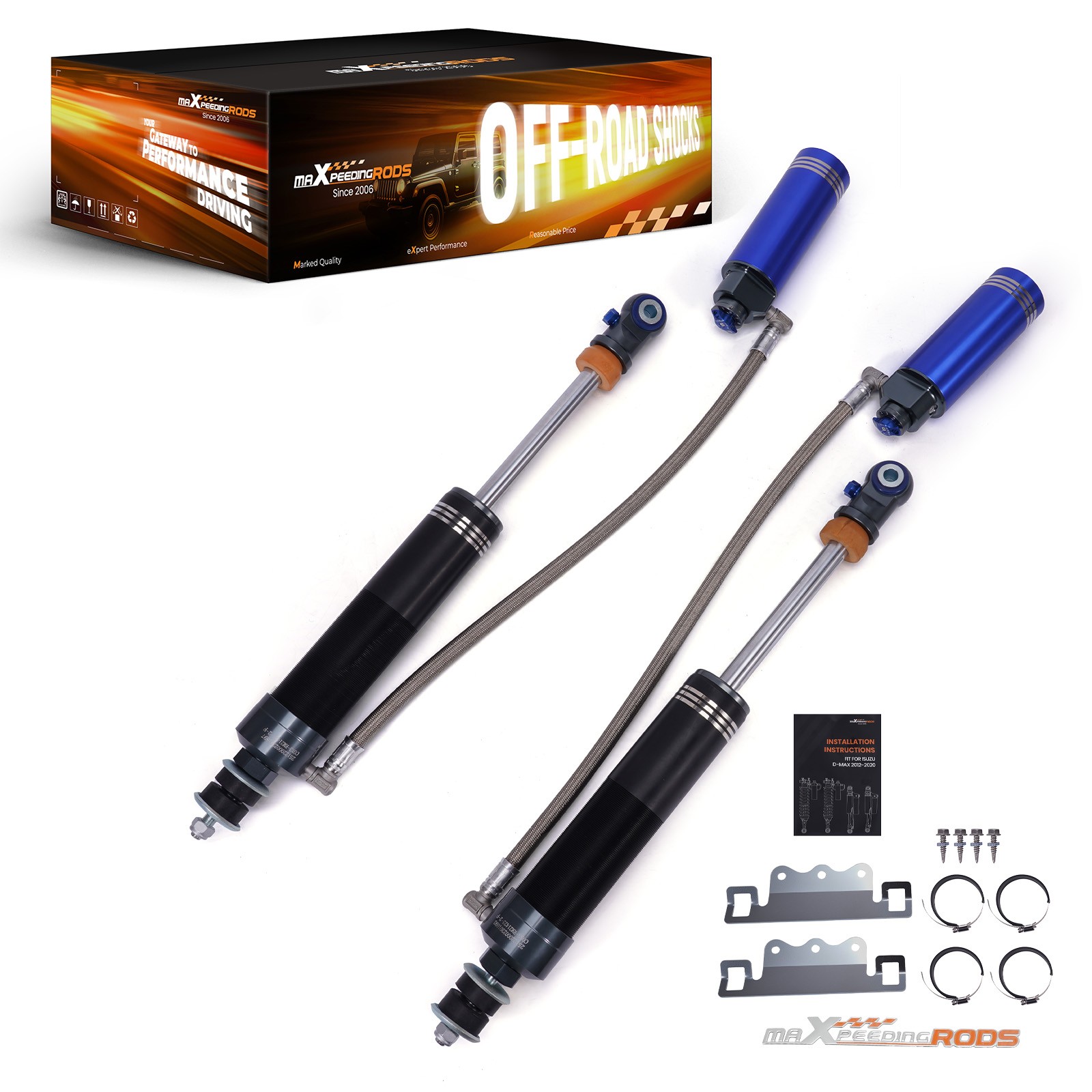

Damping Adjustable Reservoir Front Shock Kit for 14-25 Ram 2500 3500 0-2\" Lift

All modifications must be installed by licensed mechanics and in compliance with your local modification

Enhanced Nitrogen Reservoir Design

Rebound & Compression Damping Adjustability

Advanced Surface Engineering

Germany Fuchs Damping oil

Specifications
Body OD 65mm ID Bore Size 57mm Height adjustable Yes. Lift 0-2 inches Reservoir Dimensions Φ65×160 mm Compressed Length 205 mm Extended Length 205 mm Body Material 45# steel Body Outer Diameter 65*268 mm Reservoir Type remote Warranty 2 Years

Features

1. Enhanced Nitrogen Reservoir Design
The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.

2. Rebound and Compression Damping Adjustment
A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.

3. Oversized Damping Architecture
The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.

4. Advanced Surface Engineering
High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminum maintains structural integrity while achieving weight Ram 2500 2014-2025 4WD
For Ram 3500 2014-2025 adjustable: rise 0-2 inches

Rebound and Compression Damping Force Adjustable: Yes
Body Outer Diameter (mm)：65*268
Body Inner Diameter (mm)：57*268
Body Material:45# steel
Top Mount:STEM MOUNT
Bottom Mount:EYELET
Compressed Length (mm):205
Extended Length (mm):205
Hose (mm):600
Reservoir Outer Dimensions:Φ65×160
Reservoir Inner Dimensions:Φ57×160
Reservoir Type:remote
Shaft Size (mm):320
Travel (mm): included

Front Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.

1. Large 65mm Body OD with 57mm ID Bore Size;2. 10-Level Compression & 10-Level Rebound Damping Adjustment;3. Enhanced Nitrogen Reservoir Design;4. Dual-Mode Adjustability;5. Oversized Damping Architecture;6. Advanced Surface Engineering.
