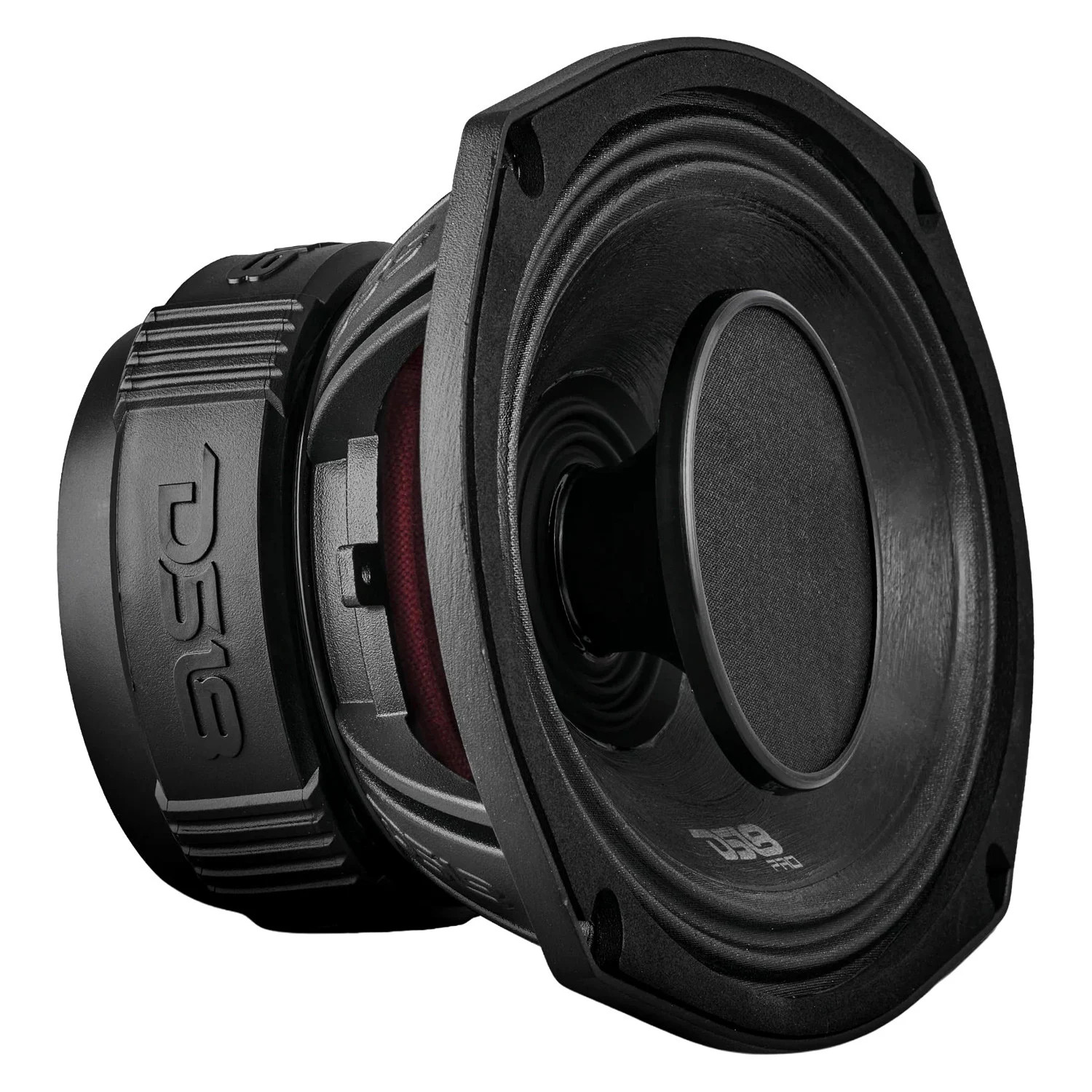

DS18 PRO-HY69.4B PRO Water Resistant Hybrid Mid-Range Loudspeaker Part Number: PRO-HY69.4B ● In Stock: Ships in 3 days Authorized Dealer: Lowest Prices. On the go Daily Deals Guaranteed Fitment. Always the correct part In-House Experts. We know our products Our Newsletter: Product Details Product Details Universal PRO Water Resistant Hybrid Mid-Range Loudspeaker (PRO-HY69.4B) by DS18®. PRO 6x9\" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm. With Built-in Driver 250 Watts Rms 4-Ohm. DS18 PRO-HY69.4B . 6x9\" Water Resistant Hybrid Loudspeaker With 1\" Compression Driver Horn . The PRO-HY69.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 6x9\" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume. The PRO-HY69.4B features a 1\" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound. With a maximum power handling of 500 watts and a sensitivity of 97 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound. The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY69.4B also has a nominal impedance of 4 ohms, a frequency response range of 50Hz-20KHz, and a recommended hi-pass crossover of 80Hz for improved audio performance and longevity, making it a great choice for a range of audio applications. The PRO-HY69.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.
Universal PRO Water Resistant Hybrid Mid-Range Loudspeaker (PRO-HY69.4B) by DS18®. PRO 6x9\" Water Resistant Hybrid Mid-Range Loudspeaker with Built-in Driver 250 Watts Rms 4-Ohm. With Built-in Driver 250 Watts Rms 4-Ohm. DS18 PRO-HY69.4B . 6x9\" Water Resistant Hybrid Loudspeaker With 1\" Compression Driver Horn . The PRO-HY69.4B is a high-powered, water-resistant hybrid loudspeaker that combines a 6x9\" midrange speaker with a high wattage driver to provide a full range of frequencies at an impressively loud volume. The PRO-HY69.4B features a 1\" compression driver horn, made with a titanium diaphragm and neodymium magnet, for clear and powerful high-frequency sound. With a maximum power handling of 500 watts and a sensitivity of 97 dB, this speaker is perfect for those who want to place a high wattage, high volume loudspeaker with a powerful driver into their motorcycles to save on space and increase the quality of their sound. The water-resistant cone helps protect the speaker from the elements, making it ideal for outdoor use. The PRO-HY69.4B also has a nominal impedance of 4 ohms, a frequency response range of 50Hz-20KHz, and a recommended hi-pass crossover of 80Hz for improved audio performance and longevity, making it a great choice for a range of audio applications. The PRO-HY69.4B is an excellent choice for anyone seeking a powerful and versatile speaker for their sound system.
Specifications:
- SKU: PRO-HY69.4B
- Nominal Diameter: 6x9\" / 152 x 228mm
- Nominal Impedance: 4 Ohm
- RMS Power Handling: 250W
- MAX Power Handling: 500W
- Sensitivity (1w/1m): 97dB
- Frequency Response: 50Hz - 20Khz
- Recommended HI Pass Crossover: 80Hz
- Number of ways: 2 ways
- Pair or Single: Single
- Grill Included: Yes
- Voice Coil Diameter: 1.5\"/ 38.6mm
- Voice Coil Former Material: Glass Fiber
- Winding Material: CCAW
- Cone Material: Water Resistant Paper (IPx5)
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Matte Black
- Magnet Material: Ferrite
- Magnet Weight: 27 Oz
- Displacement Volume: 0.051L / 0.0018ft3
- Equivalent Volume Vas: 14.84L / 0.52ft3
- Excursion (one way) Xmax: 9.2mm
- Free Air Resonance Fs: 87Hz
- Mechanical Factor Qms: 3.629
- Electrical Factor Qes: 0.661
- Total Factor Qts: 0.559
- Mechanical Mass Mms: 14.264g
- Mechanical Compliance Cms: 0.236 mm/N
- BL Factor BL: 6.135
- Voice Coil Inductance Le: 4.22mH
- Cone Area Sd: 210.48 cm²
- DC Resistance Re: 3.2 ohms
- Mechanical Mass w/o air Mmd: 12.509g
- Voice Coil Diameter_1: 1\" / 25.4mm
- Voice Coil Former Material_1: Kapton
- Winding Material_1: CCAW
- Diaphragm Material: Titanium
- Magnet Material_1: Neodymium
- Horn Diameter: 3.26\" / 83mm
- Overall Diameter: 9.45 X 6.57\" / 240 X 167mm
- Overall Depth: 4.54\" / 115.4mm
- Front Mount Baffle Cutout: 8.74 X 5.98\" / 222 X 152mm
- Mounting Depth: 4.21\" / 107 mm
- Motor Diameter: 4.61\" / 117mm
Features:
- 6x9\" Hybrid Coaxial Mid-Range w/Driver
- RMS Power: 250 Watts(500 Watts Peak)
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnets
- Water Resistant IPX5
- Easily Repaired With The PRO-HY/VC
