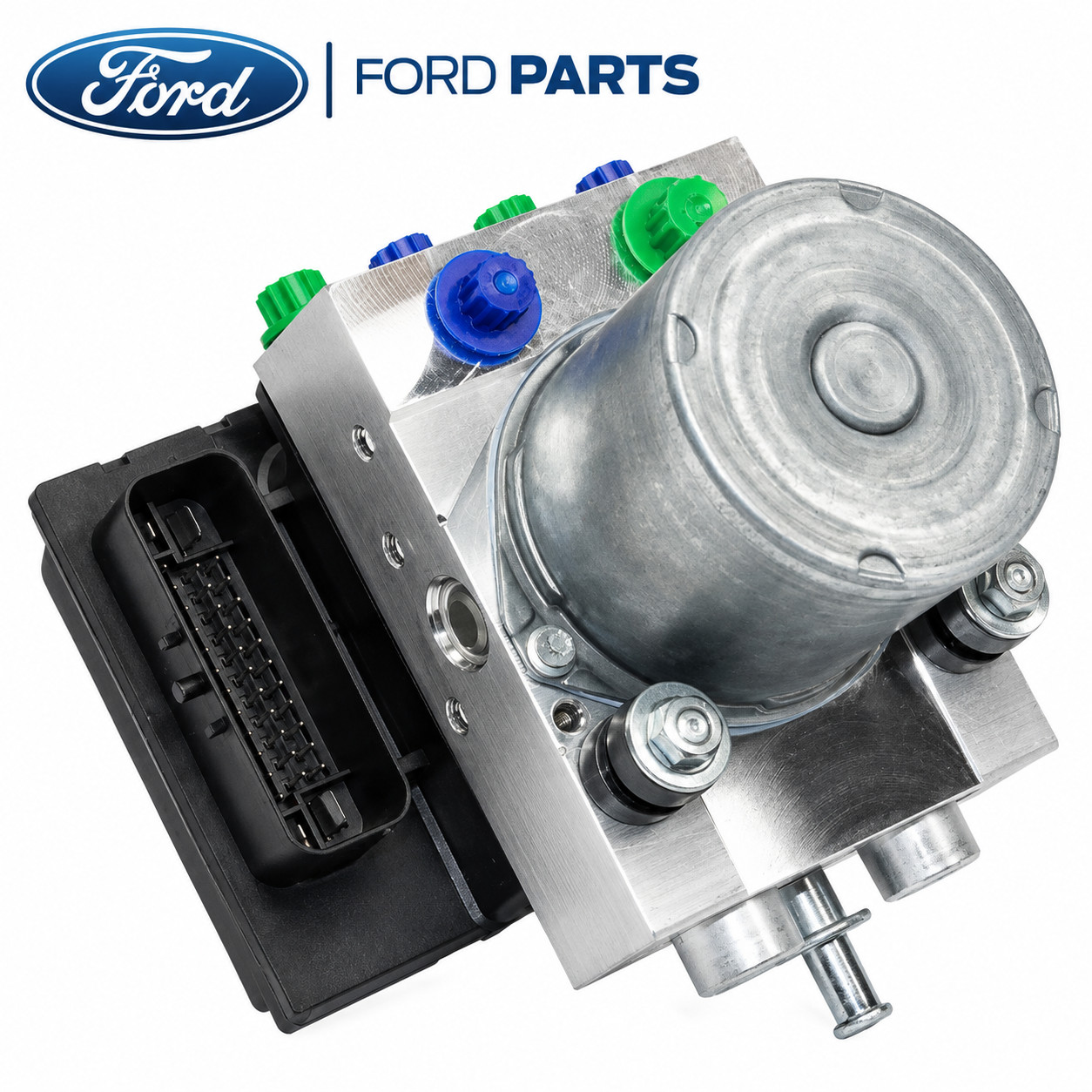

Genuine Ford OEM ABS Anti-Lock Brake Hydraulic Pump & Electronic Control Module Assembly
Part Number: DL3Z-2C215-C
Vehicle: Ford F-150
Years: 2013–2014
Drive: 4WD
Raptor: NOT for SVT Raptor
This listing is for the complete ABS hydraulic assembly, including the ABS electronic control module, hydraulic modulator/valve block, pump and motor assembly, as shown in the photos. Ford catalogs describe DL3Z-2C215-C as an ABS Hydraulic Assembly and note that it includes the control V62013FordF-1504WD3.7L V62013FordF-1504WD5.0L V82013FordF-1504WD6.2L V82014FordF-1504WD3.5L V62014FordF-1504WD3.7L V62014FordF-1504WD5.0L V82014FordF-1504WD6.2L V8
Applicable trims include FX4, King Ranch, Lariat, Limited, Platinum, STX, XL and XLT, depending on engine/configuration
OEM PART commonly referenced with the Ford ABS assembly verify the number on your original unit before orderingWHAT IS INCLUDED
Complete ABS Hydraulic & Electronic Assembly:
- ABS Electronic Control Module
- Hydraulic Modulator / Valve Block
- ABS Pump
- Electric Pump Motor
- Solenoid Valves
- Electrical Connector
Everything shown in the listing photos is included.
WHAT DOES THE ABS ASSEMBLY DO?
The ABS assembly controls hydraulic brake pressure during ABS activation. The electronic control module receives information from the wheel-speed sensors and commands the hydraulic valves and pump to help prevent wheel lockup.
Common names include:
ABS Pump Assembly, ABS Module, ABS Control Module, EBCM, Electronic Brake Control Module, ABS Hydraulic Unit, ABS Modulator, ABS Actuator, Brake Pressure Modulator, ABS Pump & Motor Assembly.
COMMON FAILURE SYMPTOMS
A failing ABS assembly may cause:
- ABS warning light
- Brake warning light
- Traction Control warning
- Stability Control warning
- ABS system malfunction
- ABS-related DTCs
- Communication errors
- Pump motor faults
- Loss of ABS operation
- Intermittent ABS operation
Other components such as wheel-speed sensors, wiring, power supply or CAN communication can produce similar symptoms. Proper diagnosis is recommended before replacing the assembly.
Please send us your VIN and a clear photo of your original ABS assembly before shipping. We can compare the original configuration and part number.
PROGRAMMING / INSTALLATION
Professional installation is recommended.
The ABS electronic module may require programming/configuration after installation using appropriate Ford diagnostic equipment. Ford OEM information states that this module requires programming.
Because this is a complete hydraulic assembly, proper brake bleeding is required after opening/replacing the hydraulic brake system.
