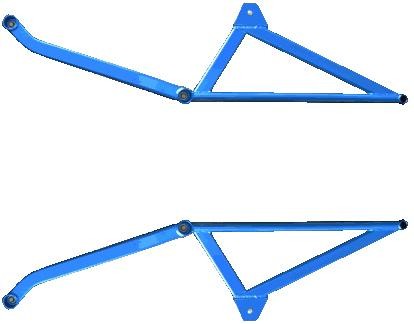

Cusco 566 492 C Power Brace Floor Center for 2008-2015 Mitsubishi Lancer Evo X C For Sale - New and Used

New Cusco 566 492 C Power Brace reinforces chassis rigidity and reduces body flex for improved cornering and handling. Durable steel with blue powder coat.

Bolt-on fit for 2008–2015 Mitsubishi Lancer Evolution X and 2009–2015 Lancer Ralliart. Uses factory mounting points; hardware

- AUTHORIZED DEALER
- AUTHENTICPART

Part Brand: Cusco

Part Number: 566 492 C

Vehicle Fitment

• 2008-2015 Mitsubishi Lancer Evolution X GSR (CZ4A, 4B11 2.0L Turbo DOHC I4, AWD)
• 2008-2015 Mitsubishi Lancer Evolution X MR (CZ4A, 4B11 2.0L Turbo DOHC I4, AWD)
• 2015 Mitsubishi Lancer Evolution X Final Edition (CZ4A, 4B11 2.0L Turbo DOHC I4, AWD)
• 2009-2015 Mitsubishi Lancer Ralliart (CY4A, 4B11 2.0L Turbo DOHC I4, AWD)

Fitment Notes

• Fits both the Lancer Evolution X (CZ4A) and Lancer Ralliart (CY4A) — both share the same floor pan and mounting points
• Compatible with all Evo X trim levels including GSR (5-speed manual), MR (TC-SST dual-clutch), and Final Edition
• Multi-point, 2-part longitudinal brace design that mounts to the floor/center tunnel area of the chassis
• Bolt-on installation using existing factory chassis bolt holes — no drilling or fabrication required
• Position: Floor Center (underside, center tunnel area)

Features

• Multi-point longitudinal brace connects to existing member bolts along the center floor tunnel for maximum reinforcement
• 2-part design strengthens the front and middle portion of the chassis for improved cornering rigidity
• Steel oval-section tubular construction with 1.6mm wall thickness for optimal strength-to-weight ratio
• Reduces chassis flex and body twist under aggressive cornering, improving suspension effectiveness and tire contact
• Provides a noticeable improvement in chassis composure during high-speed cornering and transitions
• Cusco blue powder-coated finish for corrosion resistance and a professional underbody appearance
• Bolt-on installation using factory chassis bolt holes — completely reversible with no permanent modification
• Compatible with Cusco's full Evo X Power Brace lineup for a comprehensive chassis stiffening system
• Developed using Cusco's motorsport chassis stress simulation data and validated in competition

Specifications

• Part Number: 566 492 C
• Type: Power Brace (Floor Center / Chassis Reinforcement)
• Position: Floor Center (underside, center tunnel)
• Material: Steel
• Shaft Shape: Oval Section
• Shaft Thickness: 1.0mm
• Finish: Cusco Blue Powder Coat
• Installation: Bolt-on to existing member bolt holes
• Compatible Chassis: CZ4A (Evo X), CY4A (Ralliart)
• UPC: 4996338046536

Included Components

• 1x Cusco Power Brace Floor Center Assembly (2-part longitudinal brace, steel oval section)
• 1x Mounting Hardware Kit

Product Description

The Cusco 566 492 C Power Brace Floor Center is a multi-point, 2-part longitudinal chassis reinforcement brace designed for the 2008-2015 Mitsubishi Lancer Evolution X (CZ4A) and 2009-2015 Lancer Ralliart (CY4A). This brace connects to multiple existing member bolt locations along the center floor tunnel of the chassis, creating a rigid longitudinal link that significantly stiffens the front and middle portion of the unibody structure. The result is a measurable reduction in chassis flex during aggressive cornering, hard braking, and full-throttle AWD acceleration — conditions where the Evo X's high-output 4B11 turbocharged engine and sophisticated AWD system generate forces that can overwhelm the factory chassis rigidity.

The brace features steel oval-section tubular construction with Cusco's signature blue powder-coated finish for corrosion resistance and a clean appearance. Installation is straightforward and uses only existing factory chassis bolt holes, making the upgrade completely reversible with no permanent modification to the vehicle. The bolt-on design connects directly to the member bolts in the floor tunnel area, providing a strong mechanical connection that distributes loads across the chassis structure rather than concentrating them at individual suspension mounting points.

This Floor Center brace is part of Cusco's comprehensive Evo X Power Brace system, which includes the Floor Front (566 492 FF), Floor Rear Side (566 492 FR), Rear Member (566 492 RM), Rear Member Rear (566 492 RR), and Rear Member Side (566 492 RS). For maximum chassis rigidity, Cusco recommends combining multiple Power Braces with their front strut tower bar (566 540 A), lower arm bar (566 477 A), and sway bar kits. Each additional brace builds upon the previous, creating a cumulative stiffening effect that transforms the Evo X's handling precision and driver confidence.

*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
