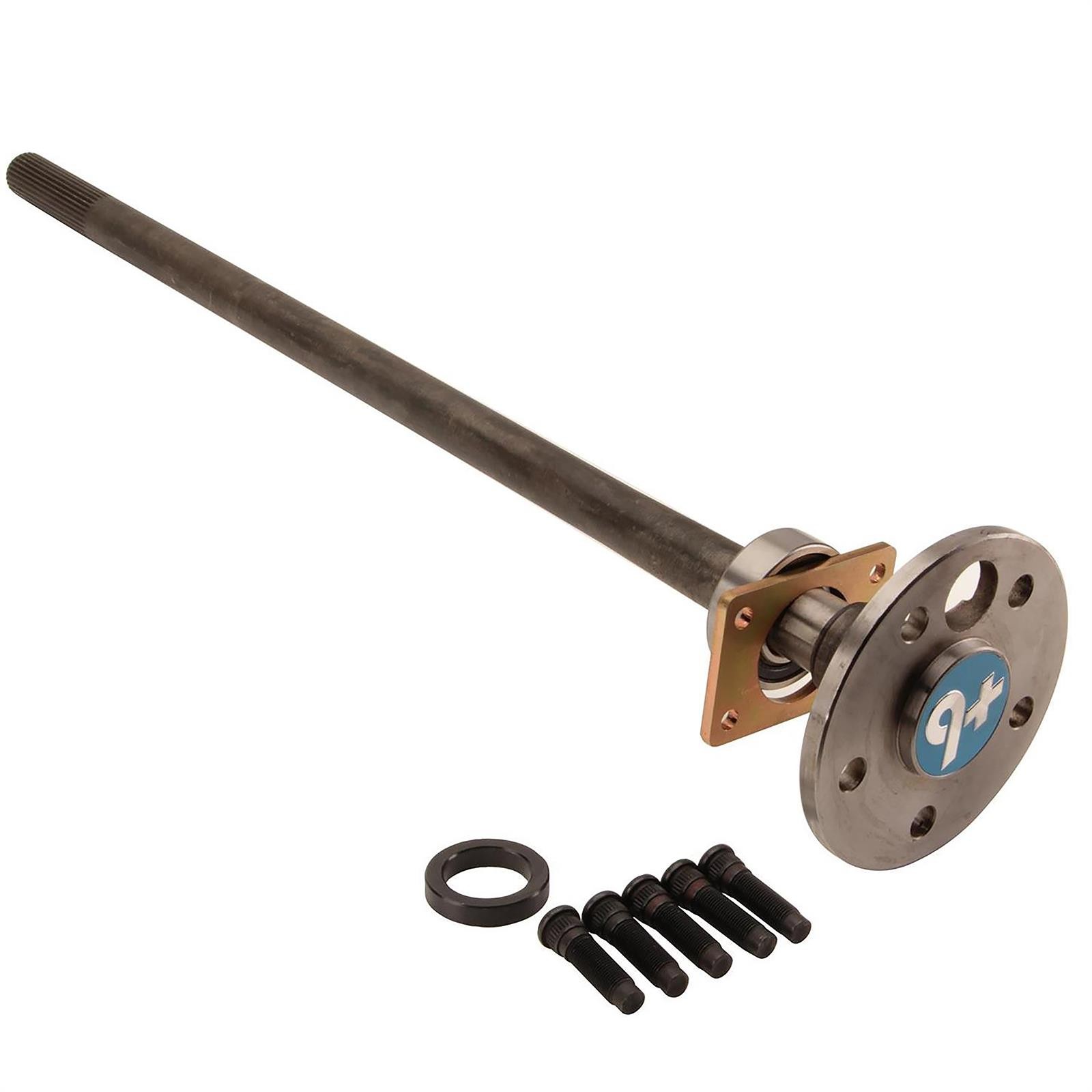

Compatible with Ford 9 Inch \"Small Bearing\" standard housings that have a 2.525\" brake spacing offset., Drilled for 5 on 4-1/2\" wheel bolt pattern., It has 28 splines and has a 6.158\" axle flange diameter, Kit includes 1/2\"-20 wheel studs and the axle bearing and retainer, Designed to bolt right into standard small bearing housing end type. Currie 98832 9 Inch Ford Cut-To-Fit 28 Spline Axle, 32 Inch Sku # 91098832 Mfr. Part # 98832 Condition New Brand Currie Sold Each Details
This Currie 9+ CTF (Cut To Fit) 9\" Ford axle provides you with a 32\" long, 28 spline axle shaft with 4\" of spline length. Up to 3\" of this spline length may be cut off so that you may attain an axle length anywhere between 29\" and 32\" and still have adequate spline engagement into your 3rd. member. All CTF axles feature high performance induction heat treated forged alloy steel construction, and feature a 2.525\" brake space dimension which is stock for 64-72 Mustang, Falcons, Fairlanes, and Maverick rearends. Wheel bolt pattern is drilled the stock 5 on 4 1/2\" pattern, and an access hole is drilled.All CTF axles come with a full installation package which includes a set of five 1/2\"-20 Ford style wheel studs, one heavy duty small bearing style retainer plate, one high quality small axle bearing with retaining collar, and one axle seal. Sold as a kit.
Notes: 1) Axle specifications are 2.525\" brake spacing offset, bolts into standard small bearing housing end type, and features a 2.430\" axle register diameter. 2) Axle bearing does not come pressed onto the axle shaft, and wheel studs are not installed.
- Fits small bearing Ford
- 28 Spline
- 6.158\" Axle flange dia.
- Compatible with \"standard small bearing\" housing and brakes with 2.525\" brake spacing offset
- Drilled for 5 on 4-1/2\"wheel bolt patterns
- Includes 1/2\"-20 wheel studs
- Compatible with \"Small Bearing\" housing and brakes with 2-1/2\" offset
- Includes the axle bearing and retainer you will have to press on
- Axlessold each, not as a pair
Installation Notes:
When installing new axles in rearends with posi traction differentials, be sure to install the driver\'s side axle first to keep the splines properly aligned. Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver\'s side axle properly if the passenger side axle is already installed.
If installation of passenger side axle is done first it may require two people when installing the driver\'s side axle, with both parties rotating reach axle until splines are in line and the driver\'s side axle fully sides into the housing.
When cutting axles to desired lengths Currie recommends:Â
- Normal steel cutting machinery (cold saw, band saw, chop saw, etc.)Â
- Using a sleeve around the axle such as a small piece of PVC tubing - this allows:
- The axle to be spun in place while being cut
- A perimeter cut around the outer diameter assisting in keeping the cut square
- Avoiding the build-up of too much heat by doing a straight cut (like a knife though a stick of butter)Â
To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:
- Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
- Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
- Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
- Proper break-in allows:
- The ability to install new axles and hit the track the same day without worry
- Extended life for rearend components
- Keeps the quality and life of your gear oil
Note: If you find that your rearend is running somewhat \"tight\" be sure to addto \"loosen up\". If a more aggressive performance is desired, Friction Modifier is not needed.
Specs Position Rear Axle Type Semi-Floating Overall Length 32" Spline Count 28 Bolt Pattern 5 on 4.5" Housing End Style Small Ford Spline Length 4" Material Type Steel Finish Natural Sold in Quantity Each Overall Diameter 6.16" Offset 2.53" MFG. Part # 98832 Notes For 'Small Ford Bearing' Axle Application Cut to Fit Yes Reviews Glad I purchased from Speedway .motors Rated by Gator on May 30, 2026
Summary: This item came as described and after cutting it to size I installer it with no problems. Axle works perfectly
Yes, I recommend this product.
Excellent axles, Rated by 64 falcon man on October 01, 2022
Summary: Replaced stock axle, mine was bent, easy install, cut with hand held grinder with cut off wheel, only draw back axle seals were wrong size, had to purchase seperate, increased cost!
Yes, I recommend this product.
Yes would buy again. Rated by Thunderhorse on February 16, 2022
Summary: Replaced worn splined axel and new posi pumpkin !
Yes, I recommend this product.
Product was as advertised. Will work fine. Rated by JMac on December 07, 2021
Summary: Product was as advertised. Will work fine.
Yes, I recommend this product.
Yes I would buy these again Rated by Canuk40 on June 01, 2021
Summary: These and the rear brake kit let's me complete the rear end of my 1940 Ford.
Yes, I recommend this product.
