Includes both 7/16\"-20 and 1/2\"-20 wheel studs, Engineered to be 20-30% stronger than factory axles, They are compatible with \"Big Ford - New Style\" housing and brakes with 2-1/2\" offset, Ideal for small shops and will allow you to build your own custom width rear end easily, Axles have 4\" of spline which will allow you to cut a maximum of 3\" of the spline off to obtain the correct length Currie 98132 9 Inch Ford Cut-To-Fit 31 Spline Axle, 32 Inch Sku # 91045124 Mfr. Part # 98132 Condition New Brand Currie Sold Each Details

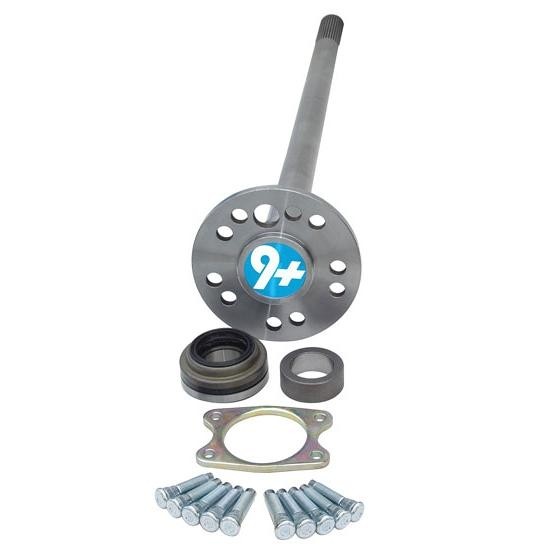

These axles have 4\" of spline which will allow you to cut a maximum of 3\" of the spline off to obtain the correct length. This is perfect for small shops and will allow you to build your own custom width rear end easily. Axle length is measured from the flange to the end of the splines. All CTF axles come with a full installation package which includes one set of five 1/2\"-20 Ford style wheel studs, one set of five 7/16\"-20 Chevy style wheel studs, one set-20 tapered roller bearing with race, seal, & collar, and one heavy duty late model large bearing style retainer plate.
- 9 Inch Ford
- 31 Spline
- 32 Inch Long
- 20-30% stronger than factory axles - increased depth allows for flex without breaking
- Drilled for both 5 on 4-1/2\" and 5 on 4-3/4\" wheel bolt patterns
- Includes both 7/16\"-20 and 1/2\"-20 wheel studs
- Compatible with \"Big Ford - New Style\" housing and brakes with 2-1/2\" offset
- 4\" of spline which allows you to cut a maximum of 3\" of the spline off to obtain the correct length
- Perfect for small shops that want to build your own custom width rearend
- Includes a set-20 bearing and retainer you will have to press on
- Axles sold each, not as a pair
Installation Notes:
When installing new axles in rearends with posi traction differentials, be sure to install the driver\'s side axle first to keep the splines properly aligned. Failure to do so may move the two splined gears out of alignment, and it may be difficult to install the driver\'s side axle properly if the passenger side axle is already installed.
If installation of passenger side axle is done first it may require two people when installing the driver\'s side axle, with both parties rotating reach axle until splines are in line and the driver\'s side axle fully sides into the housing.
When cutting axles to desired lengths Currie recommends:
- Normal steel cutting machinery (cold saw, band saw, chop saw, etc.)
- Using a sleeve around the axle such as a small piece of PVC tubing - this allows:
- The axle to be spun in place while being cut
- A perimeter cut around the outer diameter assisting in keeping the cut square
- Avoiding the build-up of too much heat by doing a straight cut (like a knife though a stick of butter)
To ensure you get the most out of your new 9 Inch components, Currie recommends that you perform a proper break-in process:
- Use a name brand mineral-based gear oil, preferably 85w140 (Extremely high quality synthetic oils may be used once break-in process has been successfully performed)
- Place vehicle on jack stands and let the rearend spin while the vehicle idles - run transmission in both forward and reverse periodically throughout the process
- Continue to run the rearend until the pinion gets hot (place hand on bottom of the differential housing to verify this)
- Proper break-in allows:
- The ability to install new axles and hit the track the same day without worry
- Extended life for rearend components
- Keeps the quality and life of your gear oil
Note: If you find that your rearend is running somewhat \"tight\" be sure to addto \"loosen up\". If a more aggressive performance is desired, Friction Modifier is not needed.
Specs Position Rear Axle Type Semi-Floating Overall Length 32" Spline Count 31 Bolt Pattern Dual: 5 on 4.5" | 4.75" Housing End Style Big Ford/New Style (Torino) Spline Length 4" Material Type Steel Finish Natural Sold in Quantity Each Overall Diameter 3.15" Spline OD 1.33" Knurl Diameter 0.61" Knurl Length 0.35" Offset 2.50" Stud Length 2.17" MFG. Part # 98132 Notes Includes both 7/16"-20 and 1/2"-20 wheel studs. Cut to Fit Yes Reviews Definitely a great quality product and a brand you can trust Rated by Alex on August 16, 2020
Summary: The Currie axel shafts are a perfect fit for my 65.25" Ford 9" axel housing and didn't have to cut to make them fit the fit and finish on these Axel's are perfect with no burs or imperfections to be found for only a few dollars more you get a USA built Axel's
Yes, I recommend this product.
I would buy this product again! Rated by Steve on May 03, 2017
Summary: Didn't even need to cut it to fit! Great Quality, Great Product!
Yes, I recommend this product.
Good quality Rated by Dean on July 09, 2016
Summary: Installed axles in Franklin quick change that I cut down and installed Explorer brakes.
Yes, I recommend this product.
Highly recommend Rated by Bob on July 06, 2016
Summary: I will have trouble breaking the high performance axels!!
This product was just wnat I wanted Rated by Cleaners on September 29, 2015
Summary: These axles have been installed in a 1954 Dodge Fargo pickup that I am customizing. I installed a good used 9" limited slip differential rear end from a '78 Ford pickup. Coil over shocks, Mustang independent suspesion front end, etc.
Yes, I recommend this product.
