Application:
For Honda Odyssey V6 3.5L Petrol w/ Hydraulic Power Steering 2007-2010
For HONDA ODYSSEY 2007 Touring ONLY（Not Fit For Honda Odyssey EX Mini 2007 ）
(Only for Left Hand Drive (LHD))
Part Number:
53010SHJA02, 53601SHJA06, 53601SHJA84, 53601SHJA86, 26-2747
Specification:
Steering Wheel Position:LHD
Come with inner tie rod ends:YES
Outer Tie Rods：NO
Distance Between Mounting Holes (IN):4.06"
Input Shaft Diameter (IN)：0.75"
Input Shaft Length (IN)：1.94"
Number of Mounting Holes：2
Rack Length (IN)：46.69"
Thread Length (IN)：2.03"
Return Port Thread Size：M16*1.5
Pressure Port Thread Size：M14*1.5
Total Turns Lock To Lock (MM):3.44
Package Include:

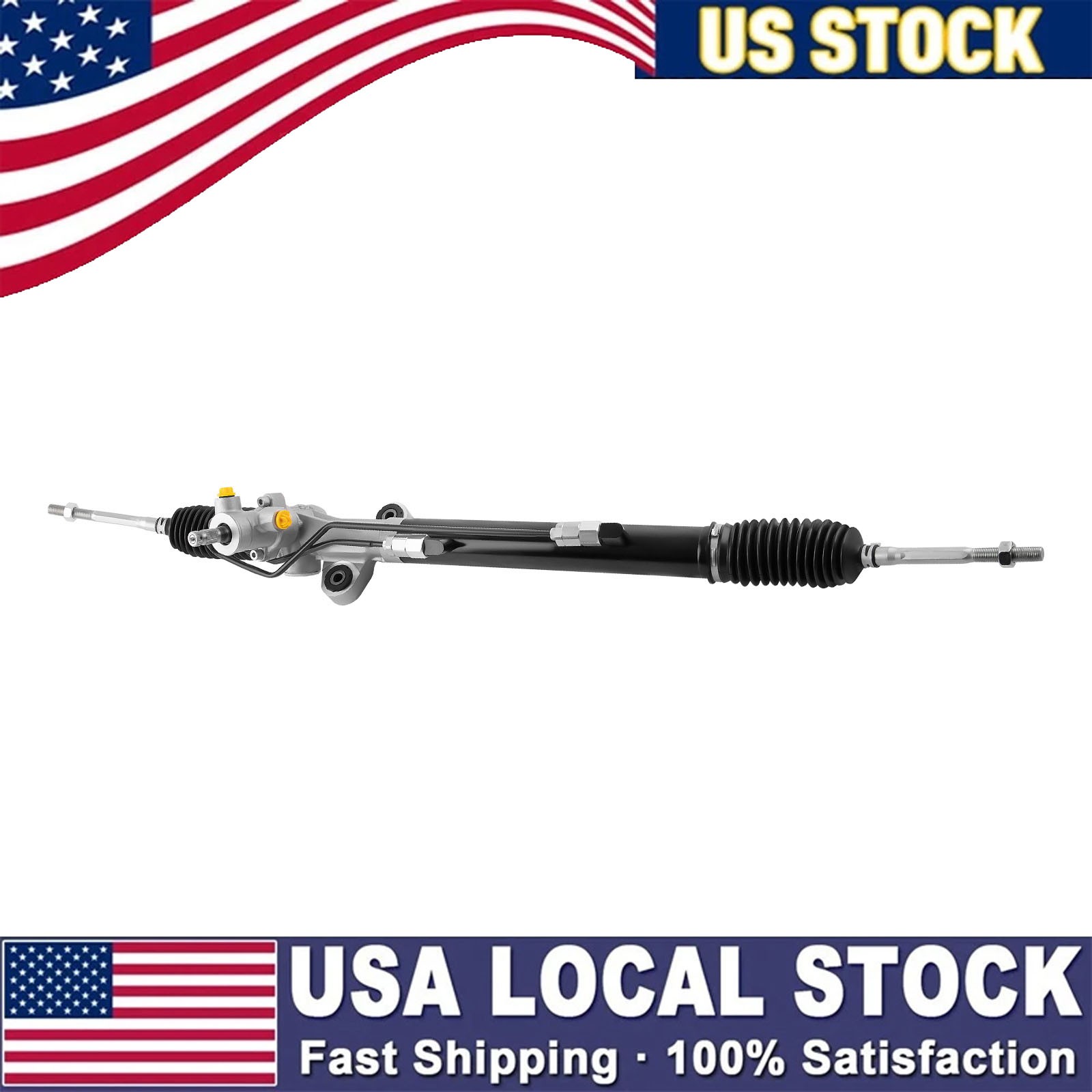

1x Complete Power Steering Rack and Pinion to strict quality control standards 100% factory tested.
High Performance:The steering rack solves abnormal noise and oil leakage problems, ensures that the steering wheel rotation angle is proportional to the tire rotation angle, and reduces the steering wheel's control force when turning, which makes driving safer.
2 in 1 Function:Conversion of the steering wheel's rotationalmotion into the linear motion needed for thevehicle's wheels to turn
Reduction of gears, which makes it easierfor the steering wheel to turn the wheels.
Premium Material:With the premium aluminum alloy and iron construction, this steering rack assembly has a great anti-rust and anti-corrosive quality for its long service life.
We put moderate lubricating oil into this assembly so that it can prevent rust and oxidation.
Humanized Design:Ensure a tight seal and smooth steering operation. The hydraulic lines are fully fluid tested at high pressure. And the steel clamps and rubber bellow boots improve steering efficiency.
If the following situation occurs, the steering rack needs to be replaced
1.Oil leakage: The oil seal in the steering gear can break due to aging and wear, resulting in loss or leakage of hydraulic oil. Oil leakage can cause difficulty or malfunction in steering operation.
2.Abnormal noise: A snap, noise, or hiss may be caused by worn steering gear, pin shaft, or rack.
3.Excessive steering force: Blockage or wear of the steering gear oil pipes or passages can cause excessive hydraulic oil pressure, excessive steering force, or even steering failure.
4.Steering failure: Steering failure can be caused by reasons such as damage to the steering gear, blockage in the oil circuit, and failure of the oil pump, which will affect driving safety.
5.Shake or shake: Worn or loose parts in the steering gear can easily cause the vehicle to shake or shake during steering.
6.Dead center: When turning, if the steering wheel needs to be rotated for a long time until the vehicle turns significantly, this may be a dead center problem with the steering gear.
Note:
1.Please note that this product is not fit forHonda Odyssey EX Mini model2007
2.To avoid operating errors, we recommend professional installation.
3. We are happy to offer any help. Below information will help:
VIN(Vehicle Identification Number), detailed car model, part number and photos of the parts.
