Engine Bearings Camshafts Valvetrain Parts GM LS / LT Parts Hemi Parts Cam Motion JunkYard Dog Rectangle Port LS Camshaft 229/245 .621/.604 Lift
Grind # XA229/365-XA245/355-12+4
Aggressive Street / Street-Strip
Duration at .050: 229/245
112 Lobe Center Angle with a 108 Intake Centerline
Lift with 1.7 Rocker Arm Ratio: .621\"/.604\"
Recommended Displacement: 6.0-6.2 Liter Engines
Cylinder Heads: Rectangle Port
Recommended Compression Ratio: 9.4-11.5:1
Recommended Headers: 1 3/4\" - 1 7/8\"
Recommended Stall Converter: 3200-4500
Recommended Rear Axle Ratio: 3.73-4.56
*This camshaft is specifically designed for use with single plane intake manifolds such as Victor, Hi-Ram, Mid-Ram and GMPP intakes. However, this camshaft will also work well with rectangle port dual plane intake manifolds.

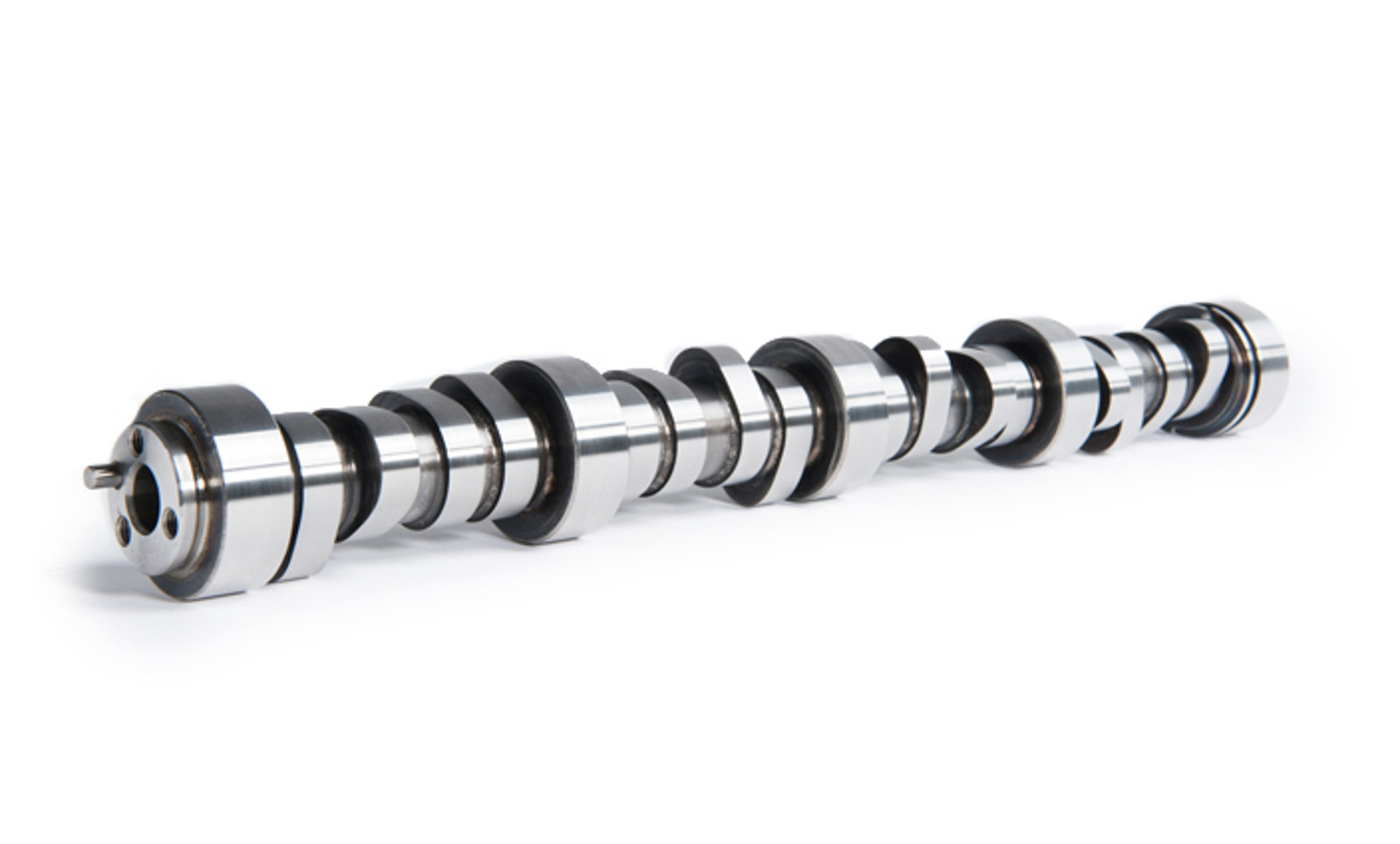

The Junkyard Dog \"Single Plane\" Rectangle Port cam is an aggressive and powerful camshaft created for aggressive street performance and street-strip applications where a carburetor or single plane intake manifold is used with rectangle port heads. This camshaft is an excellent choice for enthusiasts who want to hotrod or race a stock short block. This camshaft is designed to get maximum performance out of a single plane equipped 6.0 to 6.2 liter stock short block while still maintaining acceptable valve clearance without fly-cutting the pistons in rectangle port engines. However, it is still the owner\'s/engine builder\'s responsibility to verify sufficient clearance during installation. Also, milling of the heads, installing thinner head gaskets or installing larger diameter valves will reduce your piston to valve clearance. The Junkyard Dog Single Plane Camshaft has a very lopey idle. This camshaft is designed to be used for vehicles equipped with headers, high flow exhaust, increased stall speed torque converter and increased rear axle ratios.
The The Junkyard Dog Single Plane cam is designed with our renowned smooth cam lobe design that provides quiet valve train operation and excellent upper rpm stability. Cam Motion offers this cam in 5150, 8660 and our top of the line 8620 camshaft cores.
Recommended Accessories:
•Cam Motion .660\" Lift Dual Valve Spring Kit
•Cam Motion 5/16\" .080\" Wall Hardened Chromoly Pushrods
Brand: Cam Motion Type: Camshaft Manufacturer Part Number: 03-01-0077 Performance Part: Yes Shipping
Items are shipped within 24 hours of purchase Monday-Friday.
Payments
We accept all major credit cards
Returns
Returns can be opened via within 30 days of purchase date.
