Premium Quality Replacement Part

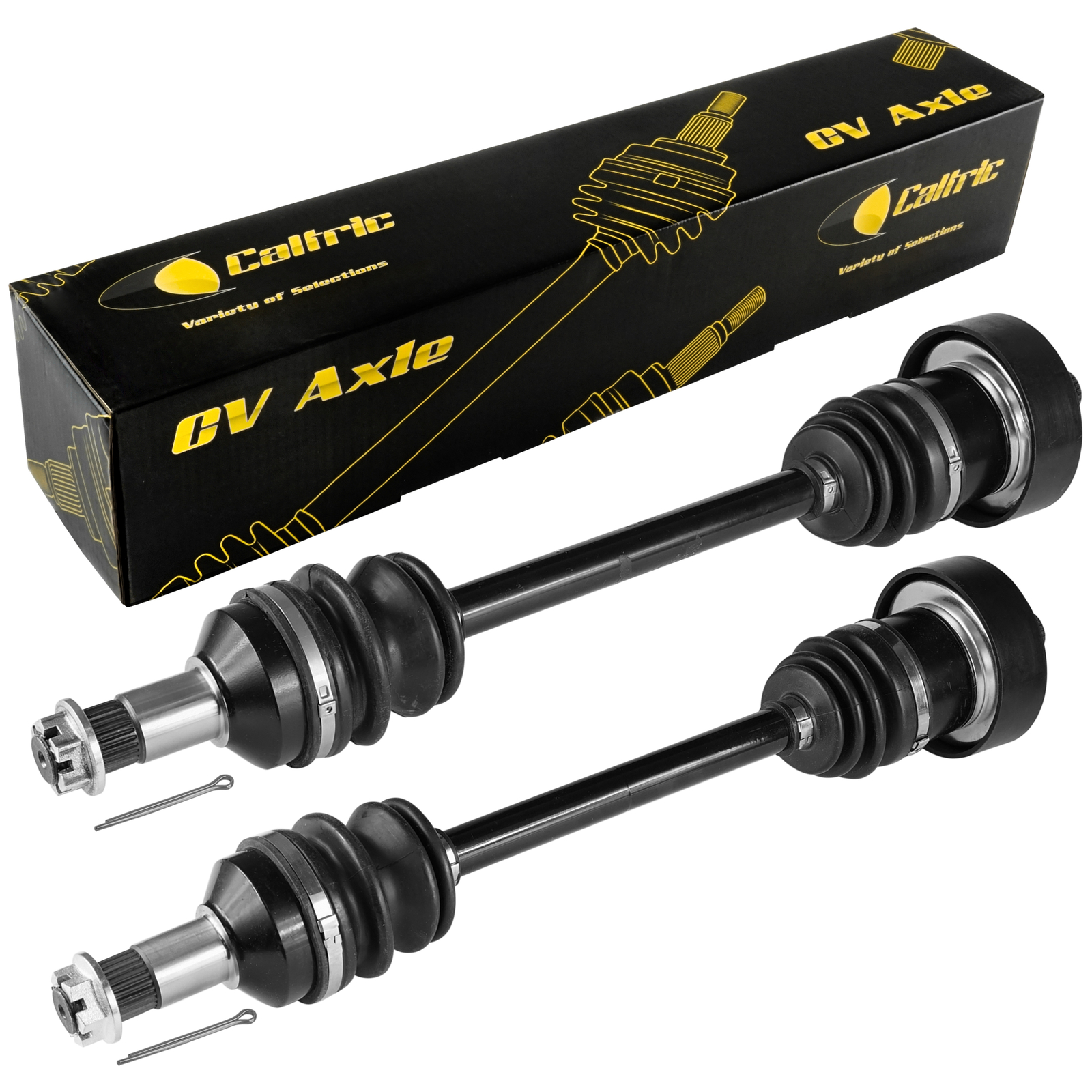

Front Left and Right Complete CV Joint Axle
Compatible with Arctic Cat Models:
1000 4x4 Automatic Mud Pro 2010
1000 Mudpro H2 2010
1000 Mudpro H2 Intl 2010
1000 Thundercat 2008-2009
1000 Thundercat H2 Le 2010
1000 Trv H2 Efi 2010
1000 Trv H2 Efi Cruiser 2010
1000 Trv H2 Efi Cruiser Intl 2010
1000 Trv H2 Efi Intl 2010
400 4x4 Auto 2006-2008
400 4x4 Le Auto 2006-2007
400 4x4 Man 2006-2008
400 4x4 Tbx Auto 2006
400 4x4 Trv 2006-2007
400 4x4 Trv 2011
400 4x4 Trv Core 2013-2014
400 4x4 Trv Core Intl 2013-2014
400 4x4 Trv H1 2010
450 4x4 2011-2012
450 4x4 Gt 2012
450 4x4 Gt Intl 2012
450 4x4 H1 Efi 2010
450 4x4 H1 Efi Intl 2010
450 4x4 Intl 2011-2012
450 4x4 Trv 2011-2012
450 4x4 Trv Gt 2012
450 4x4 Trv Gt Intl 2012
450 4x4 Trv Intl 2011-2012
500 4x4 Auto 2006-2009
500 4x4 Auto Le 2006
500 4x4 Man 2006-2009
500 4x4 Tbx Auto 2006
500 4x4 Trv 2008
500 4x4 Trv Auto 2006
500 4x4 Trv H1 2009
500 4x4 Trv H1 Efi 2010
500 4x4 Trv H1 Efi Intl 2010
500 4x4 Trv H1 Le 2009
550 4x4 2011-2012
550 4x4 Cruiser Ps 2011
550 4x4 Cruiser Ps Intl 2011
550 4x4 Gt 2012
550 4x4 H1 2009
550 4x4 H1 Efi 2010
550 4x4 H1 Efi Intl 2010
550 4x4 H1 Le 2009
550 4x4 Intl 2011-2012
550 4x4 Ps 2011
550 S Efi 2010
550 S Efi Intl 2010
550 S Trv Efi 2010
650 4x4 2011
650 4x4 Fis V-Twin Auto 2006
650 4x4 Fis V-Twin Auto Tony Stewart Edition 2006
650 4x4 H1 2008-2010
650 4x4 H1 Fis 2007
650 4x4 H1 Fis Le 2007
650 4x4 H1 Intl 2010
650 4x4 H1 Mudpro 2010
650 4x4 H1 Se 2006
650 4x4 H1 Tbx 2007
650 4x4 H1 Trv 2007-2009
650 4x4 H1 Trv Le 2007
650 4x4 Intl 2011
700 4x4 Diesel 2007-2008
700 4x4 Efi 2008
700 4x4 Efi Auto 2007
700 4x4 Efi Auto Le 2007
700 4x4 Efi Le 2008
700 4x4 H1 2009
700 4x4 H1 Cruiser 2009
700 4x4 H1 Efi 2008
700 4x4 H1 Le 2009
700 4x4 H1 Se 2009
700 4x4 Se Efi 2006
700 4x4 Super Duty Diesel 2010-2014
700 4x4 Tbx Gt 2012
700 4x4 Tbx Gt Intl 2012
700 4x4 Tbx H1 Efi 2010
700 4x4 Tbx H1 Efi Intl 2010
700 4x4 Tbx Ltd 2011
700 4x4 Tbx Ltd Intl 2011
700 4x4 Tbx Xt 2013-2014
700 4x4 Tbx Xt Intl 2013-2014
700 4x4 Trv Cruiser 2012
700 4x4 Trv Cruiser Intl 2012
700 4x4 Trv Cruiser Ps 2011
700 4x4 Trv Efi Cruiser 2008
700 4x4 Trv Efi Le 2008
700 4x4 Trv H1 Efi 2010
700 4x4 Trv H1 Efi Cruiser 2010
700 4x4 Trv H1 Efi Cruiser Intl 2010
700 4x4 Trv S Efi 2010
700 4x4 Trv S Efi Intl 2010
Trv 1000 2009-2010
Order Includes:
1x Front Right Axle: 1502-874, 0502-812,
1502-344, 1502-800
Length: 566 mm - 22.3 in
Spline A Length: 19.7 mm - 0.77 in - 27 Tooth,
Boot Width: 77.3 mm - 3.0 in
Spline B Length: 31.4 mm - 1.2 in - 24 Tooth,
Boot Width: 74.3 mm -2.9 in
1x Front Left Axle: 1502-873, 0502-813, 1502-345,
1502-799
Length: 574 mm - 22.6 in
Spline A Length: 18.8 mm - 0.74 in - 27 Tooth,
Boot Width: 70.8 mm -2.7 in
Spline B Length: 31.8 mm - 1.2 in - 24 Tooth,
Boot Width: 73.1 mm -2.8 in
