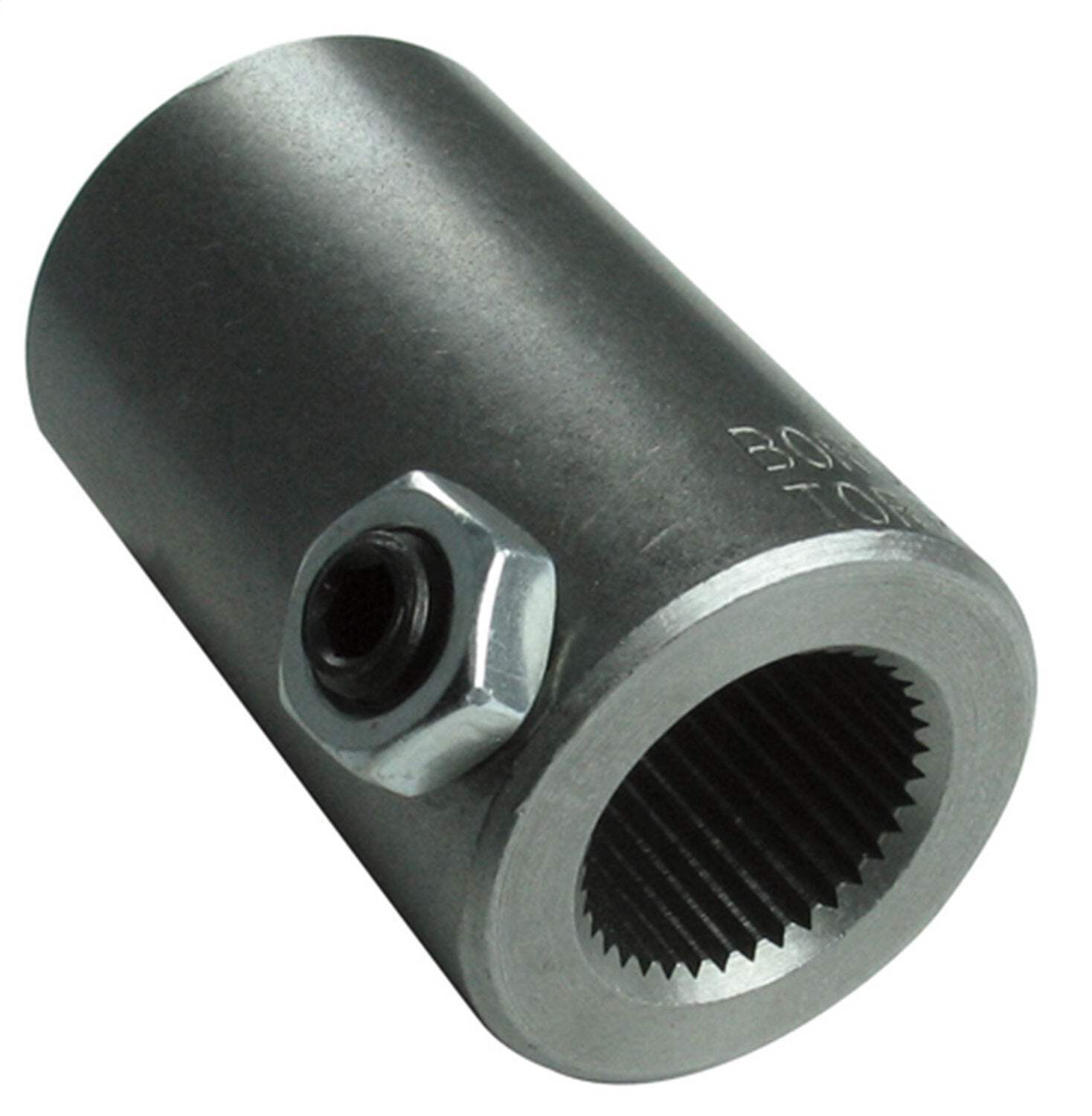

Template Borgeson - Steering Coupler - P/N: 312500 - Steel Steering Coupler. Fits 11/16 In.-36 Spline X 3/4 In. Smooth Bore. Price: $ 21.49
Using a 2\" straight extension, called a coupler, to extend the steering box, R&P shaft or the column shaft, can sometimes eliminate a universal joint. The coupler can be welded or pinned to the un-splined end of a shaft. The 1\"- 48 and 1\" DD couplers have a 1-1?4\" hole that will accept either an adapter to reduce inside diameter to 3/4\" smooth or another splined or 3/4\" DD coupler. The coupler assembly would have to be pinned and/or welded together. Welding the coupler is acceptable because there are no moving parts to damage, and the coupler\'s steel is less susceptible to heat damage from welding. Couplers are available in the same spline and Double D sizes as our universal joints. Couplers and adapters are available in steel and stainless steel only.
- Smaller diameter than a universal joint. Rigid steel couplings do not count as a pivot point. Joins two shafts to create an extension. Safe to weld. Precision machined from solid billet steel. Made in the USA.
Attributes:
Brand Name: Borgeson
GTIN: 00843975012766
CA Prop 65 Required: Y
Color: Natural Steel
End 1 Diameter: .6875
End 1 Gender: Female
End 2 Diameter: .750
End 2 Gender: Female
Grade Type: Performance
Length: 2.00
Material: Steel
Shaft End 1: 11/16 in. 36-spline
Shaft End 2: 3/4 in. without splines
Spline Quantity: 36
Extended Information:
Country of Origin: US
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packing Information:
Quantity of Each: 1
Package UOM: EA
Dimension: 1.75 x 3.75 x 5.75 inches
Weight: 0.28 lb
