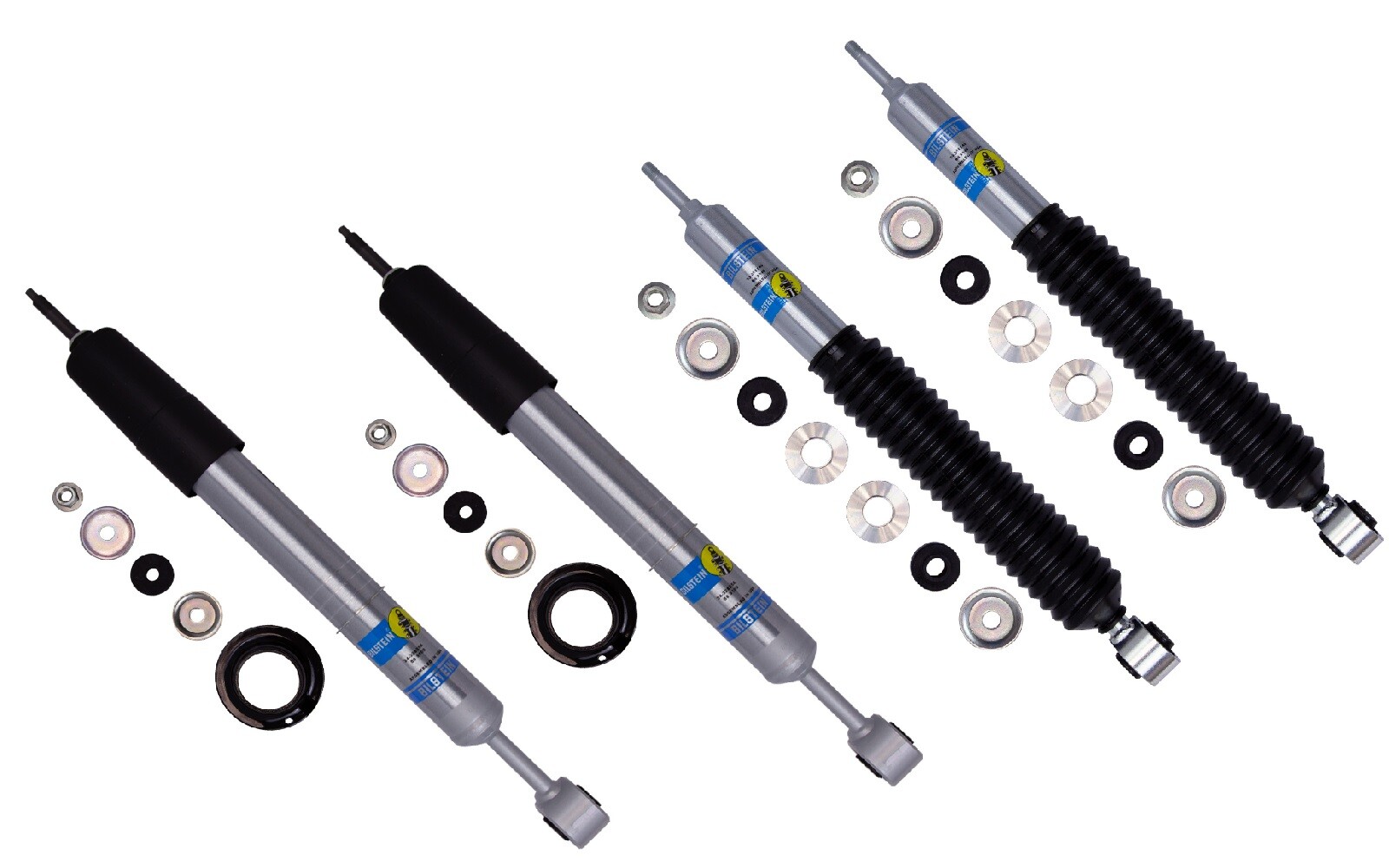

Bilstein B8 5100 Front & Rear Shock Absorbers for GX460 GX470 4Runner Set of 4 PART NUMBER: 24-328258 / 33-313146
BRAND: Bilstein DESCRIPTION Bilstein 24-328258 B8 5100 Front Suspension Shock Absorber
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and controlon and off the road. These shocks also have split compression and rebound valving tuned for each specific application.
- 2 in. seamless extruded tube
- 14mm centerless-ground, case-hardened, chromed, and super-polished rod
- 46mm Bilstein digressive piston
- Self-adjusting, deflective-disc independent rebound and 2
- Collapsed Length (IN): 17.50
- Extended Length (IN): 22.31
- Collapsed Length (MM): 444.6
- Extended Length (MM): 566.8
- Finish: Zinc Plated
- Reservoir: No
- Body Design: Snap Ring Grooved Body (Coilover)
- Body Diameter: 46mm
- Spring Seat Included: Yes
- Adjustable Damping: Non-Adjustable
Bilstein 33-313146 B8 5100 Rear Suspension Shock Absorber
Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
Bilstein B8 5100 Series shocks feature a monotube design for cooler, more efficient operation and longer life. They have the largest available piston diameter, providing superior handling and performance. The shocks' patented digressive valving instantly reacts to changing surface conditions for maximum comfort and controlon and off the road. These shocks also have split compression and rebound valving tuned for each specific application.
- 2 in. seamless extruded tube
- 14mm centerless-ground, case-hardened, chromed, and super-polished rod
- 46mm Bilstein digressive piston
- Self-adjusting, deflective-disc independent rebound and 2
- Collapsed Length (IN): 14.91
- Extended Length (IN): 23.03
- Collapsed Length (MM): 378.8
- Extended Length (MM): 585.0
- Finish: Zinc Plated
- Reservoir: No
- Body Design: Smooth Body (Non-Coilover)
- Body Diameter: 46mm
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
VEHICLE COMPATIBILITY 2023 Toyota 4Runner 40th Anniversary Edition RWD Provides 0-2.5" Front Lift; Fits Vehicles With 0.5-2" Rear Lift2023 Toyota 4Runner 40th Anniversary Edition 4WD Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2010-2023 Toyota 4Runner SR5 4WD Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2010-2023 Toyota 4Runner SR5 RWD Provides 0-2.5" Front Lift; Fits Vehicles With 0.5-2" Rear Lift2018-2023 Toyota 4Runner SR5 Premium 4WD Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2018-2023 Toyota 4Runner SR5 Premium RWD Provides 0-2.5" Front Lift; Fits Vehicles With 0.5-2" Rear Lift2010-2016 Toyota 4Runner Trail Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2021-2022 Toyota 4Runner Trail 4WD Provides 0-2.5" Front Lift; Fits Vehicles With 0.5-2" Rear Lift2021-2022 Toyota 4Runner Trail RWD Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2017-2019 Toyota 4Runner TRD Off-Road Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2020-2023 Toyota 4Runner TRD Off-Road 4WD Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2018-2019 Toyota 4Runner TRD Off-Road Premium Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2020-2023 Toyota 4Runner TRD Off-Road Premium 4WD Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2020-2022 Toyota 4Runner Venture Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2010-2013 Toyota FJ Cruiser Base Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2014 Toyota FJ Cruiser Base Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift; Without Ultimate Edition Package2010-2023 Lexus GX460 Base Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift2023 Lexus GX460 Black Line Edition Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift; Requires Rear Coil Spring Conversion2014-2023 Lexus GX460 Luxury Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift; Requires Rear Coil Spring Conversion2010-2013 Lexus GX460 Premium Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift; Requires Rear Coil Spring Conversion2014-2023 Lexus GX460 Premium Provides 0-2.5" Front Lift; Fits Vehicles With 0-2" Rear Lift
