Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 18" x 24" - Overall (H x W): 20" x 29" - Hose Locations (In x Out): Pass x Pass - Hose Fittings (In x Out): 1.5" x 1.75"Please click on the "Read more" link below to view a complete item description with product videos and additional items to upgrade your cooling system.
PART Us Part Information Related Items Genuine Champion Cooling Systems Part #UN24-DP Features Specifications
- Down Flow Or Cross Flow Type: Cross Flow
- Mounting Type: Saddle
- Tank Material: Aluminum
- Core Material: Aluminum
- Overall Height: 20
- Overall Width: 29
- Core Height: 18
- Core Width: 24
- Inlet Location: Passenger
- Inlet Diameter: 1 1/2
- Outlet Location: Passenger
- Outlet Diameter: 1 3/4
- Core Row Quantity: 3 Row
- Internal Transmission Oil Cooler: No
- Filler Neck Attached: Yes
- Core Thickness: 2 1/4
- Core Tube Width: 0.63
- Tank Width: 3

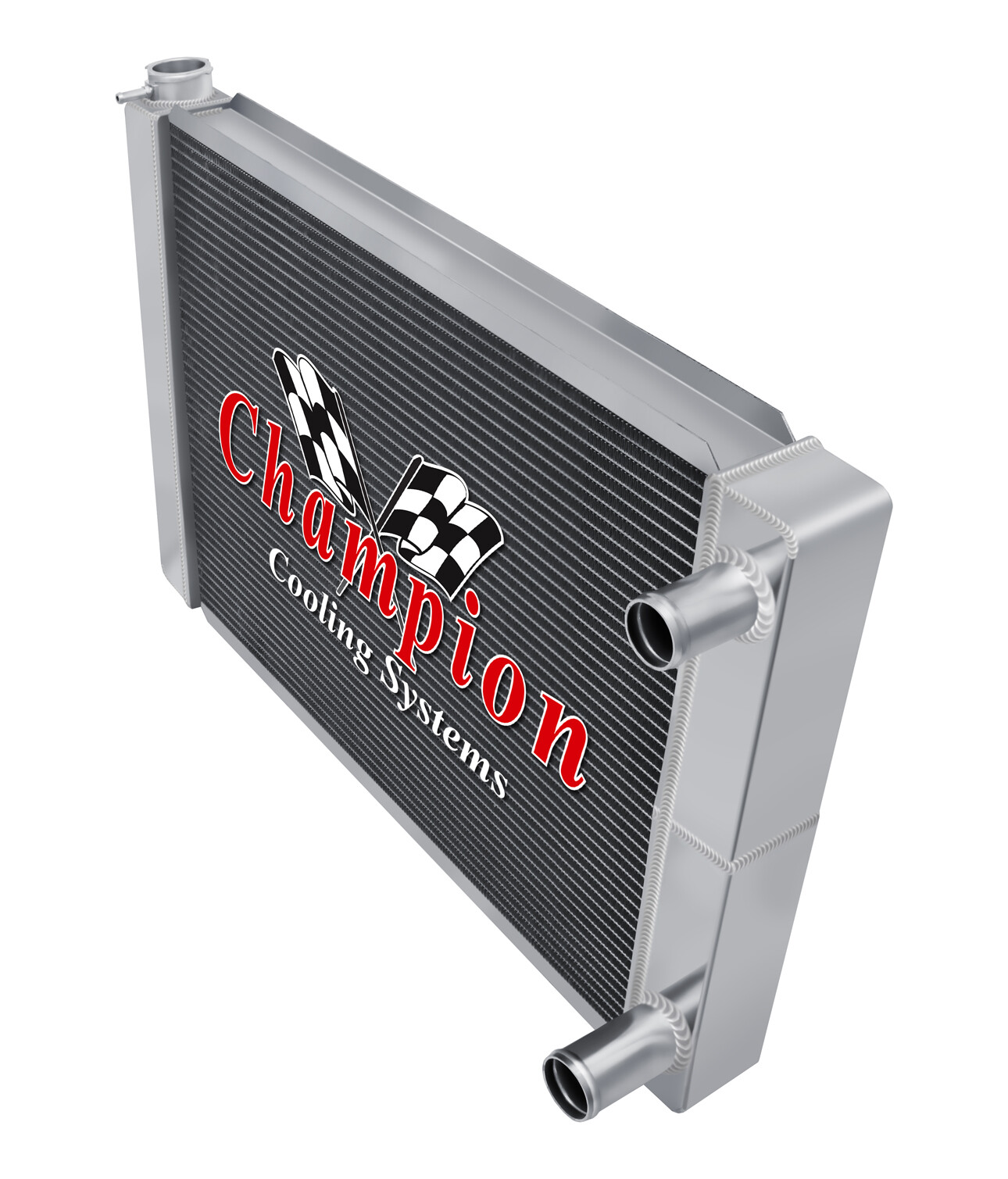

This package includes a 24" Wide 3 Row Universal Series Radiator.
Champion Cooling Systems radiators are manufactured at their ISO certified facility.
They are made to high standards of quality and workmanship using the Highest Grades of aluminum available and are constructed with 100% welded seams, brazed core technology and no epoxy.
They come with a Lifetime Limited Warranty and are made to install with little or no modifications using your Original Mounts giving you the confidence you desire.
Shipping Shipping
FedEx Ground Service to the Lower (48) States: FREE SHIPPING.
**(Hawaii and Alaska $65.00 Additional Shipping Charge).
International Shipments are via FedEx International (See Shipping Drop Box For Prices).
Payment Guarantee Policies
CHAMPION COOLING SYSTEMS
Return and Exchange Policy
Shipping damages/Lost items:Upon receipt of the received item, Customer is responsible for inspecting the item, along with all contents in shipment, to verify and validate items are free of damage and/or defect(s).
An RMA must be submitted within 14 days from the date of shipment if the item was lost or damaged during shipping. Once the RMA is submitted Champion will issue a call tag to return the item and when the radiator is received and shipping damage is verified Champion will submit a claim with the shipping carrier. Exchanges or refunds will be processed after an RMA is submitted and shipping damage or lost item is verified. If upon inspection shipping damage cannot be verified the item(s) will be returned to the customer. An RMA submitted after 14 days from the date of shipment for shipping damages or lost item will not be approved and the distributor or end user assumes full responsibility.
Buyer is responsible for ALL shipping costs to return item to Manufacturer and/or Dealer.
Exceptions are to include:
- Shipping Damage
- Manufacturer's Defect
- Customer was shipped an item other than what was originally ordered
All returns and exchanges will be processed after the item has been returned and the RMA approved and completed. Allow approximately 2-4 business days from the date the item is returned for an RMA to be processed and completed and allow up to 3 weeks from the date the RMA is completed for a credit or refund to be issued. Refunds and/or credits will be issued in the form of original payment or applied to your account.
If an exchange item is needed before the RMA has been processed then the item will need to be purchased, via credit card (no invoicing), and then refunded after the RMA is approved and completed.
Return packages must be sent shipping charges prepaid unless the wrong part was shipped due to Champion's error then a call tag will be issued at Champion's expense. If our drop shipping service was used then a new exchange item will be shipped at no charge. If the distributor's shipping account was used for the original shipment then their account will be used again for the exchange shipment.
Call tags will only be initiated one time with the pickup scheduled for 2 business days from the date the call tag is initiated. If the carrier is not able to pick up the item for any reason it is then the responsibility of the dealer or end user to ship the item back. If the dealer or end user cannot accommodate the carrier's pickup schedule then the dealer or end user is responsible to ship the item back.
All items returned for reasons other than leaking or did not cool, must be returned in its original packaging and condition.
Items returned without customer's information or RMA number will not be processed for a refund or exchange and will be disposed of in 30 days.
The distributor or end user will also be responsible for price adjustments, if any. If the cost of the exchange item is less than a credit will be issued.
