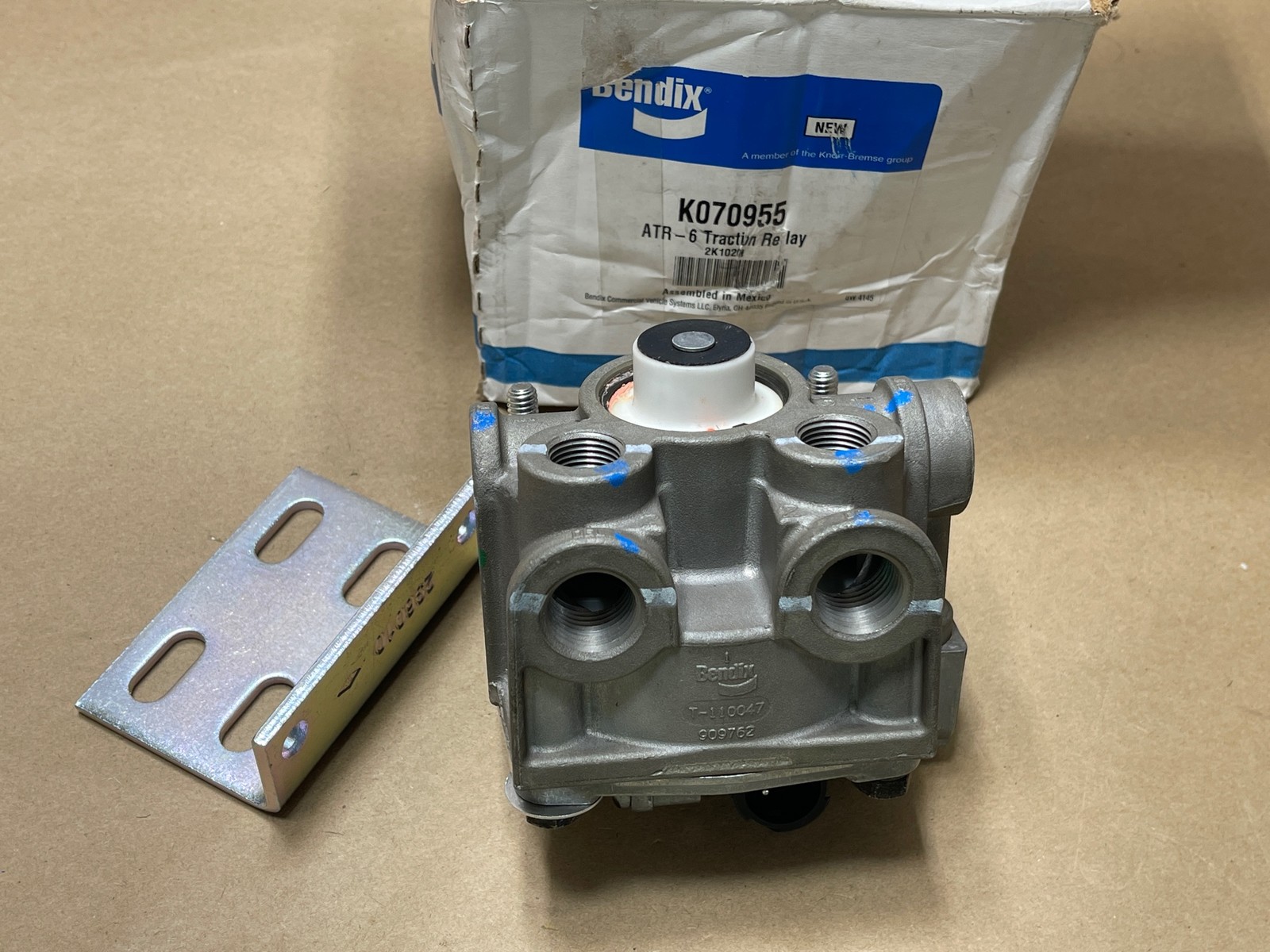

Bendix K070955 ATR-6 Traction Relay Bendix K070955 ATR-6 Traction Relay
This is for 1 Bendix K070955 ATR-6 Traction Relay
Product Description
Air brake parts can fail after miles of overuse - usually from tapping brakes on steep inclines that lead to overheating. Brake parts including brake pads, camshafts and relay valves can be replaced after 30,000+ miles. While some parts may last longer, it is important to always perform routine maintenance to care for the components that make up air brake systems. When in need of replacement parts, turn to Bendix, a trusted leader in air brake technology.
This 12 volt relay valve is designed for select heavy-duty applications.
Cross Reference
060-K070955, K070955, K048050,K070702, K048107, K048050, K070702
Mounting - .40 IN x .96 IN Slots (4x) Mounting Bracket Location - Bracket loose in box Connector Type - 2-Way Circular DIN (ISO 15170-1 Twist-Lock) Body Configuration - 2 SUP / 4 DEL (2H + 2V) Supply Port 1 - 1/2-14 NPT Supply Port 2 - 1/2-14 NPT Internal Supply Passage to Cover - Yes Control Port - 1/4-18 NPT Control Port Orientation (CW from Front Face) - 90° Delivery Port 1 - 1/2-14 NPT Delivery Port 2 - 1/2-14 NPT Delivery Port 3 - 3/8-18 NPT Delivery Port 4 - 3/8-18 NPT Exhaust Port - Dust Shield Crack Pressure - 5.5 PSI TMC Washer - RV055 Voltage (Nominal) - 12 Volts Maximum Operating Temperature - 185 °F (85 °C) Minimum Operating Temperature - -40 °F (-40 °C) Cautionary Note(s) - Use caution when positioning solenoid connector.
