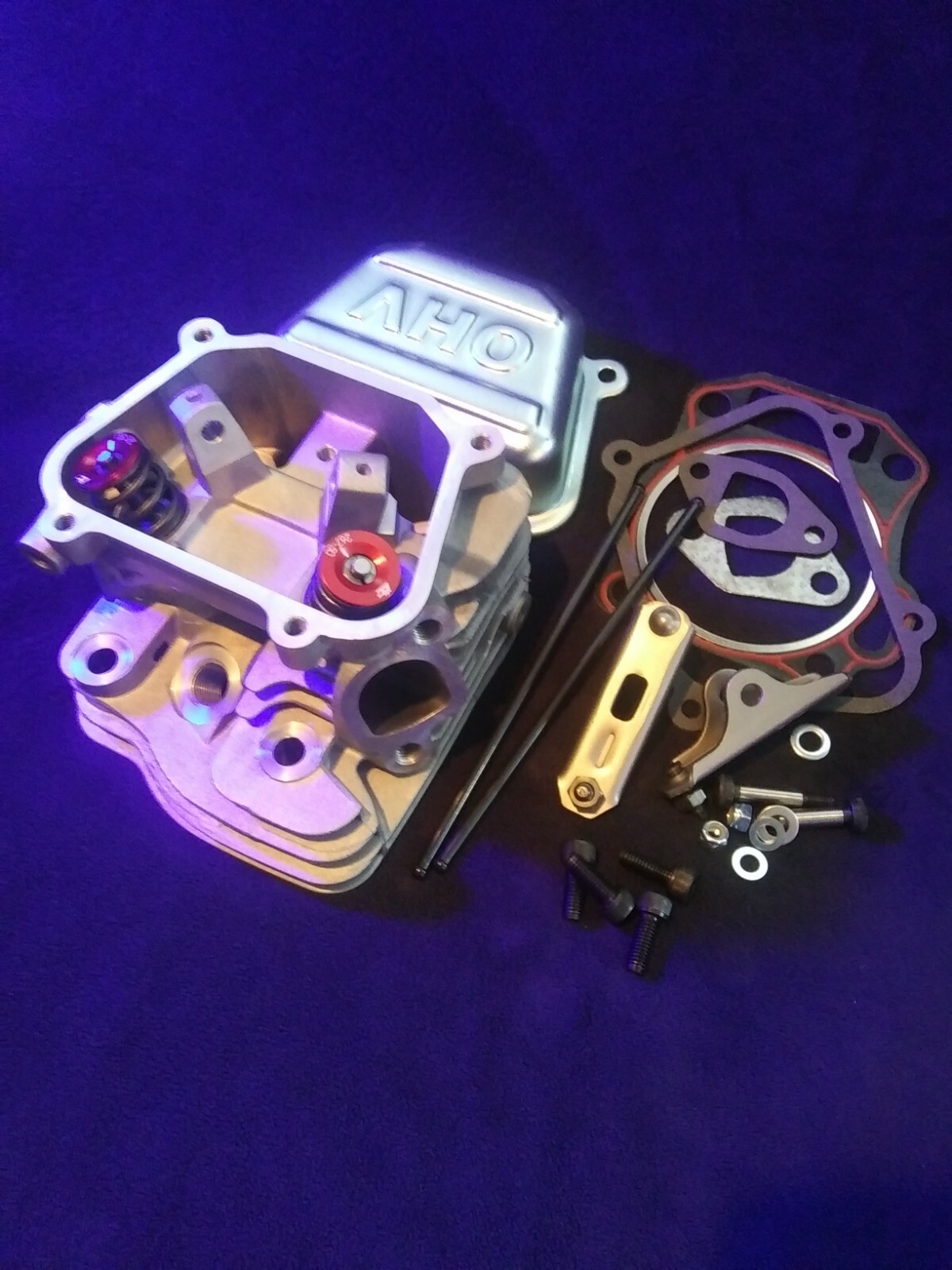

NEW MODIFIED GHOST 212cc HEMI HEAD - TILLOTSON. valves are at 20deg (predator hemi are 12.5deg) for better flow. will fit gx200 honda, 196cc clone and 212cc predator and tillotson alike engines with 10 mm dowels.oversized 29mm intake and 25mm exhaust nitrate coated valves rated at 150lbs open spring pressure. the nitrate coating helps reduce friction and heat.Due to the differences in cam base circles, deck heights, head milling, gasket thickness, rocker arms, etc., actual pushrod length can vary. as with all hemi heads check for piston to valve contact and cut valve reliefs if need. I can drill dowel holes to 11mm to fit the old style genlll predator 69730 at your request for no extra charge. listed with stock photos.****DUAL SPRING OPTION****
Replace the 26lbs springs with 32 or 36lb dual springs is an option. we can cut the spring seats and install springs with black heavy-duty retainers and keepers for additional $55 message me before checkout and we will change the listing to include this option. the 32lb springs are typically used for the 308 cams
- 29mm High Flow lightweight Intake Valve (stock are 27)
- 25mm High Flow lightweight Exhaust Valve (stock are 24)
- 5.830" length push rods
- 26lbs valve springs
- 1:1.1 hemi rocker arms (adds 10% to cam lift)
- new valve guides
- rocker arm hardware
- red billet aluminum retainers
- racing split stylekeepers
- milled 0.050"
- cut valve seats to except oversized valves
- polished 18cc combustion chamber
- ported around short radius and valve pocket - see pictures
- 3 angle valve job(lapped in new valves)
- steel valve cover
- valve cover gasket
- head gasket
- intake gasket
- exhaust gasket
- valve cover bolts
