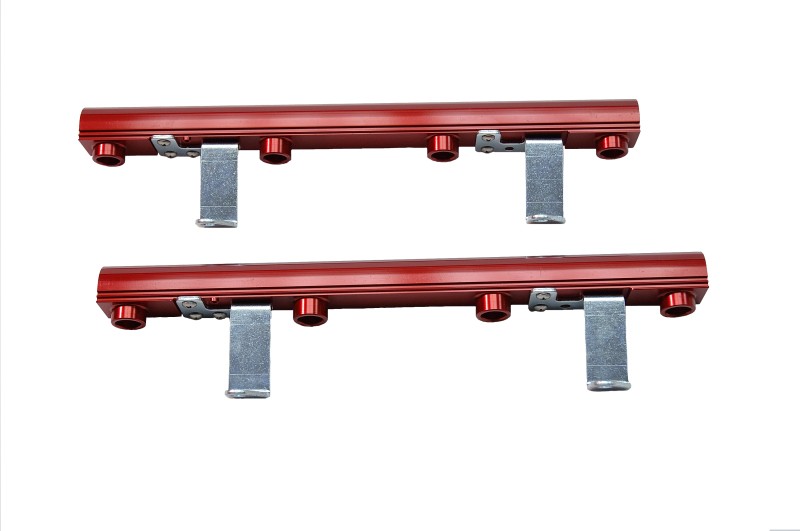

Aeromotive 14104 Billet Fuel Rails for 1996-1998 Ford Mustang Cobra 4.6L DOHC For Sale - New and Used

- AUTHORIZED DEALER
- AUTHENTICPART

Part Brand: Aeromotive

Part Number: 14104

Vehicle Fitment

• 1996–1998½ Ford Mustang SVT Cobra (4.6L DOHC)

Fitment Notes

• This kit fits the 4.6L DOHC engine found in the 1996–1998½ SVT Cobra specifically. It is not compatible with the 4.6L SOHC engine used in the Mustang GT of the same years — that application uses Aeromotive PN 14103 (96–04 4.6L SOHC GT fuel rails). It is also not compatible with the 5.0L pushrod engine used in the 86–95 Mustang GT and Cobra — that application uses Aeromotive PN 14101.
• The \"1998½\" designation refers to the mid-year SVT Cobra produced by Ford with the DOHC engine configuration. Buyers with a 1998 Mustang should confirm their engine is the DOHC variant before ordering.
• This listing is for rails only. The kit does not include a fuel pump, pressure regulator, fuel filter, or fuel lines. These rails are intended for use as part of a complete aftermarket or upgraded return-style fuel system.
• The rails use ORB-08 (8 AN O-ring boss) ports. For builds using -10 AN fuel line, the Aeromotive ORB-08 to AN-10 adapter (PN 15641, sold separately) is required to connect -10 AN hose to the rail ports.
• These rails are compatible with injectors from 19 lb/hr (stock-range) through 160 lb/hr, covering everything from a mildly modified street Cobra to a fully built high-horsepower race application. The 5/8\" full through-bore ensures that injector flow is never the limiting factor in the fuel system, regardless of injector size.
• Steel mounting brackets are custom-engineered for the 1996–1998½ Cobra DOHC engine and allow direct bolt-on installation to the factory intake manifold mounting bosses without modification.
• This product is not legal for sale or use on emissions-controlled vehicles except as a direct OEM-specification replacement. It is not CARB-exempt and is not legal for sale or use in California.

Features

• Aeromotive\'s billet fuel rail design addresses the primary flow limitation of factory fuel rails: internal bore diameter. OEM fuel rails use relatively small-diameter internal passages that restrict fuel flow at high injector duty cycles and high fuel demand — a bottleneck that becomes significant as injector size, boost pressure, or engine power increases. The 14104\'s 5/8\" full through-bore maintains consistent fuel pressure and volume across the entire injector bank regardless of power level, rated to support up to 3,000 HP of fuel delivery.
• Full-size ports at both ends of each rail ensure that fuel enters and exits at equal pressure, minimizing the hydraulic differential between the first and last injector in the bank. In factory rails with a single inlet, fuel pressure drops from the inlet end to the far end of the rail under high-demand conditions, causing the injectors farthest from the inlet to receive slightly less fuel than those closest to it — an imbalance that the Aeromotive design eliminates. Additional inlet/outlet ports are machined where the application requires them for flexible plumbing arrangements.
• ORB-08 (8 AN O-ring boss) ports provide a positive, leak-free connection sealed by an O-ring against a machined face — superior to NPT pipe thread connections, which rely on thread sealant and can loosen under thermal cycling. The O-ring boss connection maintains a reliable, high-pressure seal without the risk of loosening or thread sealant contamination of the fuel system.
• CNC-machined billet aluminum construction delivers precise fitment, a high-quality finish, and dimensional consistency that is not achievable with extruded or cast fuel rail designs. Each rail is machined to tight tolerances for correct injector cup spacing and bracket boss locations specific to the 1996–1998½ Cobra DOHC engine.
• The red Type II bright-dip anodized finish provides corrosion resistance against both fuel and underhood moisture while providing a visually distinctive appearance consistent with other Aeromotive billet components.
• Steel mounting brackets are custom-engineered for the 1996–1998½ DOHC Cobra application, using the factory mounting boss locations for a true bolt-on installation that requires no drilling, cutting, or chassis
• Part Number: 14104
• Brand: Aeromotive
• Type: Billet Aluminum Fuel Rail Kit — Rails Only
• Fitment: 1996–1998½ Ford Mustang SVT Cobra, 4.6L DOHC
• HP Rating: Up to 3,000 HP flow capacity
• Internal Bore: 5/8\" full through-bore
• Ports: ORB-08 (8 AN O-ring boss) — inlet, outlet, and additional plumbing ports
• AN-10 Compatibility: Via Aeromotive ORB-08/AN-10 adapter PN 15641 (sold separately)
• Injector Range: 19 lb/hr to 160 lb/hr
• Construction: CNC-machined billet aluminum
• Finish: Red, Type II bright-dip anodized
• Mounting Brackets: Steel, custom-engineered for 1996–1998½ Cobra DOHC — included
• Emissions: Not CARB-exempt; not legal for emissions-controlled vehicles or California sale/use
• UPC: 684980002256
• Shipping Weight: 2.15 lbs
• Package Dimensions: 18\" L × 7\" W × 1.75\" H

Included Components

• Aeromotive billet aluminum fuel rail set (pair) for 1996–1998½ Ford Mustang Cobra 4.6L DOHC
• Steel mounting brackets (custom-engineered for this application)
• Not included: Fuel pump, pressure regulator, fuel filter, fuel lines, AN fittings. For -10 AN line compatibility, add Aeromotive PN 15641 adapter (sold separately).

Product Description

The Aeromotive 14104 is a billet aluminum fuel rail kit for the 1996–1998½ Ford Mustang SVT Cobra with the 4.6L DOHC engine. It is a rails-only kit — not a complete fuel system — and is designed to replace the factory fuel rails as the first step in building or upgrading a high-performance or high-horsepower return-style EFI fuel system on this platform.

The core specification is the 5/8\" full through-bore — substantially larger than the factory rail\'s internal passage — which allows the rails to flow enough fuel to support up to 3,000 HP without restriction. Full-size ORB-08 ports at both ends of each rail provide equal fuel pressure supply across the entire injector bank, eliminating the pressure gradient that occurs in single-inlet OEM rails under high fuel demand. The ORB-08 O-ring boss connections are leak-resistant under sustained high-pressure cycling, and the rails are compatible with -10 AN fuel line through the use of Aeromotive\'s PN 15641 ORB-08 to AN-10 adapter, sold separately.

CNC-machined from billet aluminum with a red Type II bright-dip anodized finish, these rails are finished to the same standard as all Aeromotive billet components. The included steel mounting brackets are custom-engineered for the 1996–1998½ Cobra DOHC application and bolt directly to the factory intake manifold mounting bosses with no drilling or modification required. Not legal for emissions-controlled vehicles; not CARB-exempt; not for California use.

*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
