Aeromotive 13140 Aluminum A1000 Gen-II EFI Fuel Pressure Regulator (NEW) For Sale - New and Used

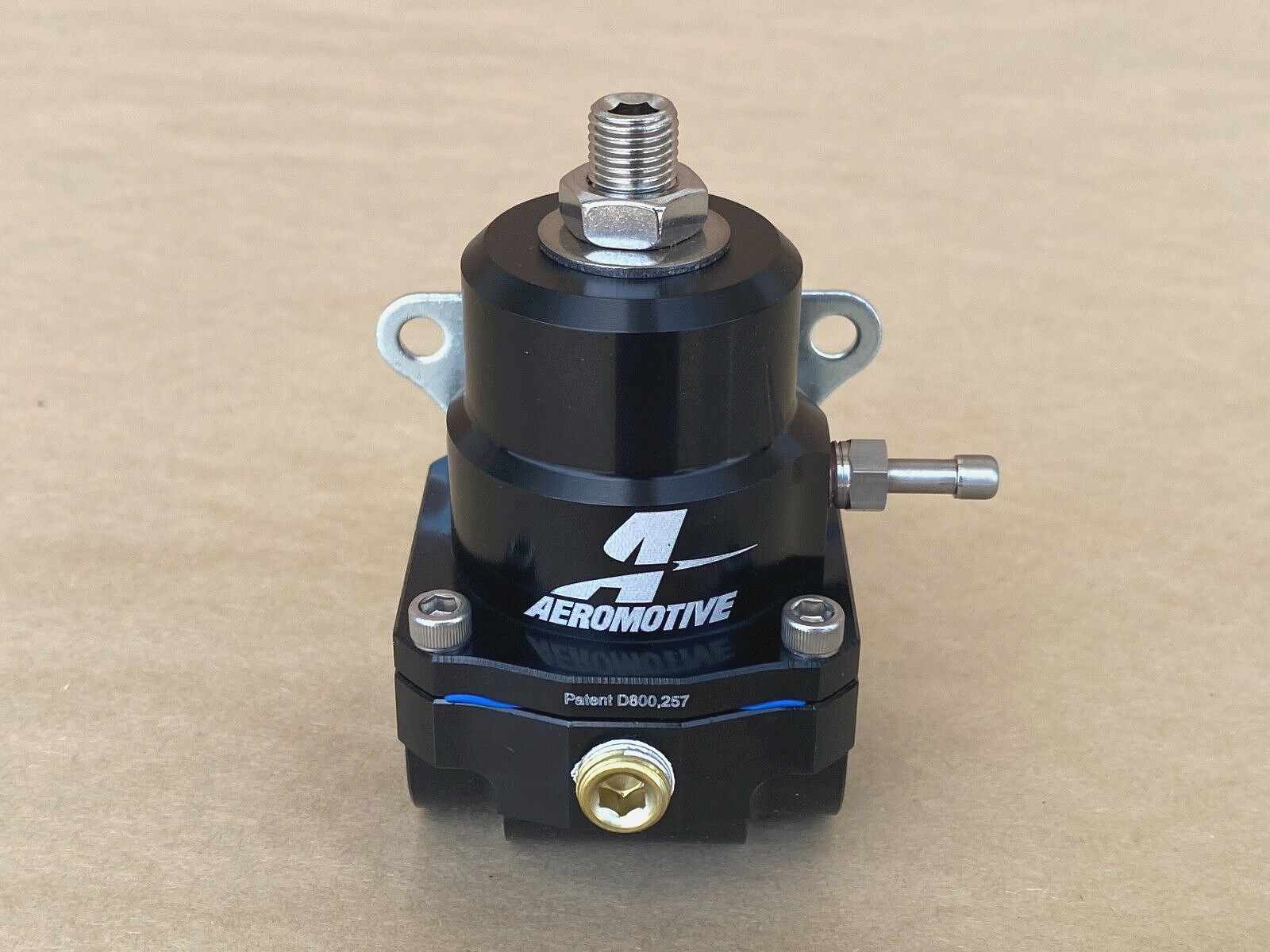

Aeromotive 13140 Aluminum A1000 Gen-II EFI Fuel Pressure Regulator
Part #13140
High Performance, adjustable EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive’s high-flow design, superb pressure control and legendary durability. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
Aeromotive Features

• Engineered for A1000 class and smaller pumps.
• Gas, ethanol, methanol and diesel compatible.
• 40-75 PSI adjustable base pressure range.
• 1:1 vacuum/boost reference capability.
• 1/8″ NPT dedicated gauge port.
• (2) ORB-08 inlet/outlet ports
• (1) ORB-06 return port.
• Patent No. D763,409

Aeromotive Specs:

• Regulator Pressure (psi):40-75
• Regulator Style:Return
• Regulator Location:Inline
• Boost/Vacuum Reference Port:Yes
• Boost/Vacuum Rise Ratio:1:1
• Gauge Port:Yes
• Inlet Quantity:2
• Regulator Inlet Size:-10 AN
• Inlet Attachment:Female straight cut O-ring
• Outlet Quantity:1
• Regulator Outlet Size:-10 AN
• Outlet Attachment:Female straight cut O-ring
• Return Fitting Size:-6 AN
• Return Attachment:Female straight cut O-ring
• Fittings Included:No
• Regulator Material:Aluminum
• Regulator Finish:Black anodized
• Rebuildable:Yes
• Mounting Bracket Included:No

---
