AUXBEAM 6x 5\" LED Driving Lights Pods Work Spotlights Lamp & 6 Pods Power Wiring For Sale - New and Used

qazws_72 Welcome Product Description

LED Driving Lights 5 Inch Round 172W Hyper Spot Beam Work Amber Spotlights Pod with Double-Side Shooter Lights with Amber DRL with DT Plug Wiring Harness（2 cool engineering beam pattern design, nice performance even in foggy days.

-Nice fitment, easily replaces old dull filament light.

- Fast and effectively cool down the heat.

-Easy installation, just plug & play.

-Faster on/off response time and vibration energy saving, no UV and IR radiation, shock-proof and anti-corrosion.

• 【TRUSTWORTHY VISUAL BRIGHTNESS】Employ industry-leading P8 LED chips, total outputs 172W of power, emitting a 20400LM and remarkable 400% increase in lumen flux, bring a new experience to our travel. besides, High-efficiency reflective design ensures focused lighting, eliminating blind spots and guarantee driving safety to the greatest extent.
• 【DRIVING VISION】Moving beyond traditional LED lamps that only offer front lighting, we\'ve innovatively added a double side light design to our product. Combined with the point flood light beam, it provides a comprehensive 270-degree light coverage, ensuring clearer, wider, and further visibility.
• 【MULTIFUNCTIONAL & COST-EFFECTIVE】The LED driving lights provide 3 different lighting modes, you can choose different ambient lighting, including Yellow Main Light, Amber DRL or Turn Signal. We also provide two black protective covers. Not only do they enhance your vehicle\'s style and off-road appeal, but they also ensure compliance with state regulations and DMV inspections, keeping your lights road-legal.
• 【IP68 TRIPLE WATERPROOF SOLUTION】We\'ve continuously improved our waterproof system based on user response. Our LED driving light, with its sealed design, can withstand submersion and harsh conditions without damage from rain, fog, moisture, or dust. Trust in our rigorous quality inspection for a product that truly lasts.
• 【EXCELLENT EFFICIENT COOLING】The Driving Light is built with heavy-duty 6063 die-cast aluminum material and a hardened PC lens. This design accelerates heat dissipation and maintains a safe temperature, ensuring stable lighting output and durability. With a lifespan of over 50,000 hours, you can trust our lights to 86W * 2（Spotlights 80W+Amber DRL 6W）=172W

  Quantity: 2Pcs

  Total Lumens: 20400LM（19200LM+Amber DRL 1200LM）

  Housing Material: Aluminum alloy

  Lens Material: PC

  Lamp Beads Model（Each）: P8 5W/PCS*16+2835 SMD 6W

  Lighting Distance：1 LUX@617M


  Beam Pattern: （Spot+Hyper）Beam+Double-Side Shooter Light

  Light Color: White+Amber DRL

  Color Temperature: 3000K Amber Main Light&DRL

  Light Cover：Black

  With EMC/EMI：Yes


  Fit Model: Universal

  Life Time: 50000+ hours

  Housing Color: Black

  Waterproof Rate: IP68

  Light Type: LED Driving Lights/LED Lights Pod/LED Work Lights

  Working Voltage: 12V-24V

  （Wiring harness Relay is 12V Only，can be replaced with 24V）

  Shape Size: 5inch Round




  6-LED Pod Light Power Wiring harness kit with 40A fuse and relay 3 PIN DT Plug

  with DRL wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuse to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.

  *【Load Power】The wiring harnessis included in a 3-meter 10AWG（5mm²） main wire&18AWG（0.75 mm²）DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters，it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A（72W）in the 12V.

  * 【Plug and Play】The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

  *【Tips】We recommend professional installation of LED wiring harness kits, please let professional installers connect the wiring harness Pod Light Power Wiring harness

  Connect number Light：Max 6 Pods

  Switch button: Three Mode（main light,DRL and both）

  Wire length: 3M extension cord+1.5M connect cord

  Switch wire length: 3M

  Install pod distance: 15cm

  DT-plug adapter length: 10cm

  DT-plug Connector: 3 PIN

  Wire Size: 10AWG national standard（DRL 18AWG）

  Wire material: 5 mm² copper wire（DRL 0.75mm²）


  Working voltage: 12V（Replaceable 24V relay）

  Leads Power: Max 480W（current 40A）（DRL 72W&6A）

  Fuse Size: 40A

  Delay: Double 12V delay

  Applicable: LED Driving Light Pods Three Mode Main Lightwith Day Running Lights

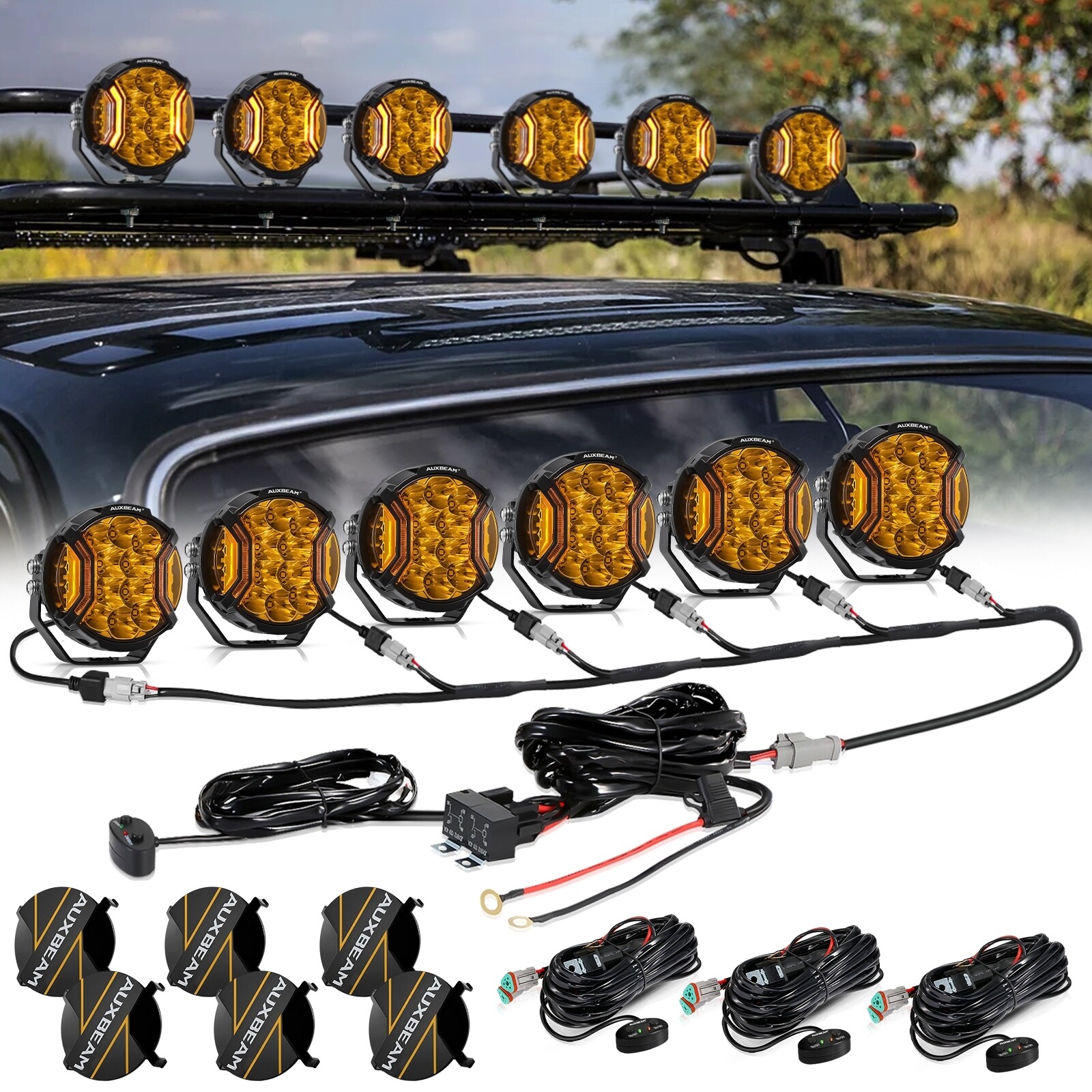

  Packing Included:

  6 X LED Driving Light（With DT Plug）

  6 X Light Cover（Black）

  3 X Wiring Harness（With DT Plug）

  3 X Srew Accessories

  1 x Wiring Harness Kit - 6 Please allow 1-3cm (0.4-1.18\") difference due to manual measurement and slight color variation for different display setting.

  2. Due to the light and screen difference, the item\'s color may be slightly different from the pictures. Please understand.
