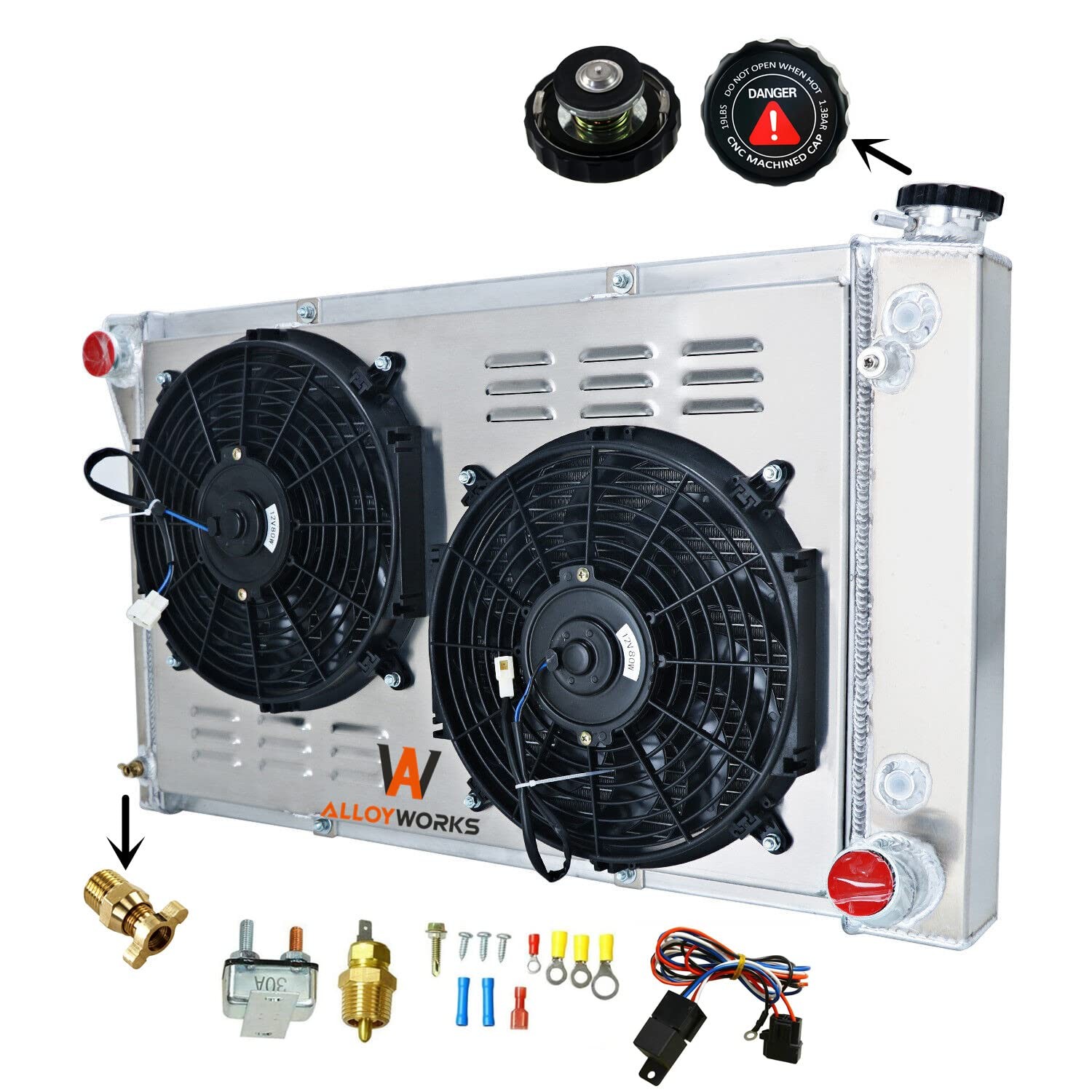

ALLOYWORKS CU369 Radiator Compatible with 1967-1972 Chevy GMC
- ◆ [Vehicle Fitment] Radiator Compatible with 1967-1972 Chevrolet Blazer GMC C10 C20 C30 K10 K20 K30 C1500 C25 C2500 C35 C3500 K15 K1500 K25 K2500 K35 K3500 Pickup Suburban Truck P10 P20 P30 G10 G20 G30 G15 G1500 G25 G2500 G35 G3500 Van Jimmy L6 V8 Auto Engines
- ◆ [Dimensions] Core Dimensions: 17\" high x 28-1/4\" wide; Overall Dimensions: 19-1/4\" h x 33-7/8\"w; Upper inlet: 1-1/2\" located Driver Side; Lower outlet: 1-3/4\" located Passenger Side; Trans-cooler: φ26*305*G1/4（Z);
- ◆ [Premium Aluminum Radiator] The radiator is made of Aircraft AA5052 aluminum, constructed with 100% welded seams by TIG, brazed core technology and no epoxy. Direct fit and built to last long with high quality aluminum core.
- ◆ [Density Core] Cooling rows are spaced 3/8\" apart, giving you 25% more rows within the core than other aluminum radiators sold on Amazon. 14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators. It provides 30% more cooling capacity than a standard radiator.
- ◆ [No Leaking Worries] All radiator have to go through 5 checks in the whole process.100% leaking and pressure tested. Thickened packing(either carton or wooden box), foam with shock absorption.
Vehicle Fitment:
FOR 1969-1972 CHEVROLET BLAZER
FOR 1968-1972 CHEVROLET C10 PICKUP
FOR 1968-1972 CHEVROLET C10 SUBURBAN
FOR 1968-1972 CHEVROLET C20 PICKUP
FOR 1968-1972 CHEVROLET C20 SUBURBAN
FOR 1968-1972 CHEVROLET C30 PICKUP
FOR 1969-1971 CHEVROLET G10
FOR 1969-1971 CHEVROLET G20
FOR 1971 CHEVROLET G30
FOR 1968-1972 CHEVROLET K10 PICKUP
FOR 1968-1972 CHEVROLET K10 SUBURBAN
FOR 1968-1972 CHEVROLET K20 PICKUP
FOR 1968-1972 CHEVROLET K20 SUBURBAN
FOR 1968-1972 CHEVROLET K30 PICKUP
FOR 1971-1972 CHEVROLET P10
FOR 1971-1972 CHEVROLET P20
FOR 1971-1972 CHEVROLET P30
FOR 1968-1972 GMC C15/C1500 PICKUP
FOR 1968-1972 GMC C15/C1500 SUBURBAN
FOR 1968-1972 GMC C25/C2500 PICKUP
FOR 1968-1972 GMC C25/C2500 SUBURBAN
FOR 1968-1972 GMC C35/C3500 PICKUP
FOR 1969-1971 GMC G15/G1500 VAN
FOR 1970-1971 GMC G25/G2500
FOR 1971 GMC G35/G3500 VAN
FOR 1970-1972 GMC JIMMY
FOR 1968-1972 GMC K15/K1500 PICKUP
FOR 1968-1972 GMC K15/K1500 SUBURBAN
FOR 1968-1972 GMC K25/K2500 PICKUP
FOR 1968-1972 GMC K25/K2500 SUBURBAN
FOR 1968-1972 GMC K35/K3500 PICKUP
Manufacturer Part Number: DPI369,CC369,CU369,0369AA, 369
Interchange Part Number: KKS369 ,CUC369 ,R369 ,RR369 DRMC369 MC369
Other Part Number: RA-CK67-3, RA-CK67-2 8010369, 433366
Radiator Details:
Core Dimensions: 17\" high x 28-1/4\" wide
Overall Dimensions: 19-1/4\" h x 33-7/8\"w
Upper inlet: 1-1/2\" located Driver Side
Lower outlet: 1-3/4\" located Passenger Side
Trans-cooler: φ26*305*G1/4（Z)
Transmission: Automatic and Manual.
Color: Silver
Material: Full Aluminium
Core and Tank: All Aluminum
High Performance Racing Spec.
Mounting Style: Bolt-On
Radiator style: Crossflow
Fit type: Vehicle Specific
Crafts: 100% Tig welded
Delivery: Local Delivery
Fitment Type: Direct Replacement
Performance: Up to 30%~45% more cooling
Placement on Vehicle: Engine Compartment
Surface Finish: Aircraft Grade Raw Aluminum
Petock Drain: OEM style brass petcock drain
Radiator Cap: CNC machined filler neck and cap
FAN Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.05\"
Thickness (in): 2.5\"
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185\'F turn-on temperature, 165\'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
Gentle Hint:
Parameters Meticulous Prior to Ordering.
Pls compare the overall width with your original radiator.
Warranty: 1 Year Warranty against manufacture defect and damage in transit.
Professional installation is highly recommended! No Fitting Instructions Supplied!
Please contact us for installation video or other any problem.
