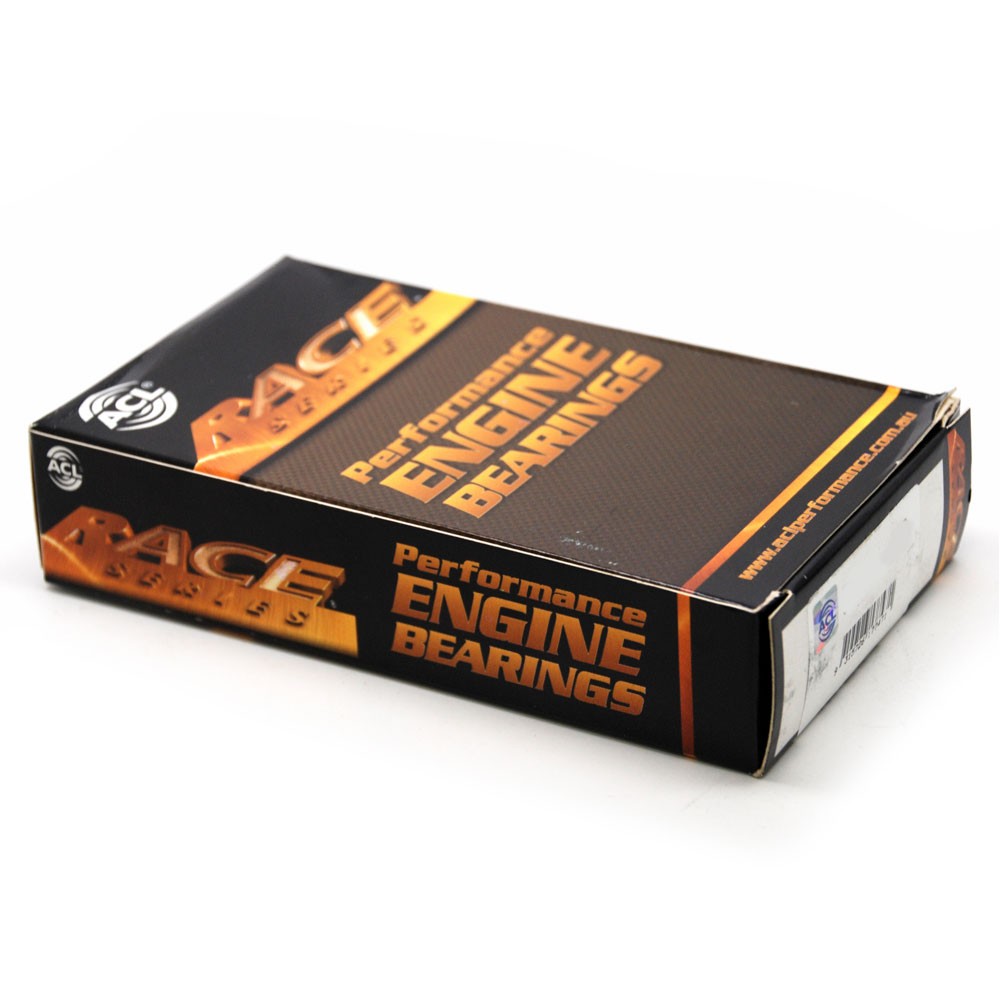

Aeromotive A1000 Fuel Pump ACL Main Bearing Set 5M1644H-.25; Race Series .25mm for 83-03 Audi/VW 1.6-2.0 Specifications
- Main Bearings Series: Race Series
- Year: 1983 to 2003
- Make: Audi, Volkswagen
- Model: A3, A4, A6, TT, 80, 90, 100, Golf, Jetta, Passat
- Engine: 1.6L, 1.8L, 2.0L
- Bearing Undersize: 0.250 mm
- Usage: Performance
- Construction: Tri-Metal
- Backing Layer Material: Steel
- Bearing Lining or Intermediate Material: Copper, Lead, Tin
- Overlay Material: Lead, Tin, Copper
- Coated: No
- Chamfered: Yes
- Bearing Width: 0.728 in.
- Standard Bearing Thickness (Without O/S): 0.099 in.
- Standard Crank Pin Diameter (Without O/S): 2.124 in.
- Standard Housing Diameter (Without O/S): 2.323 in.
- Quantity: Sold As Set (5/pkg)
Features
- Full (180 degree) grooved uppers with matching partial groove in lowers.
- Reduces interruption to big end oil supply.
- Tapered groove run-out.
- Smooths big end supply cut-off avoiding pressure pulsing and cavitation.
- A blend of characteristics to provide high strength and excellent seizure resistance.
- No flash plating is applied to further improve bearing retention and maximise heat transfer.
- Improved bearing retention from higher radial contact pressure.
- Locks the bearing into the housing.
- More effective heat dissipation through improved thermal transfer.
- Definition: Gradual reduction in wall thickness between the crown and parting line.
- ACL Race Series performance engine bearings feature increased eccentricity to improve shape adaptation to compensate for bore distortion at high speed operation.
- Assists in the formation of hydrodynamic oil film.
- Accommodate larger fillet radii on performance crankshafts.
Description
ACL Race Series performance engine bearings are manufactured to exacting tolerances. Micron-level machining, supported by precision measurement systems, ensures consistent accuracy in key characteristics such as wall thickness and crush. This delivers a reliable fit and helps maintain consistent clearances.
