Sign Up Now !92mm LS1 LS2 LS6 Black Intake Manifold Cathedral Port w/ Fuel Rail Kit For ChevyPRODUCT DESCRIPTION
Our intake manifold are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family. Each manifold is ready to bolt on out of the box and include high flow fuel rail kit. Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity.
Description:
Color: Black
Throttle Body Opening: 92mm
Intake Manifold Height: 9.00 inches (approx. 3 inches higher than stock)
Sheet Metal Aluminum: 3mm
Intake total length: 20 inches
Vacuum Ports: 3
Vacuum Port: 1/4NPT, 1/8NPT, 1/8NPT, 1/8NPT
Plenum Material: Aluminum
Base Material: Aluminum
92mm throttle bore opening for increased air flow
Product includes 3/8" Fuel rail with Braided Fuel Line kits and all gaskets and hardware for a hassle-free installation
3mm (1/8" ) thick T6061 sheet aluminum construction for maximum durability
100% TIG welded for strength and durability
Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
Appliaction:
Engine:
LS1 LS2 LS6 (6.0L 5.6L 5.3L 4.8L) Chevrolet Small Block V8 GEN. III/IV (LS-Based) Cathedral Port
4.8L / 293 CI (LR4)
5.3L / 325 CI (L33,L59,LM4,LM7)
5.7L / 346 CI（LS1,LS6)
6.0L / 364 CI（LQ4,LQ9,LS2)
Fit For:Compatible with
1997-2004 Chevrolet Corvette
1998-2002 Pontiac Firebird Formula, Trans AM
2001-2004 Corvette Z06
2004-2005 Cadillac CTS V-series
2005-2007 Chevrolet Corvette
2005-2006 Chevrolet SSR
2006-2009 Chevrolet TrailBlazer SS
2006-2007 Cadillac CTS V-Series
2005-2006 Pontiac GTO
2008-2009 Saab 9-7X Aero

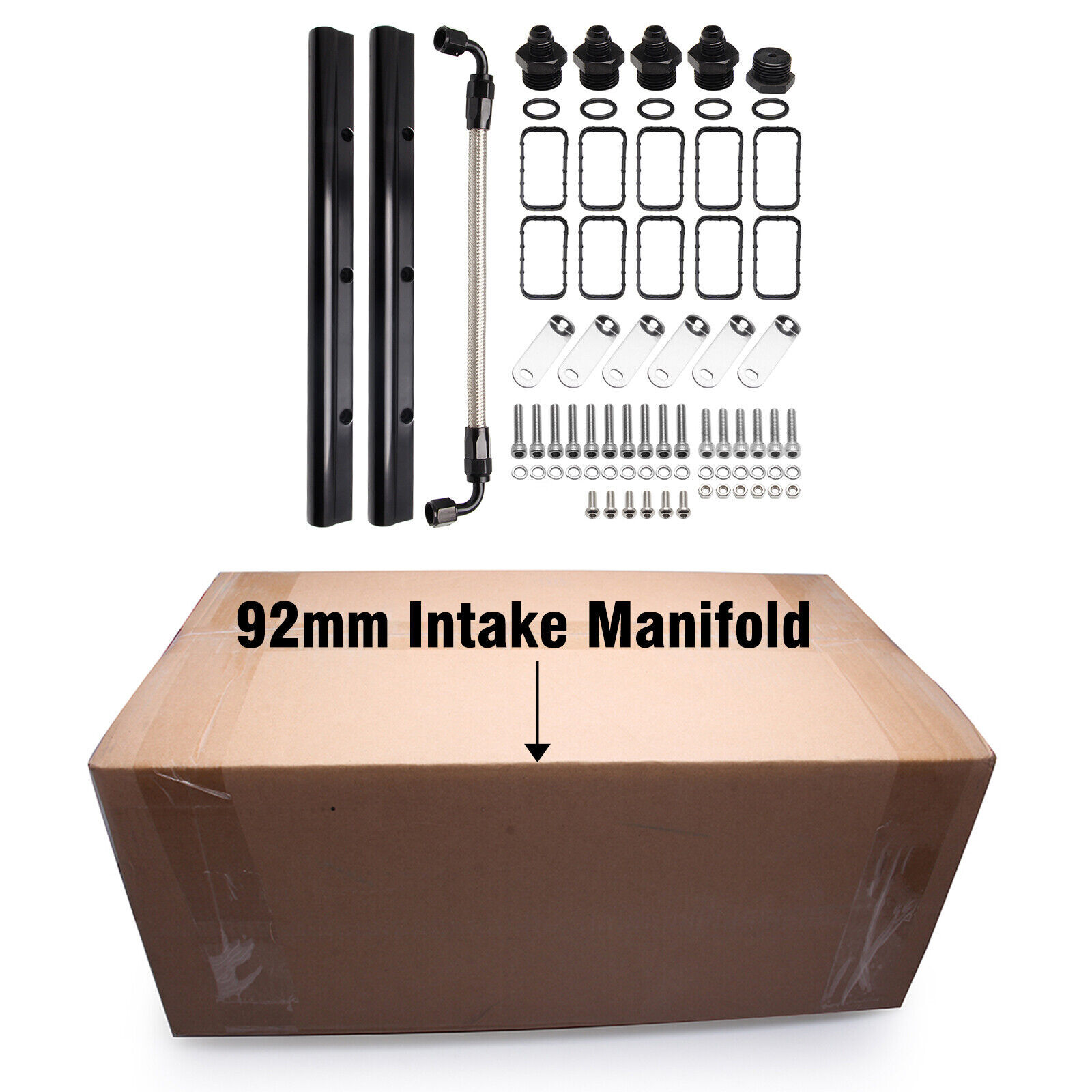

Comptability VehicleSHIPPINGRETURNWARRANTYGENERAL PACKAGEPackage Includes:Intake Manifold, Gaskets, Hardware, Fuel Rails, Fuel Crossover Line SHIPPINGAll orders from US shipped within 48 hours and always Free Shipping.We shipping using UPS or USPS from our nearest warehouse to you. Tracking numbers will be emailed upon shipment. RETURNPlease contact us before returning items or leaving anything but positive response. We are here to help you solve your problems. 30 DAYS RETURN policy is guaranteed with any reason (We only warranty cost of parts. Any installation or labor fees are non-refundable.). NOTE:
