9.66\" Interior Rear View Mirror Replacement Car LCD Display Day Night Universal..

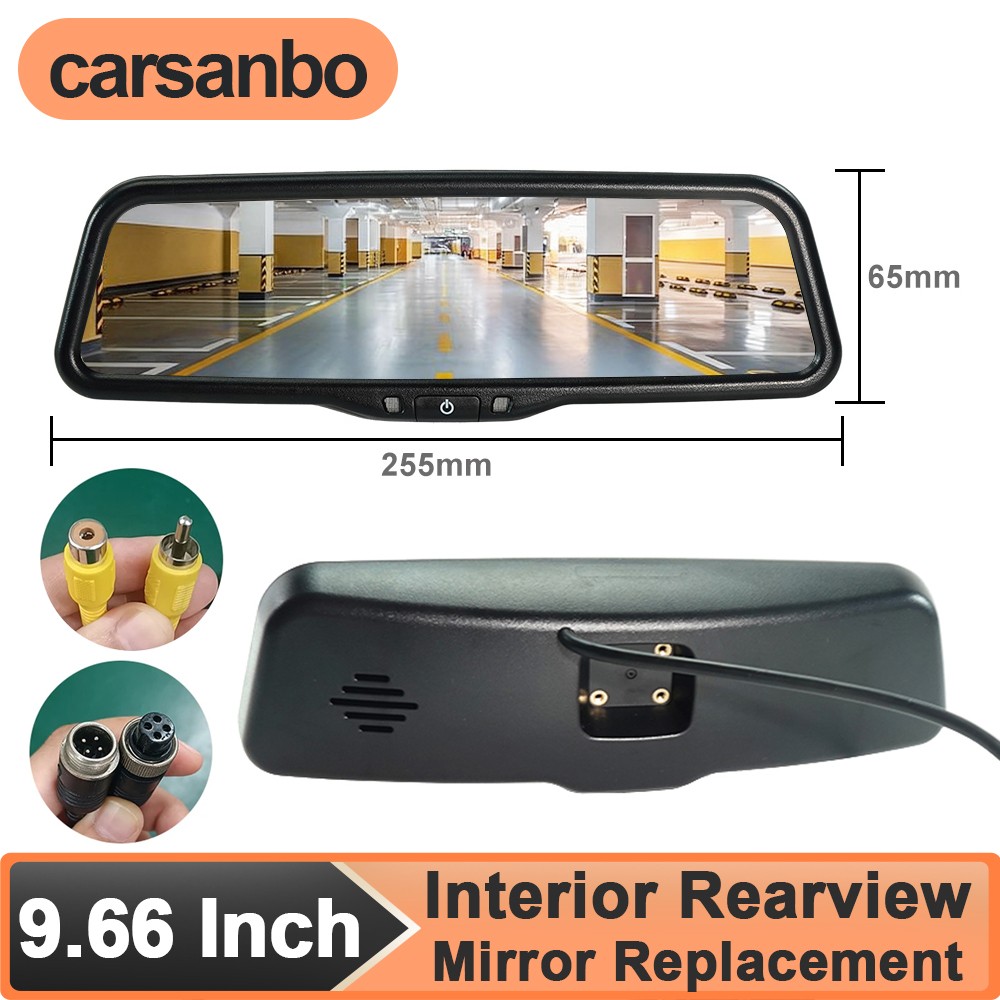

9.66inch AHD Digital Rearview Mirror Monitor (Mirror Bracket need buy alone)
Product Parameters:
- 9.66inch OEM Rearview mirror monitor Support AHD/CVBS video signal input
- Screen Size: 9.66inch IPS panel
- Pixel of Panel: 1280*320
- Video Input: 2 ways (Support 1080P and 720P AHD and CVBS signal camera)
- Video Input Connector: RCA or 4PIN
- Power Supply: DC12V-24V
- OSD Menu Control: keep press button on mirror (at CH2)
- OSD menu can set Brightness, contrast, color (at CH2)
- CH2 vertical cutting (Move the screen up and down)
- CH2 Adjust reverse reference line, automatic adjust monitor brightness
- Auto switch monitor on when car start
- CH1 for front viewcamera, CH2 for reverse camera
- CH2 will display when car reverse
- Display Rate: CH1 (4:1) full screen, CH2 (4:1and 16:9)
- Built in reference line when switch CH2 video
- Install Type: Replace original rear mirror
- The Mirror Bracket is not including in package.
Replace original car mirror
please send original mirror bracket photo and years of your car to check which one suit for your car.
The image can be moved up and down
By setting the menu, we can quickly adjust the screen to the angle you need.
Reverse mode automatically switches perspective
If the camera is directly connected, when the car is driving normally, the full screen will display the camera\'s image. When the car is reversing, the image will automatically switch to 16:9 mode, and the reference line will be turn on.In reverse mode, pressing the button can adjust the spacing between the rulers. 4PIN aviation / RCA connector
The 4PIN aviation head is usually connected to the truck camera, and the camera can be powered from the aviation head. The following figure shows it corresponding wiring methods.
The RCA head is connected to a regular car camera, and the camera needs to be powered separately. The following figure shows it corresponding wiring methods.
Full set photo:
1pcs 9.66inch monitor
1pcs power cable
