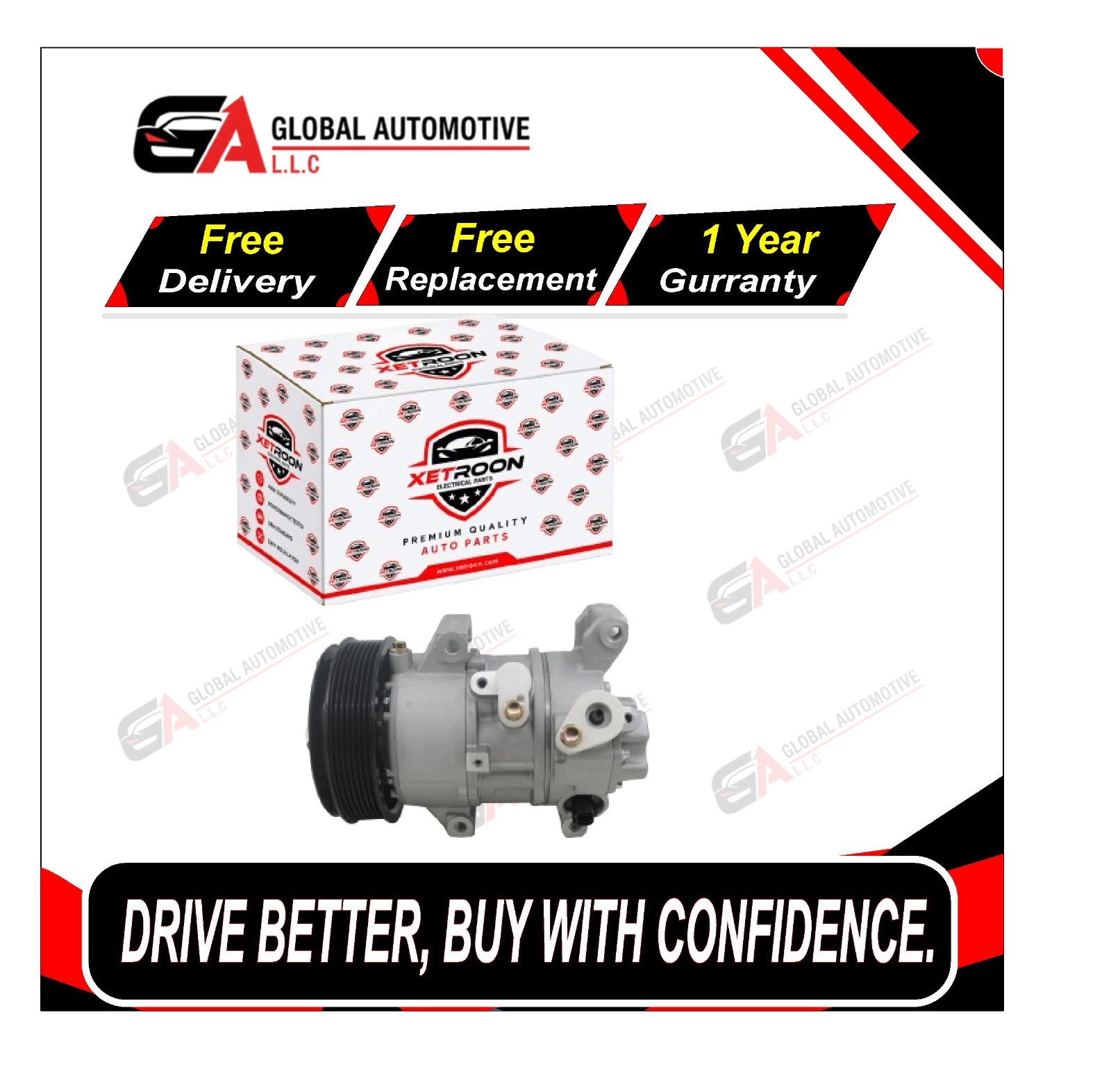

88310-05090 A/C Compressor Compatible with Toyota Avensis T250 2003-2008 For Sale - New and Used

88310-05090 CAR A/C COMPRESSORPRODUCT DESCRIPTION

The 88310-05090 Automotive A/C Compressor is a replacement air-conditioning compressor designed for selected Toyota Avensis and Toyota Corolla Verso applications. It is an essential component of the vehicle\'s air-conditioning system and is responsible for compressing and circulating refrigerant through the A/C circuit.

This compressor is associated with selected Toyota Avensis T250 applications and selected Toyota Corolla Verso AR10 configurations. The Avensis application covers sedan and estate body styles, while Corolla Verso applications cover selected MPV configurations.

The compressor receives low-pressure refrigerant gas returning from the evaporator, compresses it to high pressure, and sends it toward the condenser. The condenser then releases heat from the refrigerant before it passes through the expansion device and evaporator. This refrigeration cycle allows the A/C system to remove heat from the vehicle cabin and provide cooled air.

A correctly matched replacement compressor can help restore A/C operation when the original unit has been diagnosed with mechanical wear, internal damage, seizure, refrigerant leakage, bearing problems, clutch failure or insufficient pumping performance.

Important: Toyota used different compressor configurations depending on engine, market, production date and A/C system. Always compare the original compressor\'s OE number, compressor body, pulley, electrical connector, mounting points and refrigerant fittings before ordering.

WHY THE A/C COMPRESSOR IS IMPORTANT

The A/C compressor is the main pumping component of the vehicle\'s refrigeration system.

It creates the pressure difference required to move refrigerant through the complete A/C circuit.

THE COMPRESSOR HELPS TO:

• Receive low-pressure refrigerant gas
• Compress refrigerant
• Increase refrigerant pressure and temperature
• Send high-pressure refrigerant toward the condenser
• Maintain refrigerant circulation
• Support heat transfer through the A/C system
• Help the evaporator absorb heat from cabin air
• Support cold-air production
• Maintain proper A/C system operation

Without a properly functioning compressor, the A/C system cannot effectively circulate refrigerant and cabin cooling can be significantly reduced or completely lost.

WHAT THIS COMPRESSOR DOES

The 88310-05090 A/C compressor is designed to:

• Compress automotive A/C refrigerant
• Circulate refrigerant through the cooling system
• Create the required high/low pressure difference
• Send compressed refrigerant to the condenser
• Support heat removal from the passenger compartment
• Help maintain effective cabin cooling
• Replace a worn or defective original compressor
• Restore refrigerant pumping capability after confirmed compressor failure

VEHICLE COMPATIBILITYTOYOTA AVENSISToyota Avensis T250

Selected applications include:

• Toyota Avensis 2003
• Toyota Avensis 2004
• Toyota Avensis 2005
• Toyota Avensis 2006
• Toyota Avensis 2007
• Toyota Avensis 2008
• T250 generation
• Sedan
• Estate / Wagon
• Selected 2.0L petrol applications
• Selected 2.2L D-4D diesel applications

2.0L PETROL APPLICATION

Selected Avensis T250 vehicles use the 2.0L Toyota 1AZ engine family.

Vehicle: Toyota Avensis
Generation: T250
Years: 2003–2008
Engine: 2.0L 4-Cylinder Petrol
Engine Family: 1AZ
Body: Sedan / Estate
Fuel: Petrol/Gasoline

2.2L D-4D DIESEL APPLICATION

Selected Avensis T250 applications use Toyota\'s 2.2L D-4D diesel engine family.

Vehicle: Toyota Avensis
Generation: T250
Years: Selected 2005–2008 applications
Engine: 2.2L Diesel
Fuel: D-4D Turbo Diesel
Body: Sedan / Estate

Important: The 2.2L diesel engine family includes different engine codes and outputs, so verify the original compressor and vehicle specification before ordering.

TOYOTA COROLLA VERSOToyota Corolla Verso AR10

Selected applications include:

• Toyota Corolla Verso 2004
• Toyota Corolla Verso 2005
• Toyota Corolla Verso 2006
• Toyota Corolla Verso 2007
• Toyota Corolla Verso 2008
• Toyota Corolla Verso 2009
• AR10 generation
• MPV / Multi-Purpose Vehicle
• Selected 2.2L D-4D Turbo Diesel applications

2.2L D-4D APPLICATION

Selected Corolla Verso AR10 vehicles use the 2.2L D-4D turbo diesel engine family.

Vehicle: Toyota Corolla Verso
Generation: AR10
Years: 2004–2009
Engine: 2.2L Turbo Diesel
Fuel: Diesel
Body: MPV

Because Toyota offered multiple engine and equipment configurations, exact compressor compatibility should be confirmed using the OE number and physical compressor.

APPLICATION SUMMARYVehicleProduction YearsGeneration / ChassisEngineToyota Avensis Sedan2003–2008T250Selected 2.0L 1AZ PetrolToyota Avensis Estate2003–2008T250Selected 2.0L 1AZ PetrolToyota Avensis Sedan/EstateSelected yearsT250Selected 2.2L D-4D DieselToyota Corolla Verso2004–2009AR10Selected 2.2L D-4D Turbo DieselPRODUCT NAME

88310-05090 Automotive A/C Compressor

• Product Type: Automotive Air Conditioning Compressor
• OE/OEM Reference: 88310-05090
• OE Number Without Dash: 8831005090
• Application: Selected Toyota Vehicles
• Primary Vehicles: Toyota Avensis / Toyota Corolla Verso
• Avensis Generation: T250
• Corolla Verso Generation: AR10
• Engine Applications: Selected 2.0L Petrol / 2.2L D-4D Diesel
• Drive Type: Belt Driven
• Clutch: Verify supplied configuration
• Mounting: Vehicle-Specific
• Function: Refrigerant Compression & Circulation

TECHNICAL TypeCar A/C CompressorOE/OEM Number88310-05090OE Number Without Dash8831005090ApplicationToyota Avensis / Corolla VersoAvensis GenerationT250Corolla Verso GenerationAR10Engine ApplicationSelected 2.0L / 2.2L2.0L Engine Family1AZDiesel Application2.2L D-4DDrive TypeBelt DrivenClutchVerify actual product configurationPulleyVerify against original unitPulley Groove CountVerify against original unitPulley DiameterVerify against original unitVoltageVerify against original compressorRefrigerantVerify vehicle A/C specificationOilUse manufacturer/vehicle-specified oilMounting TypeVehicle-SpecificPositionEngine MountedFunctionRefrigerant Compression & CirculationIMPORTANT SPECIFICATION NOTE

Because A/C compressor specifications can vary by engine and market, do not assume a fixed pulley diameter, pulley groove count, compressor model, refrigerant or oil specification from the OE number alone.

For marketplace accuracy, compare the actual product you are selling with the original compressor before publishing detailed dimensional specifications.

WHY THIS COMPRESSOR?1. TOYOTA AVENSIS APPLICATION

Designed for selected Avensis T250 applications and suitable as a replacement when the original compressor has been confirmed defective.

2. TOYOTA COROLLA VERSO APPLICATION

Associated with selected Corolla Verso AR10 2.2L D-4D diesel configurations.

3. SUPPORTS A/C REFRIGERANT CIRCULATION

The compressor pumps refrigerant through the A/C circuit and creates the pressure difference required for the refrigeration cycle.

4. HELPS RESTORE CABIN COOLING

A correctly matched replacement compressor can restore refrigerant circulation and help the A/C system return to proper cooling operation.

5. REPLACEMENT FOR FAILED UNIT

Suitable for replacing an original compressor that has been diagnosed with mechanical wear, seizure, leakage, bearing damage or pumping failure.

6. BELT-DRIVEN AUTOMOTIVE DESIGN

The compressor is mechanically driven by the vehicle\'s accessory belt through the compressor pulley/clutch assembly.

MAIN FEATURES

• OE reference 88310-05090
• OE number 8831005090
• Designed for selected Toyota applications
• Toyota Avensis T250 compatibility
• Toyota Corolla Verso AR10 compatibility
• Selected 2.0L petrol applications
• Selected 2.2L D-4D diesel applications
• Belt-driven automotive compressor
• Vehicle-specific mounting
• Supports refrigerant circulation
• Helps restore A/C cooling
• Replacement for worn or failed compressor
• Suitable for professional replacement
• OE-number-based identification
• Designed for automotive HVAC systems

COMPRESSOR FUNCTION — DETAILED

The A/C compressor is the main pumping component in the vehicle\'s refrigeration cycle.

STEP 1 — LOW-PRESSURE REFRIGERANT ENTERS

Low-pressure refrigerant gas returns from the evaporator and enters the compressor.

STEP 2 — REFRIGERANT IS COMPRESSED

The compressor compresses the refrigerant gas, increasing its pressure and temperature.

STEP 3 — HIGH-PRESSURE REFRIGERANT EXITS

The high-pressure refrigerant leaves the compressor and travels toward the condenser.

STEP 4 — HEAT IS RELEASED

The condenser removes heat from the refrigerant and transfers it to the outside atmosphere.

STEP 5 — PRESSURE IS REDUCED

The refrigerant passes through the expansion device, where pressure and temperature decrease.

STEP 6 — EVAPORATOR ABSORBS CABIN HEAT

The low-pressure refrigerant enters the evaporator and absorbs heat from the air passing through the vehicle HVAC system.

STEP 7 — REFRIGERANT RETURNS

The refrigerant returns to the compressor and the cooling cycle repeats.

SIGNS OF A BAD A/C COMPRESSOR

A defective compressor may cause:

• A/C blowing warm air
• Weak cooling
• Intermittent cooling
• Compressor not engaging
• Loud compressor noise
• Grinding sound
• Rattling sound
• Bearing noise
• Compressor seizure
• Clutch problems
• Refrigerant leakage
• Compressor oil leakage
• Poor cooling at idle
• Abnormal A/C pressure
• Belt or pulley noise
• Complete loss of cooling

IMPORTANT

These symptoms can also be caused by:

• Low refrigerant
• Refrigerant leakage
• Faulty pressure sensor
• Electrical problems
• Condenser blockage
• Expansion valve failure
• Evaporator problems
• Blocked refrigerant line
• Incorrect refrigerant charge

A professional A/C diagnosis should be performed before replacing the compressor.

REPLACEMENT / CROSS-REFERENCE INFORMATIONPRIMARY OE NUMBER

Use the primary OE number for product identification.

Any additional aftermarket cross-reference should be verified against:

• Compressor ports
• Vehicle engine
• Original OE number

Do not assume that a cross-reference number is automatically interchangeable across all Toyota Avensis or Corolla Verso applications.

INSTALLATION / REPLACEMENT DETAILS

Professional A/C installation is recommended.

BEFORE INSTALLATION

Check:

• Original compressor OE number
• Compressor body
• Mounting points
• Electrical connector
• Pulley
• Pulley groove count
• Pulley diameter
• Refrigerant fittings
• Clutch year
• VIN/frame number
INSTALLATION PROCEDURE
1. Recover the existing refrigerant using approved A/C recovery equipment.
2. Disconnect the battery if required.
3. Remove components restricting access to the compressor.
4. Remove the accessory drive belt.
5. Disconnect the compressor electrical connector.
6. Disconnect the suction and discharge refrigerant lines.
7. Remove the compressor mounting bolts.
8. Remove the old compressor.
9. Compare the old compressor with the replacement.
10. Confirm mounting points.
11. Confirm pulley configuration.
12. Confirm electrical connector.
13. Confirm refrigerant fittings.
14. Replace required O-rings/seals.
15. Install the replacement compressor.
16. Reconnect refrigerant lines.
17. Reconnect electrical connections.
18. Install the drive belt.
19. Correctly tension the belt according to vehicle specifications.
20. Verify compressor oil requirements.
21. Evacuate the A/C system with a vacuum pump.
22. Perform a vacuum/leak test.
23. Recharge with the vehicle-specified refrigerant.
24. Start the engine.
25. Switch on the A/C.
26. Check compressor operation.
27. Check vent temperature.
28. Check system pressure.
29. Check for refrigerant and oil leaks.
30. Check for abnormal noise.
31. Confirm proper cooling performance.
IMPORTANT A/C SYSTEM SERVICE

If the original compressor failed internally or seized, inspect the complete A/C system before installing the replacement.

Depending on the failure, the technician may need to:

• Flush the A/C system
• Inspect the condenser
• Inspect the expansion valve
• Inspect refrigerant lines
• Replace receiver-drier where applicable
• Replace contaminated O-rings
• Check compressor oil
• Remove contamination
• Evacuate the system
• Perform leak testing
• Recharge with the correct refrigerant

If metal debris has entered the A/C system after compressor failure, the debris can damage the replacement compressor.

WHAT\'S IN THE BOXPACKAGE INCLUDES
• 1 × 88310-05090 A/C Compressor
• Pulley/clutch according to supplied product configuration
• Protective packaging
NOT INCLUDED UNLESS SPECIFICALLY STATED
• Refrigerant labor
• A/C service equipment
IMPORTANT FITMENT CHECK

Before ordering, compare:

OE Number: 88310-05090
OE Number Without Dash: 8831005090
Vehicle: Toyota Avensis / Toyota Corolla Verso
Avensis Generation: T250
Corolla Verso Generation: AR10
Engine: Selected 2.0L / 2.2L
Engine Family: 1AZ / D-4D depending on application
Compressor Body: Must match
Pulley: Must match
Pulley Grooves: Must match
Pulley Diameter: Must match
Electrical Connector: Must match
Mounting Points: Must match
Refrigerant Fittings: Must match
Clutch: Must match
VIN/Frame: Recommended for final verification

BUYER WARNING

PLEASE DO NOT ORDER BASED ON VEHICLE MODEL AND YEAR ALONE.

Toyota used different A/C compressor configurations depending on engine, market, production date and equipment.

Always compare the original compressor\'s:

• OE number
• Compressor body
• Pulley
• Groove count
• Pulley diameter
• Electrical connector
• Mounting points
• Refrigerant ports
• Clutch configuration

before placing an order.

PRODUCT HIGHLIGHTS / BULLET POINTS
• OE 88310-05090 A/C COMPRESSOR: Replacement automotive air-conditioning compressor designed for selected Toyota applications. It compresses and circulates refrigerant through the A/C system to support proper cabin cooling.
• TOYOTA AVENSIS T250: Compatible with selected Toyota Avensis T250 applications, including sedan and estate body styles and selected 2.0L petrol and 2.2L D-4D diesel configurations. Verify the original compressor before ordering.
• TOYOTA COROLLA VERSO AR10: Associated with selected Toyota Corolla Verso AR10 MPV applications equipped with 2.2L D-4D turbo diesel engines. Exact fitment should be confirmed by OE number and physical configuration.
• 2.0L PETROL APPLICATION: Selected Avensis T250 vehicles use the Toyota 1AZ engine family. Always verify the compressor number and physical configuration before purchase.
• 2.2L D-4D DIESEL APPLICATION: Selected Avensis and Corolla Verso applications use Toyota 2.2L D-4D diesel engines. Different engine versions may use different A/C compressor configurations.
• REFRIGERANT CIRCULATION: The compressor acts as the main pump of the automotive refrigeration cycle, compressing and circulating refrigerant between the evaporator and condenser.
• HELPS RESTORE A/C COOLING: When the original compressor is confirmed defective, a correctly matched replacement can restore refrigerant pumping and help return the A/C system to normal cooling operation.
• BELT-DRIVEN DESIGN: The compressor is driven through the engine\'s accessory belt and pulley/clutch assembly, transferring mechanical power to the compressor.
• REPLACEMENT FOR FAILED UNIT: Suitable for replacing an original compressor diagnosed with excessive wear, seizure, abnormal noise, leakage, bearing damage or insufficient pumping performance.
• VERIFY BEFORE PURCHASE: Match 88310-05090, compressor body, pulley, groove count, pulley diameter, electrical connector, mounting points, refrigerant fittings, clutch and engine with the original compressor to help ensure correct fitment.



---
