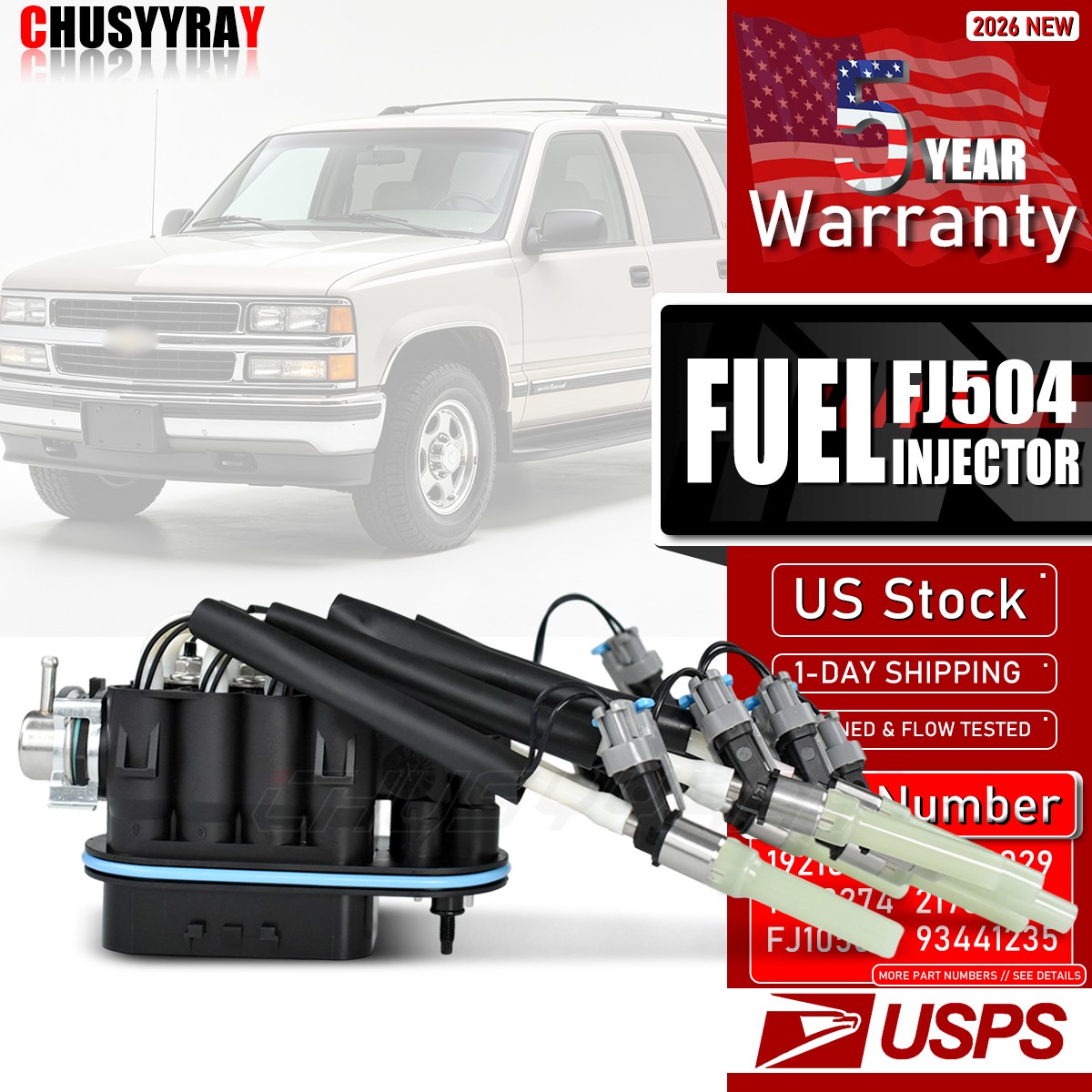

8-Port Spider Fuel Injector 89060440 FJ10563 For Chevy Pickup Truck 5.0L V8 For Sale - New and Used

FJ504 FUEL INJECTOR KIT8-Port Spider · For Chevy / GMC 5.0L 5.7L V8PART NUMBER

Fuel Injector: 19210687

Fuel Injector Meter : 17113274

Interchange Part Numbers: FJ504, FJ10563, 217-3029, 2173029, ‎93441235, 89060440

SPECIFICATION

• 100% quality assurance tested, more responsive, less expensive, easier to install.
• Help you attain maximum fuel efficiency and power from your engine.
• Keep your vehicle performing reliably, efficiently, and safely for many miles to come.
• Promote smooth engine operation and balanced fuel delivery reducing overall fuel consumption and harmful emissions.
• Precisely trimmed solenoid windings enable optimum fuel delivery.
• High-temp O-rings enable prolonged sealing of injector under extreme heat conditions.
• Stainless steel calibration slide and spring assembly prevents corrosion within the fuel control body leading to an extended service life.

MATERIAL & COLOR

Material: made of high quality Plastic, Metal and Rubber.

Color: as picture.

PACKAGE INCLUDED: 1x Fuel Injector; 1x Harness Bracket with Bolt.
(100% Brand New Never Used Or Installed)APPLICATION

For 99-00 Cadillac Escalade V8 5.7L.

For 96-99 Chevrolet C1500 | C1500 Suburban V8 5.7L.

For 96-97,99 Chevrolet C1500 | K1500 V8 5.0L.

For 96-00 Chevrolet C2500 | C3500 V8 5.7L.

For 96-97 Chevrolet C2500 V8 5.0L.

For 96-99 Chevrolet C2500 Suburban V8 5.7L.

For 96-02 Chevrolet Express 1500 | 2500 V8 5.7L.

For 96-02 Chevrolet Express 1500 | 2500 V8 5.0L.

For 96-02 Chevrolet Express 3500 V8 5.7L.

For 96-99 Chevrolet K1500 | K1500 Suburban V8 5.7L.

For 96-00 Chevrolet K2500 V8 5.7L.

For 96-96 Chevrolet K2500 V8 5.0L.

For 96-99 Chevrolet K2500 Suburban V8 5.7L.

For 96-00 Chevrolet K3500 V8 5.7L.

For 96-00 Chevrolet P30 V8 5.7L.

For 96-00 Chevrolet Tahoe V8 5.7L.

For 96-99 GMC C1500 | C1500 Suburban V8 5.7L.

For 96-99 GMC C1500 V8 5.0L.

For 96-00 GMC C2500 | C3500 V8 5.7L.

For 96-97 GMC C2500 V8 5.0L.

For 96-99 GMC C2500 Suburban V8 5.0L.

For 96-99 GMC K1500 V8 5.7L.

For 96-97 99 GMC K1500 V8 5.0L.

For 96-99 GMC K1500 Suburban V8 5.7L.

For 96-00 GMC K2500 | K3500 V8 5.7L.

For 96-99 GMC K2500 Suburban V8 5.7L.

For 96-99 GMC P3500 V8 5.7L.

For 96-02 GMC Savana 1500 | 2500 | 3500 V8 5.7L.

For 96-02 GMC Savana 1500 | 2500 V8 5.0L.

For 96-00 GMC Yukon V8 5.7L.

Vehicle compatibility charts are for REFERENCE ONLY. Check your vehicle with Part Number below to match your needs.

INSTALLATION INSTRUCTIONS

1. Disconnect negative ground terminal from the battery.
2. Remove the air intake. Disconnect hoses and sensors, lift the air box.
3. Remove the throttle cable. Slide the cable end out. Lay the cables out of the way.
4. Disconnect the wiring harnesses, sensors, hoses, solenoid and connectors.
5. Remove the cap on Schrader valve on the fuel rail. Loosen the fuel fittings behind the intake on the driver side.
6. Remove the hose bracket, remove the fuel line.
7. Unscrew the nuts, remove the intake manifold.
8. Remove the old fuel injector. Pry out the injector's bracket.
9. Install the new fuel injector. Insert the hose according the number.
10. Temporarily reinstall the fuel inlet and return lines into the fuel meter body. Reconnect the battery and vehicle’s fuel pump. Perform a Fuel Pressure System check to verify that the injectors are not leaking.
11. If everything is ok, reinstall the covers, nuts, hoses and sensors.

NOTE:

Provide Tracking Number With Every Order, Please Buy With Confidence!

No installation guides are included, we highly recommend to seek professional installation. Any damage during installation will not be refunded.

Will come with everything you see in the picture. Please allow difference due to manual measurement.

Please check that the picture matches before purchase. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

For any inquiries or special requests such as larger amount ordering please write to us.
