Features

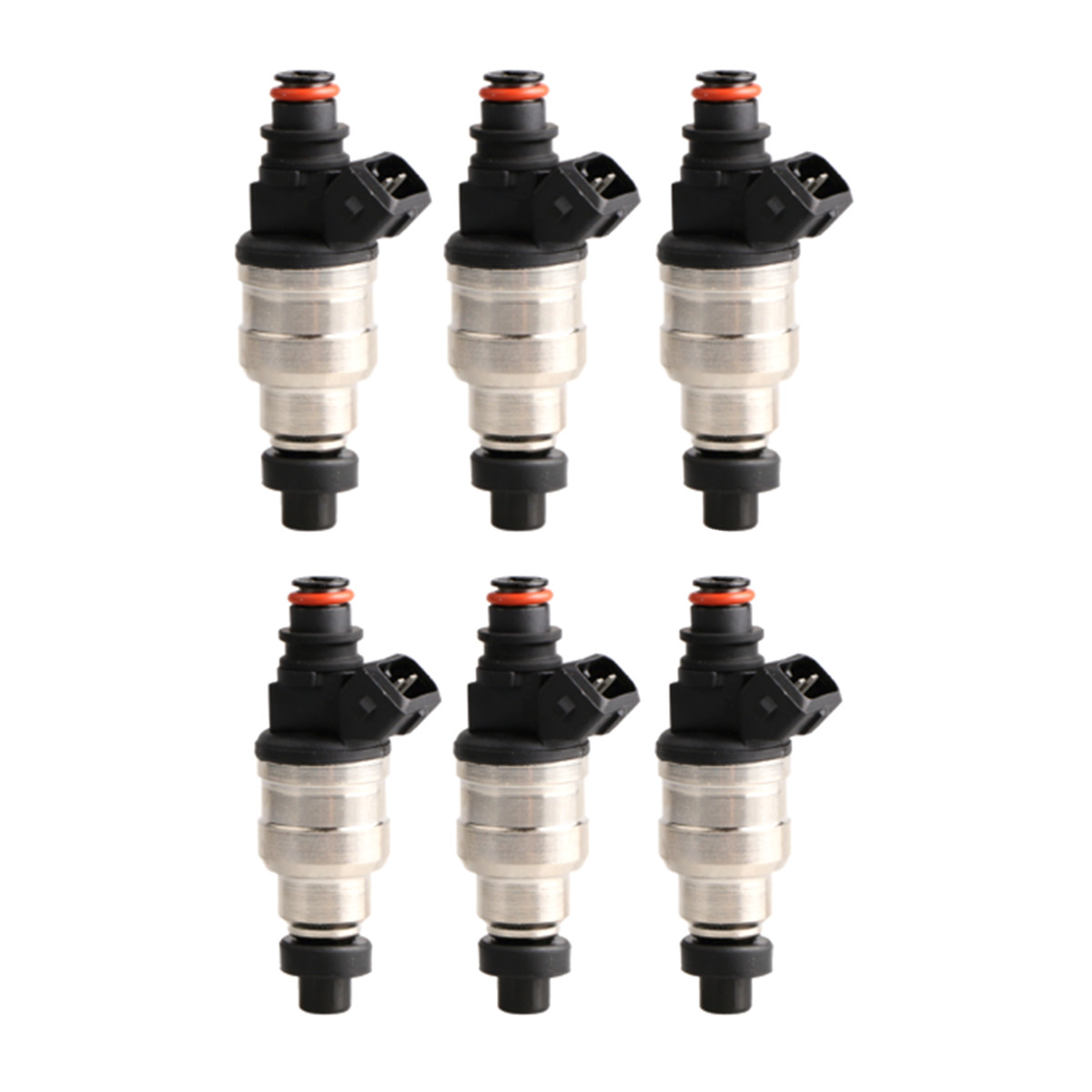

Quantity: 6 Fuel Injectors
O-Rings Included: Yes, preinstalled
Injector Design: Metal & composite plastic
Nozzle Design: 4-hole disc
Connector Type: EV1
Filter Design: Basket filter design at inlet
Fuel Delivery: Upgraded 4-hole disc fuel delivery nozzle for superior fuel atomization
Technical Data
Coil Resistance: 12.5 Ohms / High Impedance(NO RESISTOR BOX NEEDED)
Static Flow Rate: 550 cc/min @ 43.5PSI ( 300kPa ) ,52 lb/hr
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Accuracy:3%
Mechanical Spec
Length: 3\" (76mm)
Top O-Ring Diameter: 11mm
Note:
FREE EV1 PIGTAIL CLIPS INCLUDED
THESE HIGH PERFORMANCE INJECTORS WILL REQUIRE ECU TUNING
Application:
These high performance injectors(Approx. 12 OHMS) will fit all of the following models
1991-1999 Dodge Stealth R/T Turbo
1991-1999 Mitsubishi 3000GT VR4 Turbo
1992-1996 Mitsubishi Diamante 3.0L V6
1987-2003 Mitsubishi Galant VR4 Turbo V6
1986-1992 Toyota Supra Turbo
ALL Nissan Skyline Models and Engines with Top Feed Fuel Rails
ALL RB20 Engines with Top Feed Fuel Rails
ALL RB24 Engines with Top Feed Fuel Rails
ALL RB25DET Engines with Top Feed Fuel Rails
ALL RB26DETT Engines
ALL Toyota 7MGTE Engines
