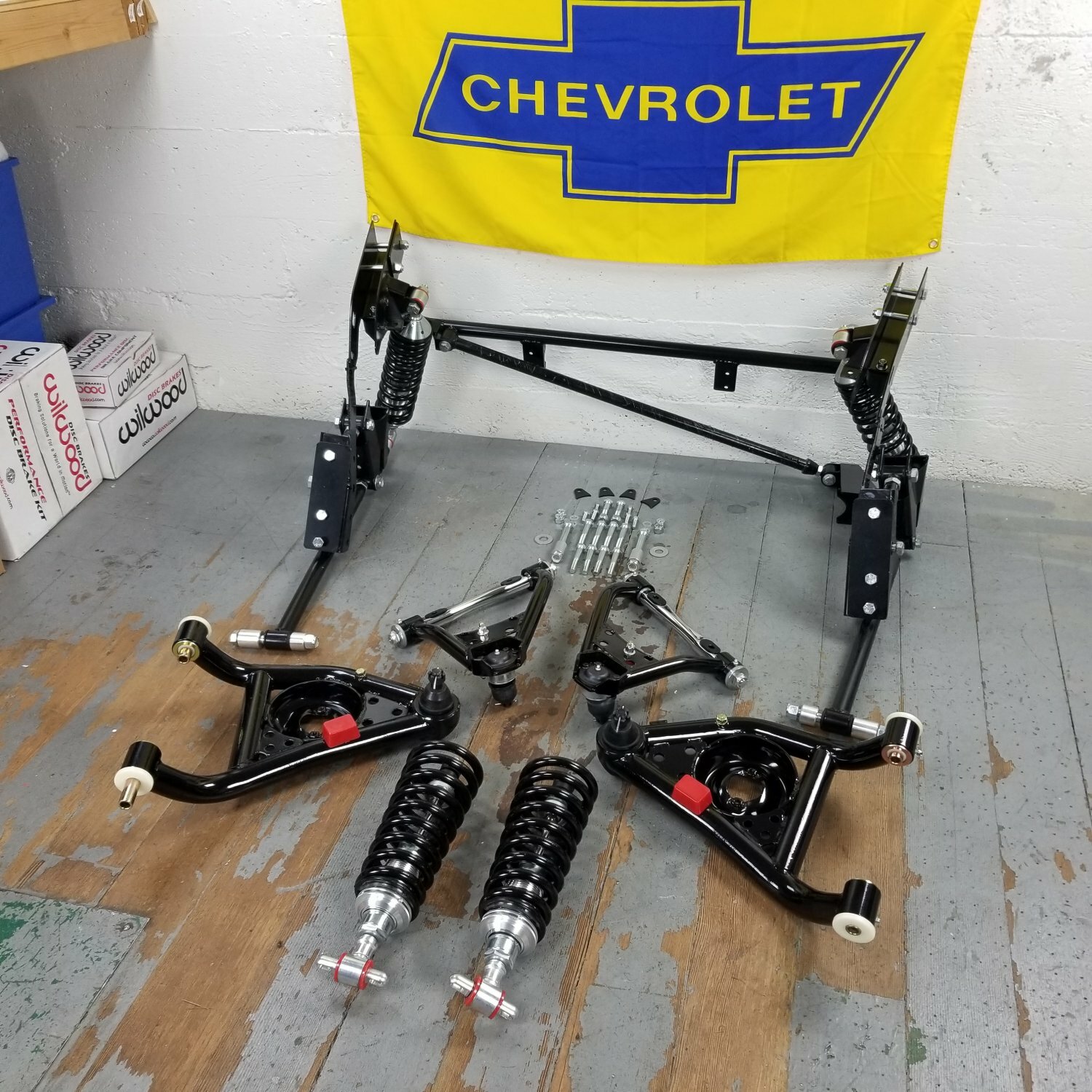

67-69 Chevy Camaro Firebird Rear 4-Link Tubular A-Arm Front SBC LSX Coilover KitSku # 172D2AConditionNewBrandHelix Suspension Brakes & SteeringUnit Of Measure1
TAKE TOTAL CONTROL of your 1967 - 1969 Chevy Camaro/ Firebird Upper & Lower Tubular Control Arms, & Small Block/ LSX 500lbs Coil-Overs w/ atleast 3\" of available up/ down ride height adjustment!. 1967 - 1969 Chevy Camaro Rear 4-Link Suspension kit offers single adjustable ride height coil-overs making it the ideal for both Street Performance & Weekend Track Day. 4-Link Includes Custom Bolt On Chassis Brackets, Rear Cross-Member w/ Upper Shock Mounts, 1\" OD Oversized 4-Link Bar Tubing, Bushings & Adjusters, Deluxe Sport Coil-over Shocks, Progressive Springs, Axle Brackets, Panhard Bar, Mounting Hardware, & Pre-Installed Stabilizer Bar Mounting Brackets! - Sway-Bar NOT Included***Front Tubular Control Arms are designed to keep your ride on the ground while cutting through those corners! Includes 2 degrees of positive camber correction from factory OE a-arms when installed!Easy to read installation instructions are available as PDF Download after you have completed final checkout!. Works w/ most 14 inch or larger wheels*** 67-69 Chevy Camaro Firebird Rear 4-Link Tubular A-Arm Front SBC LSX Coilover Kit::: TUBULAR CONTROL-ARM FEATURES :::
Includes :: Upper & Lower Control Arms
Feature :: No Modification Required!
Feature :: Much Stronger than Factory
Feature :: Needed for Air bags or Coil-Overs
Feature :: Improves suspension geometery
Feature :: High-Wear No-Squeak Bushings
Feature :: Mandrel Bent
Feature :: Laser Cut & CNC Machined
Feature :: Improves Handling
Feature :: Stainless Steel Cross Shafts
Feature :: 1.5 Drop for Custom Stance
Feature :: 2 Degree Pos. Caster Correction::: FRONT COIL-OVER FEATURES :::
Lower Mount :: Stud Plate
Style :: Tubular Control Arms & Coil-over Shock Kit
Spring Rate :: 500 Lbs
Coil Height :: 10 Inches
Coil Upper I.D. :: 3.5 Inches
Coil Lower I.D. :: 2.5 Inches
Finish :: Black
Upper Coil Style :: Pigtail
Adjustable :: Yes
Material :: Hardened Steel
Shock Finish :: Polished
Shock Color :: Silver
Charged :: Nitrogen
Upper Shock Mount :: Spike
Lower Shock Mount :: Closed Loop
Valving :: Performance Street
Fully Extended :: 16.5
Compressed :: 11.5
Travel :: 4.5:::: REAR 4-LINK + REAR COIL-OVER FEATURES :::
Style :: Rear 4-Link
Fits :: 1967-1969 Chevy Camaro SS Z28
Ride Height :: Adjustable
Stance :: Stock Height
Includes :: Deluxe Coil-over Shocks & Springs
Spring Rate :: 250 - 300 Lbs
Fully Extended :: 16.5
Compressed :: 11.5
Travel :: 4.5
Axle Brackets :: Weld-On
Chassis Bracket :: Bolt-On
Includes :: Mounting Hardware
Material :: Steel
Finish :: Black PaintCustom Bolt On Brackets :: Included
Oversized Stainless Steel Adjusters :: Included
Upper Coil-over Cross-member :: Included
Oversized 1\" OD Bars :: :: Included
Rear Sway-Bar Mounting :: YES
Rear Sway-Bar :: NO:: SPANNER WRENCH FEATURES ::
Style :: Round Hole
Adjustable :: Yes
Handle :: Rubber Coated
Color :: Red
Material :: Steel
Coating :: Zinc________________{:: ADDITIONAL ADD-ONS ::}________________
- 1967-69 Camaro Sub-Frame Connectors - Stock Subrame
- 1967-69 Camaro Firebird Front Disc Brake Conversions
- GM 10/12 Bolt 11\" Rear Disc Brake Kits
- Firewall Power Brake Booster/ Master Kits
- Power Remote Mount Emergency Brake Kits
- GM Steering Columns
- Transmission Mounted Shifter kits
- & Many Other 12V Power AccessoriesPlease message us directly for additional information and links on were to find these other additional items we off for 1967-1969 Chevy Camaro/ Firebird***
________________{ !! IMPORTANT NOTES !! }________________
***Coil-overs have about 4.5 of adjustable travel. Shock will rest in the middle of that travel distance when under a load. Rde height can then be set 1\"-1.5 above stock height when spring perch is fully extended. Ride height can be dropped up to 1.5\" - 2 before shock is bottomed out. ***Works w/ Mini Tub but will require extensive modification (4/5 fabrication difficulty Level) ***Drop spindles are NOT Recommended with this setup.***Spanner Wrench Policy:
