Feature

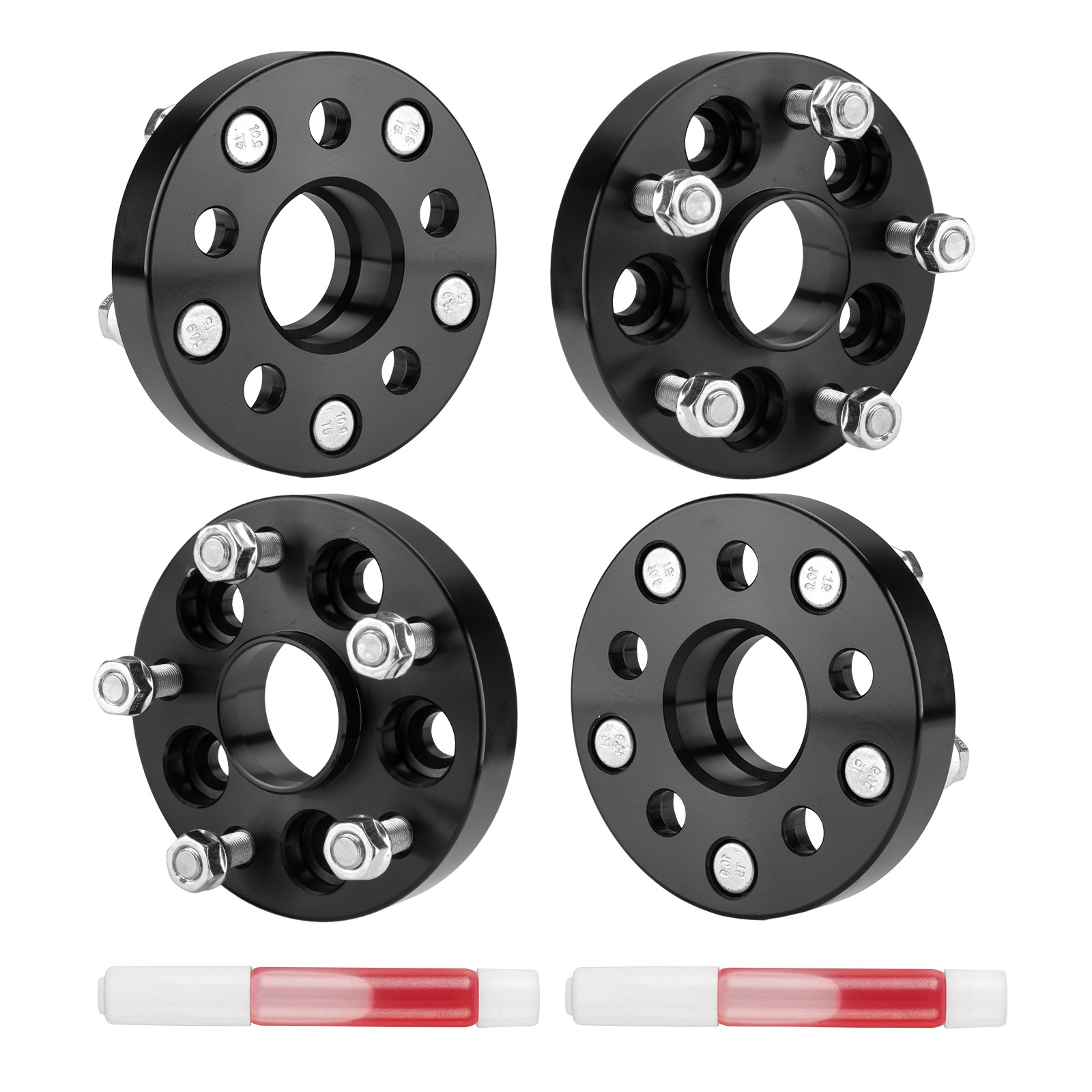

- Designed specifically for vehicles with a 5x100mm bolt pattern, ensuring a proper fit.
- Made from high-quality T6 6061 billet aluminum, providing durability and strength.
- Hub-centric design offers easier installation and a more secure fit compared to lug-centric spacers.
- Comes as a complete set of four wheel spacers, including thread locker and an instruction manual for convenience.
- Backed by a 5-year manufacturer warranty for peace of mind.
Specification
Spacer Thickness: 1inch
Vehicle Bolt Pattern: 5x100mm
Wheel Bolt Pattern: 5x4.5\"
Thread Size: M12x1.25
Hub Bore: 56.1mm
Hubcentirc: Hubcentirc: Yes，Easier to install,Easy to Locate,More secure than lug-centric spacers as they seat on the hub,No need to purchase separate hub-centric rings.
Lug Patterns: 5
Torqued Down By Hand At: 70-80lb-ft
Inside Diameter: 56.1mm
Outside Diameter: 150mm
Items Included: 4x wheel spacers,Thread locker,Instruction manual
note: NOT for original wheel,ONLY work with 5x114.3mm wheel.
Stud Grade: 12.9
Number of Pieces: 4
UPC: Does not apply
Placement on Vehicle: Left, Right, Front, Rear
Manufacturer Warranty: 5 Years
Number in Pack: 4
Features: durable
Finish: Manufacturing process
Other Part Number: Only for 5x100mm models with 5x114.3mm wheels,change bolt pattern.
Color: Black
Manufacturer Part Number: Does not apply
Centering: 56.1mm
Material: High Quality t6 6061 Billet Aluminum
Bolt Pattern: 5x100mm to 5x4.5\"
Brand: KAC
Type: wheel adapter
Compatibility
For Subaru：
Subaru Forester 1998-1999 All engine
Subaru Forester 2000-2002 H4 2.5L (SubModel:L; S)
Subaru Forester 2003-2013 All engine
Subaru Forester 2014 All engine
Subaru Forester 2015-2018 All engine
Subaru Crosstrek 2016-2021 All engine
Subaru Crosstrek 2022-2023 All engine
Subaru Impreza 1993-2003 All engine
Subaru Impreza 2004 H4 2.5L (SubModel:Outback; RS; TS)
Subaru Impreza 2005 H4 2.5L (SubModel:Outback Sport; RS)
Subaru Impreza 2004-2005 H4 2.0T (SubModel:WRX)
Subaru Impreza 2004-2006 H4 2.5T (SubModel:WRX STI)
Subaru Impreza 2006-2007 H4 2.5T (SubModel:WRX; WRX Limited; WRX TR)
Subaru Impreza 2006-2007 H4 2.5L (SubModel:2.5i; Outback Sport)
Subaru Impreza 2008 H4 2.5T (SubModel:WRX; WRX STI)
Subaru Impreza 2009 H4 2.5T (SubModel:2.5 GT; WRX; WRX Premium; WRX STI)
Subaru Impreza 2008-2009 H4 2.5L (SubModel:2.5i; Outback Sport)
Subaru Impreza 2010-2011 H4 2.5L (SubModel:2.5i; 2.5i Premium; Outback Sport)
Subaru Impreza 2011 H4 2.5T (SubModel:WRX; WRX Limited; WRX Premium; WRX STI; WRX STI Limited)
Subaru Impreza 2012-2013 H4 2.5T (SubModel:WRX STI; WRX STI Limited)
Subaru Impreza 2012-2013 H4 2.0L
Subaru Impreza 2012-2013 H4 2.5T (SubModel:WRX; WRX Limited; WRX Premium)
Subaru Impreza 2014 H4 2.0L
Subaru Impreza 2014 H4 2.5T (SubModel:WRX Limited; WRX Premium)
Subaru Impreza 2015-2021 All engine
Subaru Impreza 2022-2023 All engine
Subaru Outback 2000-2004 All engine
Subaru Outback 2005-2013 All engine
Subaru Outback 2014 All engine
Subaru Legacy 1990-2004 All engine
Subaru Legacy 2005-2014 All engine
Subaru XV Crosstrek 2013 All engine
Subaru XV Crosstrek 2014 All engine
Subaru XV Crosstrek 2015 All engine
Subaru BRZ 2013-2020 All engine
Subaru BRZ 2022-2023 All engine
Subaru Baja 2003-2006 All engineFor Scion：
Scion FR-S 2013-2016 All engineFor Toyota：
Toyota 86 2017-2019 All engine
Toyota GR86 2022 All engine
Package Included
4x wheel spacers,Thread locker,Instruction manual
Installation Guide
- Ensure your vehicle is parked on a flat surface and the wheels are safely lifted.
- Remove the existing wheels and clean the hub surface for optimal contact.
- Align the wheel spacers with the hub, ensuring the proper fit on the centering diameter of 56.1mm.
- Secure the spacers using the provided M12x1.25 bolts, torquing them down by hand at 70-80 lb-ft.
- Reinstall the wheels and ensure they are properly torqued before driving.
Important Notes
- NOT for original wheel; this product only works with 5x114.3mm wheels.
- Compatibility is for various Subaru models: for 2015-2018 Subaru Forester, for 2016-2021 Subaru Crosstrek, and for 2005-2013 Subaru Outback.
- Spacer thickness is 1 inch; verify that your vehicle can accommodate this increase in width before installation.
- Ensure to follow all installation instructions to avoid potential damage to your vehicle or the spacers.
- If uncertain, it is recommended to seek professional assistance for installation.
How To Measure the Bolt Pattern of Your Vehicle
The bolt pattern refers to the diameter of an imaginary circle formed by the centers of the wheel lugs. Different vehicles come with different types of bolt patterns on their wheels. It is better to do some measurements on your own. Common bolt patterns are of 4, 5, 6 or 8lug holes.How to Measure the Thickness of Wheel Spacers
To achieve the look that flushes or nearly flushes with the fender, measuring the wheel gap is necessary. Too thick can cause the tires to rub against the body, while too thin may not achieve the desired visual or performance improvements. The wheel gap refers to the distance from the outside edge of your tires or rims to the inner fender lip.
1. Place a straight edge across the face of the wheel and tire combination. Make sure the straight edge touches both sides of the tire to make sure that the straight edge truly represents the front face of the wheel.
2. Use your measuring tool to measure from the inside of the straight edge to the inside of the fender lip.
3. Take the measurement at the point where the wheel and tire is closest to the fender. This may be closer to the front or rear edge of the fender rather than top dead center.Important Notes
1. Check the thickness of the spacer you are ordering. If your vehicle has studs that are longer than the thickness of the spacer, you will need to trim your vehicle studs. If your rims mount lug bolts, and you want to install a thin spacer, you may need shorter lug bolts.
2. The centerbore of the spacer is the size of the big hole in the middle. If the center of your hub is larger than the centerbore of the spacer, it will not fit. It\'s ok if the center of your hub is smaller. If you need an exact fit, then order hub-centric spacers.
Non Hub Centric or Hub Centric Wheel Spacers
Hub centric wheel spacers: Use the axle hub to center and support the wheel. Use the lug studs as compressive force to keep the wheel tight to the wheel hub.
Lug-centric wheel spacers: Use the lug studs to support the wheel. Then uses tapered holes and nuts to align/center the wheel so that the spacers can keep it compresses to the hub.
Hub centric wheel spacers match the locating ring on the hub, ensuring that the weight of the car is carried by the hub and not by the studs or bolts, thus reducing the stress on the bolts or studs. Lug centric wheel spacers use lug studs to support the wheel, then tapered holes and nuts to position the wheel and keep it compressed against the hub. Non hub centric wheel spacers may cause vibration while driving. So using the hub centric wheel spacers will be a better option.
