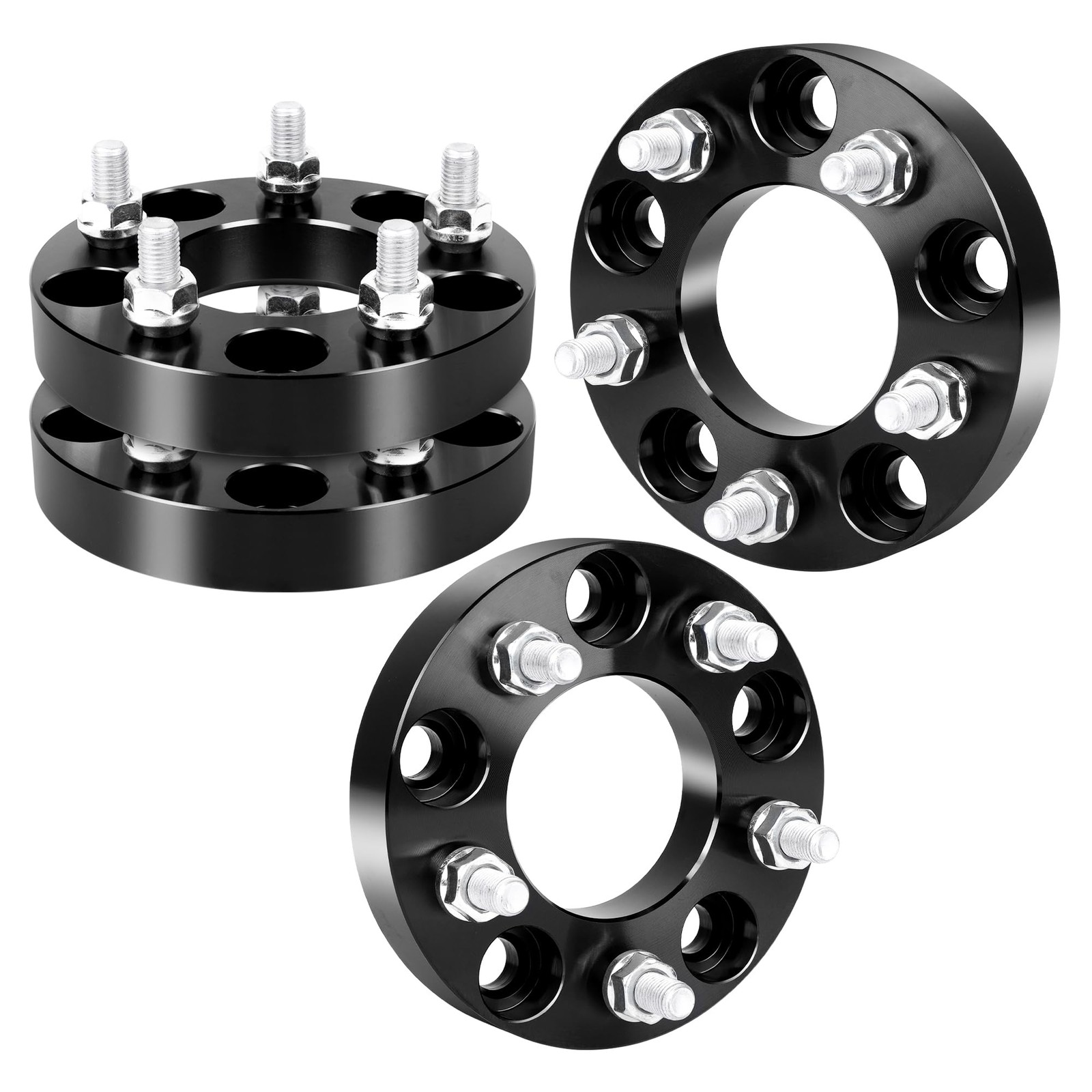

4-Piece Wheel Adapter Set Converts 5x4.5 Vehicle Hubs to Accept 5x4.75 Wheels Install Corvette-Pattern Wheels on Compatible 5x4.5 Vehicles 1-Inch Thick • 73mm Bore • 6061-T6 Aluminum • 12.9-Grade Studs BOLT-PATTERN CONVERSION WORKS IN ONE DIRECTION ONLY These adapters install on a vehicle with a 5x4.5 / 5x114.3mm hub pattern and allow installation of wheels with a 5x4.75 / 5x120.65mm pattern. They do not install 5x4.5 wheels onto a 5x4.75 vehicle. Verify both the vehicle-side and wheel-side bolt patterns before ordering. VERIFY THE VEHICLE\'S FACTORY STUD THREAD The adapter\'s pre-installed output studs use a 1/2-20 thread. The package includes 1/2-20 open-end lug nuts; however, some vehicles in the general application list may use a different factory stud thread. If your factory studs are not 1/2-20, separately obtained open-end nuts matching the vehicle\'s original thread may be required to secure the adapters. Product Description Convert a compatible 5x4.5-inch vehicle hub to accept wheels using the 5x4.75-inch bolt pattern. Each adapter is one inch thick and manufactured from CNC-machined 6061-T6 aluminum alloy. The set includes four adapters with pre-installed heat-treated 12.9-grade studs and open-end lug nuts. Key Features Bolt-Pattern Conversion: Changes a 5x4.5-inch vehicle hub pattern to accept 5x4.75-inch wheels. One-Inch Thickness: Moves each wheel outward approximately 25.4mm to provide the required adapter space. 6061-T6 Aluminum: CNC-machined aluminum alloy construction combines strength with reduced weight. 12.9-Grade Studs: Pre-installed heat-treated studs provide high structural strength when correctly installed. Anodized Finish: Surface treatment helps improve corrosion resistance and long-term appearance. Complete Four-Wheel Set: Includes four adapters and twenty open-end 1/2-20 lug nuts. Product Specifications Product Type Bolt-Pattern Wheel Adapters Quantity 4 Adapters Vehicle Bolt Pattern 5x4.5 / 5x114.3mm Wheel Bolt Pattern 5x4.75 / 5x120.65mm Adapter Stud Thread 1/2-20 Center Bore 73mm Thickness 1 Inch / 25.4mm Each Material 6061-T6 Aluminum Alloy Stud Grade 12.9 Grade Package Weight 11.11 lb Listed 5x4.5 Vehicle Applications Dodge: Dakota 1987-1990 Ford: Edge 2006-2014; Explorer 1990-2019; Explorer Sport Trac 2001-2010; Five Hundred 2005-2007; Flex 2008-2019; Freestar 2004-2007; Ranger 1982-2012 Jeep: Cherokee 1984-2013; Grand Cherokee 1993-1998; Liberty 2002-2013; Wrangler 1987-2006 Mercury: Mountaineer 1997-2010 Lincoln: Town Car 1981-2011 Listed 5x4.75 Wheel Applications Chevrolet: Corvette 1997-2019; S10 1982-2011; S10 Blazer 1983-1994; Camaro 1983-2002 Pontiac: Firebird 1982-2002 Cadillac: Eldorado 1979-1985; XLR 2004-2009 Package Contents ✔ 4 One-Inch Wheel Adapters
✔ 20 Open-End 1/2-20 Lug Nuts
✔ Installation Information CHECK FACTORY-STUD AND WHEEL CLEARANCE The vehicle\'s original studs may extend beyond the outer face of the one-inch adapter. The back of each wheel must have sufficient recessed pockets to accommodate any protruding factory studs. Confirm clearance before installation. Do not modify the adapter\'s pre-installed studs. Installation Requirements 1. Verify both bolt patterns, the center bore and all thread sizes.
2. Safely raise and support the vehicle before removing the wheels.
3. Clean rust and debris from the hub and wheel mounting surfaces.
4. Install each adapter flush against the corresponding vehicle hub.
5. Hand-tighten the correct open-end nuts and torque them in a star pattern.
6. Install the wheels on the adapter\'s 1/2-20 studs.
7. Verify complete wheel, brake, suspension and body clearance.
8. Recheck all fasteners after approximately 25-50 miles. PROFESSIONAL INSTALLATION STRONGLY RECOMMENDED Wheel adapters are safety-critical components. Do not use an impact wrench for installation. Improper fitment, incorrect lug nuts, insufficient thread engagement, improper torque or failure to seat the adapters completely flush can cause vibration, component damage or wheel separation. Please Verify Before Ordering ✔ Vehicle hub pattern is 5x4.5 / 5x114.3mm.
✔ Wheel pattern is 5x4.75 / 5x120.65mm.
✔ Required adapter center bore is 73mm.
✔ Adapter output studs use 1/2-20 threads.
✔ Vehicle-side lug nuts match the factory stud thread.
✔ Factory studs and the back of the wheels have sufficient clearance.
✔ One inch of added offset provides safe body and suspension clearance.
✔ Contact us through Messages if you need help confirming specifications. QUESTIONS ABOUT THIS PRODUCT? Contact us directly through Messages before ordering.
Manufacturer names are used only to identify vehicle and wheel compatibility.
