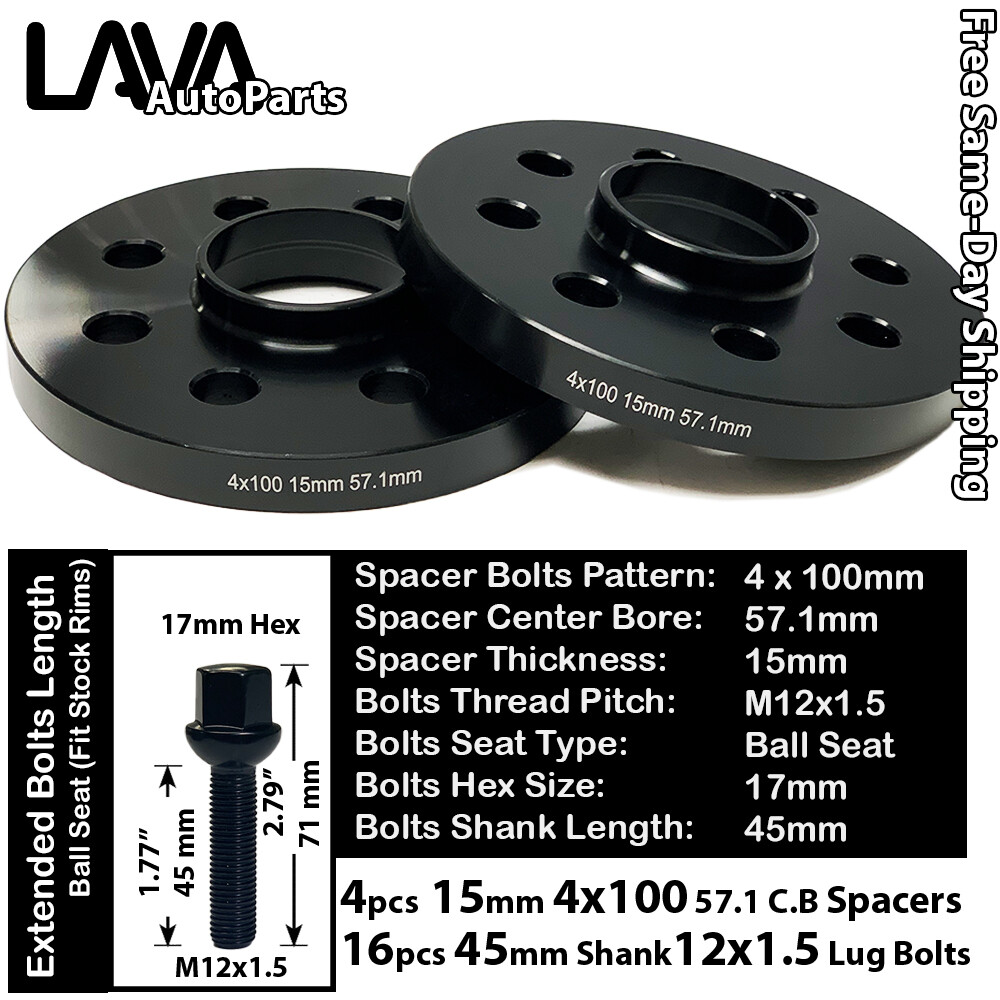

Product Specification:
About Spacers
Spacer Type: Hub Centric Spacer For Bolts Car
Spacer Bolts Pattern: 4x100mm
Spacer Center Bore: 57.1mm
Spacer Thickness: 15mm
Spacer Hub Ring: Yes
Spacer Color: Black
Spacer Material: Cold Forged 6061 T6 Grade Aluminum
Quantity: 4 Pcs
About Bolts
Lug Type: Lug Bolts with Extended Shank
Seat Type: Ball Seat
Thread Pitch: M12x1.5
Hex size: 17mm
Overall Height: 71mm or 2.79\"
Overall Diameter: 23mm or 0.9\"
Shank Length (From Bottom of the Seat to the end the thread shaft): 45mm or 1.77\"
Color: Black
Material: Cold Forged Steel
Quantity: 16 Pcs
Requirements of the Vehicle Specification
Required Vehicle Hub Bolt Pattern: 4x100mm
Required Vehicle Hub Center Bore: 57.1mm
Required Vehicle Hub Thread: M12x1.5
Required Vehicle Minimum Fender Gap: 15mm
Requirements of the Wheel Specification
Required Vehicle Wheel Bolt Pattern: 4x100mm
Required Vehicle Wheel Center Bore: 57.1mm
Required Vehicle Wheel Lug Seat Type: Ball Seat
Required Vehicle Wheel Lug Nuts Hex: 17mm
What You Will Receive:
4 pcs 15mm Hub Centric Spacers
16 pcs 17mm Hexed Black Ball Seat Lug Bolts
Capability Chart and Important Part Note:
Please Carefully Refer the Generation Code For Fitment, There may be multiple generations in the same year.
Please Double Check For Fender Gap Limitation
MakeModelYear RangePart NotesBolt PatternBolt ThreadSpecial NotesAudi40001980-1987Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationAudi4000 Quattro1984-1987Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationSeatCordoba2001-2002Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationSeatIbiza2001-2002Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenCoupe1981-1987Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenDerby1995-2009Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenGol2009-2020Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenGolf1985-1998Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenJetta1980-1999Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenPointer Truck1998-2010Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap LimitationVolkswagenUp!2016-2018Stock Wheel Only4x100mm 57.1 C.B12x1.5Please Check Fender Gap Limitation
Important Notice
1. Please Contact Customer Service If You Ever Have Questions
2. Capability is Guaranteed if Your Vehicle is listed in the Capability Chart Above, Please carefully refer to the seat type requirement on the wheel.
3. Exceptions Have Been Marked Under Part Notes, Please Carefully Check Generation Code
4. Fender Gap is the most important measurement to check the maximumthickness you can use
Notes:
- Buyer must check capability chart before buying, any vehicle that is not displayed in the capability may NOT fit.
- Please check if your rim uses proper lug nuts seat - product is only compatible with mentioned seat type required wheels
- Only guarantee compatible with Ball Seat Type Required Rim, If you have Aftermarket wheel, you may need Cone Seat Lug Bolts,Aftermarket wheels fitment is based on knowledge of buyer risk
- If your rim has wheel cap, this set might not be compatible with Wheel Cap
- Please have professional specialist to perform installation, adding spacers and related modification at your own risks
