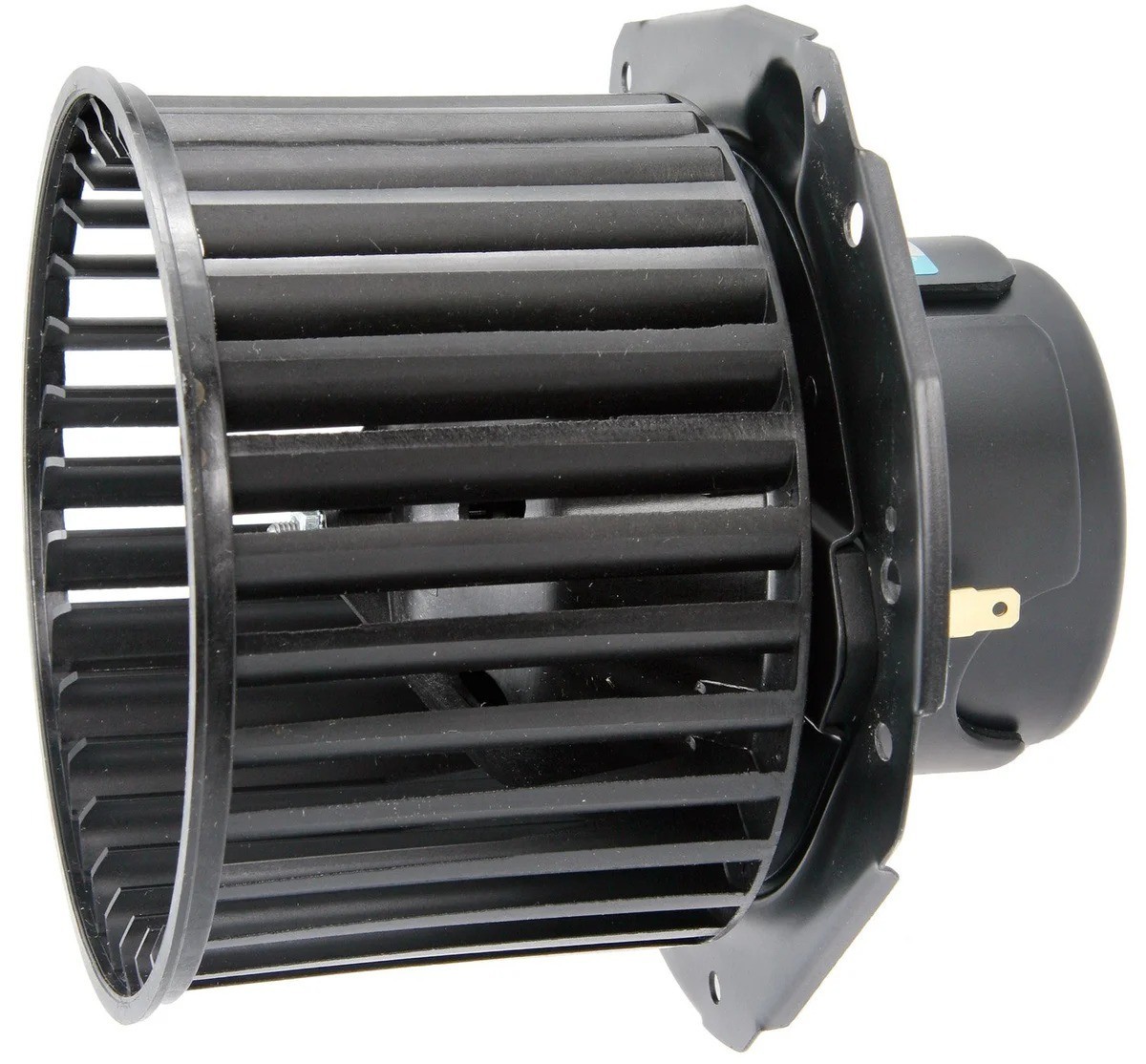

Four Seasons (Trumark) 35344 HVAC blower motor with wheel. It is a 12 V, clockwise-rotation motor with a flange mount and a vented metal case.
Replaces GM 19179474 and 12491240. It also replaces GM 52481376, 52466086, 52498873, 52465449, 52478865, 52494157, 52481378, 52466080, 52460752, 88918680, 19189064, 22062578, 22098837 and 22120538. Cross-references TYC 700092 and UAC BM0137C.
In the box: 1 blower motor with the cage wheel included (per the maker's listing).
Fits (front blower):
1996-2005 Chevrolet Astro and GMC Safari, front blower only
1995-1997 Chevrolet Blazer and GMC Jimmy, with A/C
1998-2002 Chevrolet Blazer and 1998-2001 GMC Jimmy, manual A/C only
2003-2005 Chevrolet Blazer and 2002-2005 GMC Jimmy, manual A/C, without molded vent tube, per the maker
1994-2002 Chevrolet S10 and GMC Sonoma, with A/C
2003-2004 Chevrolet S10 and GMC Sonoma, with A/C, without molded vent tube, per the maker
1996-2000 Isuzu Hombre, with A/C, per the maker
1996-1997 Oldsmobile Bravada; 1998-2001 Bravada without automatic temperature control
1987-1996 Chevrolet Corvette
1989-1992 Chevrolet Camaro and Pontiac Firebird, with A/C
1988-1990 Buick LeSabre Estate Wagon 5.0L V8, per the maker
Does NOT fit: the rear/auxiliary blower on Astro/Safari; Blazer/Jimmy/Bravada with automatic temperature control; S10/Sonoma/Hombre/Camaro/Firebird without A/C; 2003-2005 trucks whose blower has a molded vent tube (per the maker). GM's own catalog lists a different motor (89019300) for 2003-2005 Blazer and 2004 S10, so please compare with your original.
Specs: 12 V; clockwise rotation; 2 terminals; flanged, vented motor; metal; motor diameter 3.25 in; motor length 4.3125 in; shaft diameter 0.3125 in; shaft length 1.3125 in; wheel diameter 5.75 in; wheel height 3.625 in.
The main photo is the maker's catalog image. Open box from a liquidation lot; see photos for condition and included parts. Please match your original part number before ordering.
