1. About this item
- Applications include For 1996-2002 Polaris Sportsman 500 configurations, For 1999-2000 Polaris Sportsman 335, and For 2001-2002 Polaris Sportsman 400.
- Starter specifications are 12 V, 1.2 kW, clockwise rotation, 9 teeth, and PMDD design.

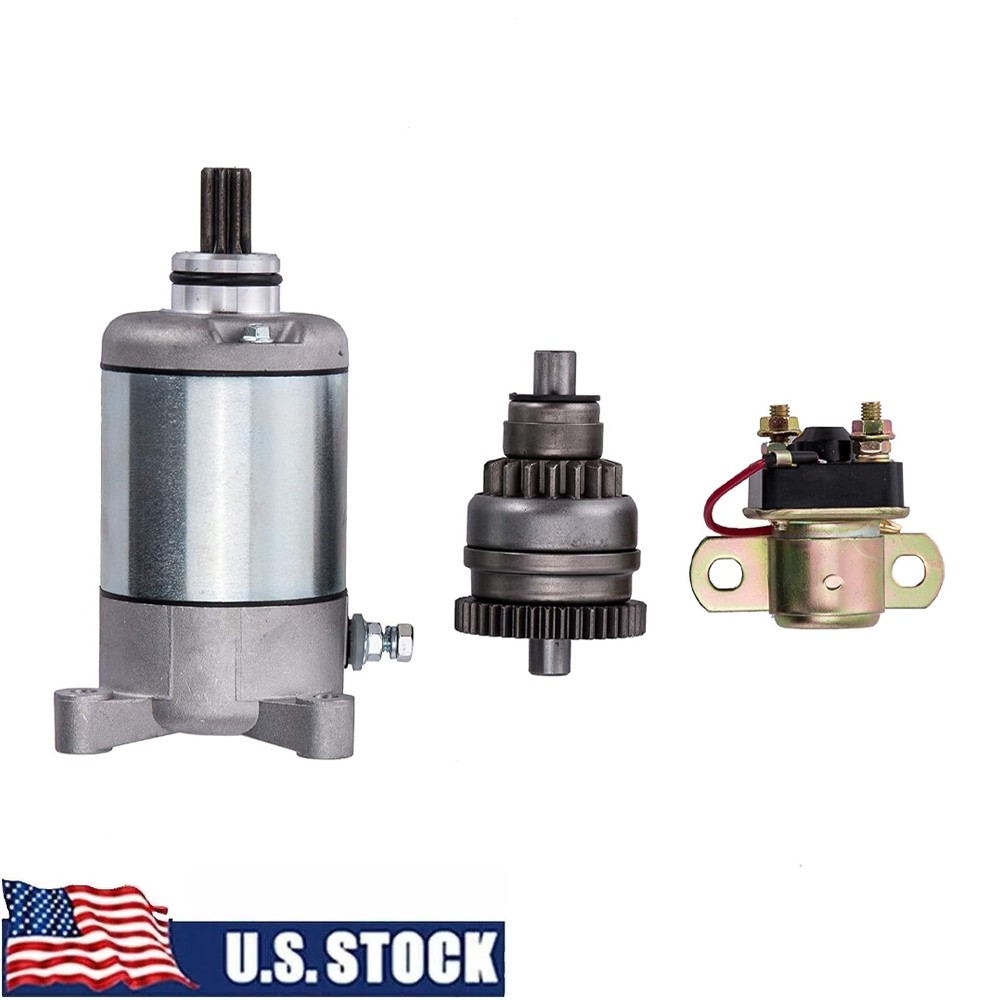

- Three-piece kit contains one starter motor, one starter drive Bendix, and one starter solenoid relay.
- Primary OE numbers are 3084981 and 3090188 for comparison with the removed starter.
- The supplied product specifications list a 1-year manufacturer warranty.
2. Vehicle Fitment
- For 1999-2000 Polaris Sportsman 335
- For 2001-2002 Polaris Sportsman 400
- For 1996-2000 Polaris Sportsman 500 4x4
- For 1999-2000 Polaris Sportsman 500 RSE
- For 2001-2002 Polaris Sportsman 500 HO
- For 2001 Polaris Sportsman 500 HO RSE
- For 2001 Polaris Sportsman 500 DUSE 4x4
- For 2001 Polaris Sportsman 500 DUSE HO 4x4
- For 2002 Polaris Sportsman 500 HO X
- For 2000-2002 Polaris Sportsman 500 6x6
3. Reference Part Numbers
Supplied OE and reference numbers: 3084981, 3090188, 18645, 18645N, 57-2688, 410-54020, SMU0061, 113528, 49-5713, and PA-102.
4. Product Description
This kit groups the starter motor with the drive Bendix and solenoid relay used in the engine-starting circuit. The Bendix transfers starter rotation to the engine during cranking, while the relay switches power to the motor.
The starter has a 12 V PMDD configuration, 1.2 kW rating, clockwise rotation, and a 9-tooth drive. These specifications and the OE numbers provide concrete comparison points when replacing an existing unit.
5. Package Includes
- 1 starter motor
- 1 starter drive Bendix
- 1 starter solenoid relay
6. Important Fitment Note
Before purchase, compare OE number 3084981 or 3090188 and confirm the original starter is 12 V, clockwise, PMDD, and 9-tooth. Match the listed year and exact Sportsman configuration, then compare the Bendix and relay connections with the original parts.
