3 Row Radiator+Shroud+Fan+Relay Kit 161 For 1973-1986 Chevy/GMC C/K C10 C20 C30:
$178.88

Description:

100% Brand new and never been used.
Direct Bolt-On OE Fitment or Replacement
Improves Cooling by 35% to 45% Temperature

Professional Installation is Highly

3 Row Radiator+Shroud+Fan+Relay Kit 161 For 1973-1986 Chevy/GMC C/K C10 C20 C30

Description:

100% Brand new and never been used.
Direct Bolt-On OE Fitment or Replacement
Improves Cooling by 35% to 45% Temperature
Professional Installation is Highly
Core Size: 717 x 428 x 44mm (28.23" x 16.85" x 1.73")
Overall Size: 857 x 486 x 138mm (33.72" x 19.13" x 5.43")
Hose Locations & Sizes: In Driver- 1.50"
Out Passenger- 1.57"
Trans Cooler: Included- 1/2" 20 STRAIGHT THREAD G1/4
Petcock Drain: OEM style brass petcock drain
Radiator Cap: CNC machined filler neck and cap
Transmission Oilcooler: Include
Mounting Type: Saddle

12" Slim Fan:

12V, 80W
≤7.5 AMP DRAW
10 Blades
Color:
Fan Diameter: 12.44"
Fan Thickness: 2.36"
Maximum Fan CFM: 800 CFM
Maximum Fan RPM: 2000±10% RPM

Includes the Mounting Tabs for an Easy Zip Tie Kit:

Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.

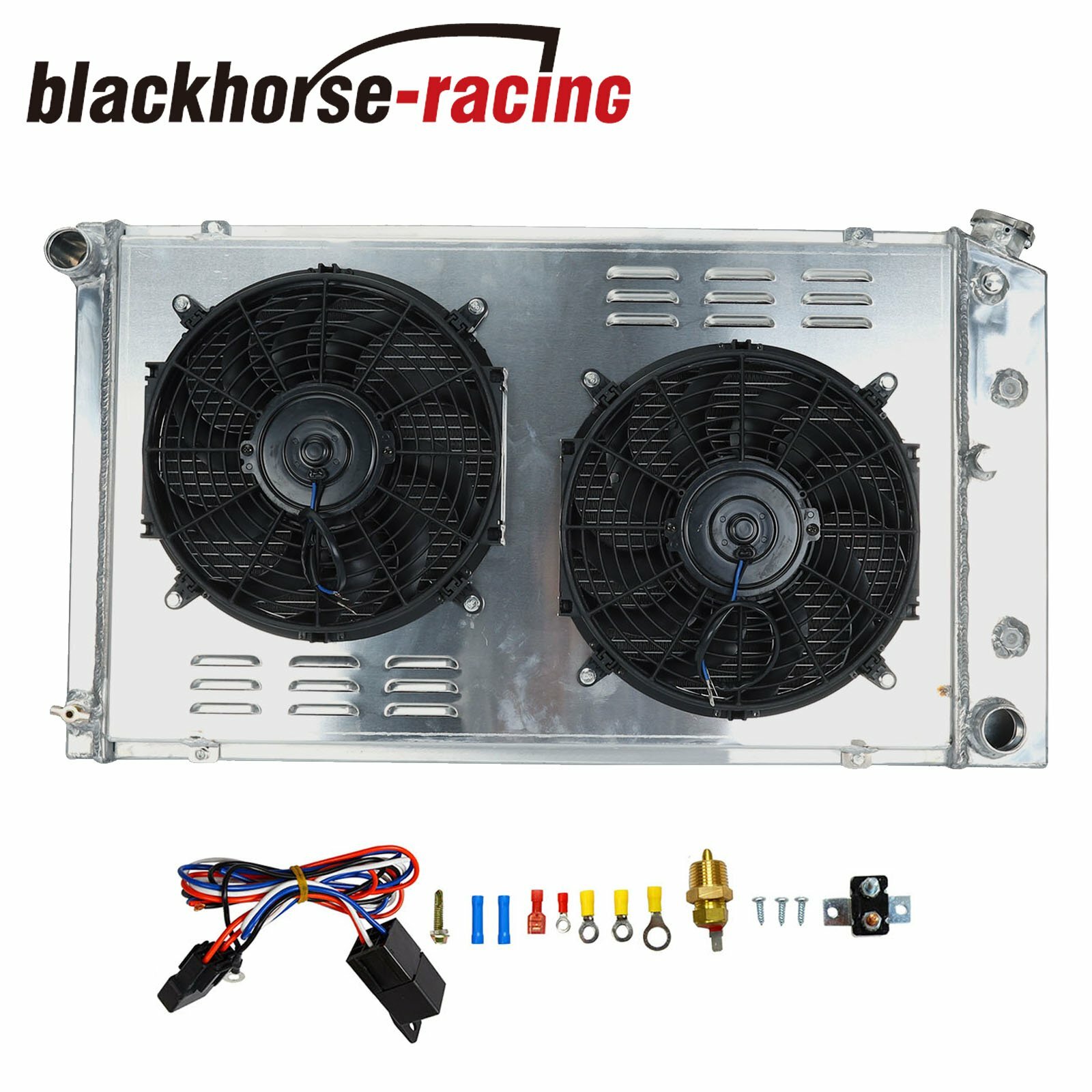

Package includes:

1X
1XAluminumShroud
2X 12" Fans (Includes mounting kits)
1XThermostatRelayKit
Just as pictures show

Fitment:

Buick Centurion 7.5L 1973
Buick Century 3.8L 1975 1976
Buick Century 5.7L 1973 1974 1975 1976
Buick Century 7.5L 1973 1974
Buick Electra 5.0L 1981 1982 1983 1984
Buick Electra 5.7L 1977 1978 1979 1980 1981
Buick Electra 7.5L 1971 1972 1973 1974 1975 1976
Buick Estate Wagon 5.7L 1973 1977 1978 1979
Buick Estate Wagon 7.5L 1971 1972 1973 1974 1975 1976
Buick LeSabre 3.8L 1976 1977 1978 197
Buick LeSabre 5.0L 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990
Buick LeSabre 5.7L 1971 1972 1973 1974 1975 1976 1978 1979
Buick LeSabre 7.5L 1971 1972 1973 1974 1975 1976
Buick Reatta 3.8L 1988 1989 1990 1991
Buick Regal 3.8L 1975 1976 1977
Buick Regal 5.7L 1973 1974 1975 1976 1977
Buick Regal 7.5L 1973 1974
Buick Riviera 3.8L 1980 1981 1982 1983 1984 1985
Buick Riviera 4.1L 1981 1982 1983 1984
Buick Riviera 5.0L 1980 1981 1982 1983 1984 1985
Buick Riviera 5.7L 1977 1978 1979 1980
Buick Riviera 7.5L 1971 1972 1973 1974 1975 1976
Buick Skylark 5.7L 1972
Cadillac Calais 7.7L 1968 1969 1970 1971 1972 1973 1974
Cadillac DeVille 7.7L 1970 1971 1972 1973 1974
Cadillac Eldorado 4.1L 1981 1982
Cadillac Eldorado 5.7L 1979 1980
Cadillac Eldorado 6.0L 1980 1981
Cadillac Eldorado 8.2L 1970 1971 1972 1973 1974
Cadillac Fleetwood 7.7L 1970 1971 1972 1973 1974
Cadillac Seville 4.1L 1981 1982
Cadillac Seville 5.7L 1980 1981
Cadillac Seville 6.0L 1980 1981
Chevrolet Bel Air 5.7L 1971 1972 1973 1974
Chevrolet Biscayne 5.7L 1971 1972
Chevrolet Blazer 4.1L 1973 1974
Chevrolet Blazer 4.8L 1973
Chevrolet Blazer 5.0L 1973
Chevrolet Blazer 5.7L 1973 1974
Chevrolet Brookwood 5.7L 1971 1972
Chevrolet C10 4.1L 1975 1976 1977 1978 1979 1980
Chevrolet C10 4.8L 1975 1976 1977 1978 1979 1980
Chevrolet C10 5.0L 1977 1978 1979 1980
Chevrolet C10 5.7L 1975 1976 1977 1978 1979 1980
Chevrolet C10 Pickup 4.1L 1973 1974
Chevrolet C10 Pickup 4.8L 1973 1974
Chevrolet C10 Pickup 5.0L 1973
Chevrolet C10 Pickup 5.7L 1973 1974
Chevrolet C10 Suburban 4.1L 1973 1974 1975 1976 1977 1978 1979 1980
Chevrolet C10 Suburban 4.8L 1973 1974
Chevrolet C10 Suburban 5.0L 1973 1977 1978 1979
Chevrolet C10 Suburban 5.7L 1973 1974 1975 1976 1977 1978 1979 1980
Chevrolet C20 4.1L 1975 1976 1977 1978 1979 1980
Chevrolet C20 4.8L 1975 1976 1977 1978 1979 1980
Chevrolet C20 5.0L 1977 1978 1979 1980
Chevrolet C20 5.7L 1975 1976 1977 1978 1979 1980
Chevrolet C20 Pickup 4.1L 1973 1974
Chevrolet C20 Pickup 4.8L 1973 1974
Chevrolet C20 Pickup 5.0L 1973
Chevrolet C20 Pickup 5.7L 1973 1974
Chevrolet C20 Suburban 4.1L 1973 1974
Chevrolet C20 Suburban 4.8L 1973 1974 1975 1976 1977 1978 1979
Chevrolet C20 Suburban 5.0L 1973 1977 1978 1979
Chevrolet C20 Suburban 5.7L 1973 1974 1975 1976 1977 1978 1979 1980
Chevrolet C30 4.1L 1975 1978 1979 1980
Chevrolet C30 4.8L 1975 1976 1977 1978 1979 1980
Chevrolet C30 5.0L 1978 1979
Chevrolet C30 5.7L 1975 1976 1977 1978 1979 1980
Chevrolet C30 Pickup 4.1L 1973 1974
Chevrolet C30 Pickup 4.8L 1973 1974
Chevrolet C30 Pickup 5.0L 1973
Chevrolet C30 Pickup 5.7L 1973 1974
Chevrolet Caprice 4.1L 1977 1978 1979
Chevrolet P30 4.8L 1975
For the year and models, please check the compatibility.
