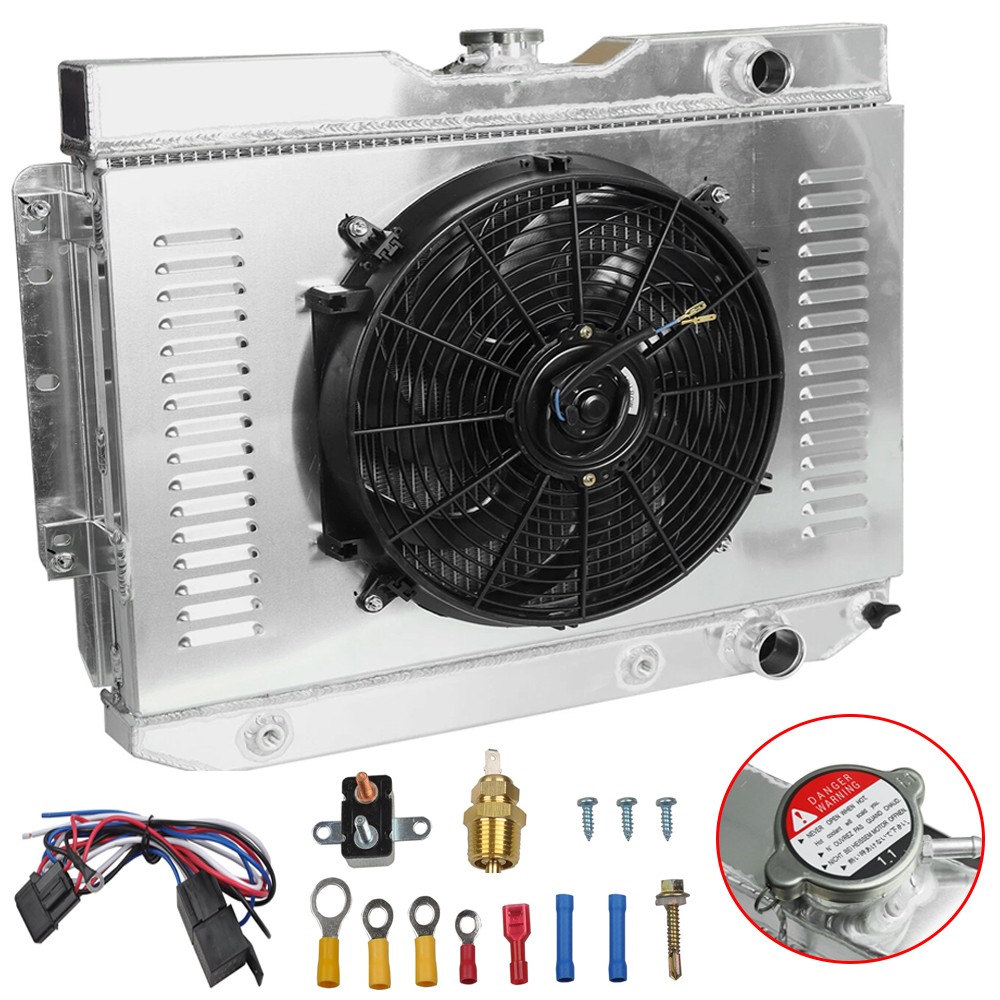

3 Row Radiator+Shroud Fan For 1959-1965 Chevy Bel Air Impala El Camino ChevelleItem Description【Fitment】For 1959-1965 Chevy El Camino/Impala/Chevelle L6 V8 - I highly recommended you check the fitment before you buy.
【Thin Aluminum Fins】Overall durability & corrosion-free property
【Fan Shroud】Help shield the radiator from the engine heat, increases and directs the airflow.
【Electric Fan】Save horsepower, be mounted directly, be automatically controlled by a thermostatic temperature switch
【OE/OEM Part Number】281, CC281, MC281, RAD281
【High performance】Features: 100% Leak Tested, 3 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation ; Mounting Style: Bolt-On
【High-quality materials】Radiator is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the radiator is welded in vacuum brazing furnace, no epoxy.
【About Us】3 Months warranty ; Local delivery ; If you have any questions, please feel free to contact us, we will solve it for Brand new and never been used.
Made of High Quality Full AA5052 Aluminum Construction
Stronger and Higher Capacity for Coolant than Stock Units
3-Row Light-Weight Racing Design
Core Size: 412 x 628 x 44mm (16.22" x 24.72" x 1.73")
Overall Size: 547 x 710 x 98mm (21.54" x 27.95" x 3.86")
Inlet Hose Connection: 1 1/2" Passenger Side
Outlet Hose Connection: 1 3/4" Passenger Side
MOUNTING BRACKET BOLT SPECS:
26 3/4" WIDE CENTER TO CENTER
10 3/8" VERTICAL CENTER TO CENTER
Direct Bolt-On OE Fitment or Replacement
Improves Cooling by 35% to 45% Temperature
Professional Installation is Highly Recommended
No Instruction Included
14" Slim Fan:
12V, 90W
≤9.5 AMP DRAW
8 Blades
Color: Black
Fan Diameter: 14.72"
Fan Thickness: 2.64"
Maximum Fan CFM: 900 CFM
Maximum Fan RPM: 2000±10% RPM
Includes the Mounting Tabs for an Easy Zip Tie Installation
Easy direct installation, require NO modification
OE Fitment or Replacement, Push or Pull Type
Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
FitmentFor 1960-1965 Chevy Biscayne All Engines
For 1959-1963 Chevy Impala All Engines
For 1963-1965 Chevy Belair All Engines
For 1964-1965 Chevy Chevelle All Engines
For 1959-1962 Chevy Kingswood All Engines
For 1959-1960 Chevy El Camino /Cabellero All Engines
For 1964-1965 Chevy El Camino /Cabellero All Engines
For 1959-1962 Chevy Caprice All Engines
For the year and models, please check the compatibility.Package Included1X AA5052 Aluminum Radiator
1X AA5052 Aluminum Shroud
1X 14" Fans (Includes mounting kits)
1X Thermostat Relay Kit
Just as pictures show
