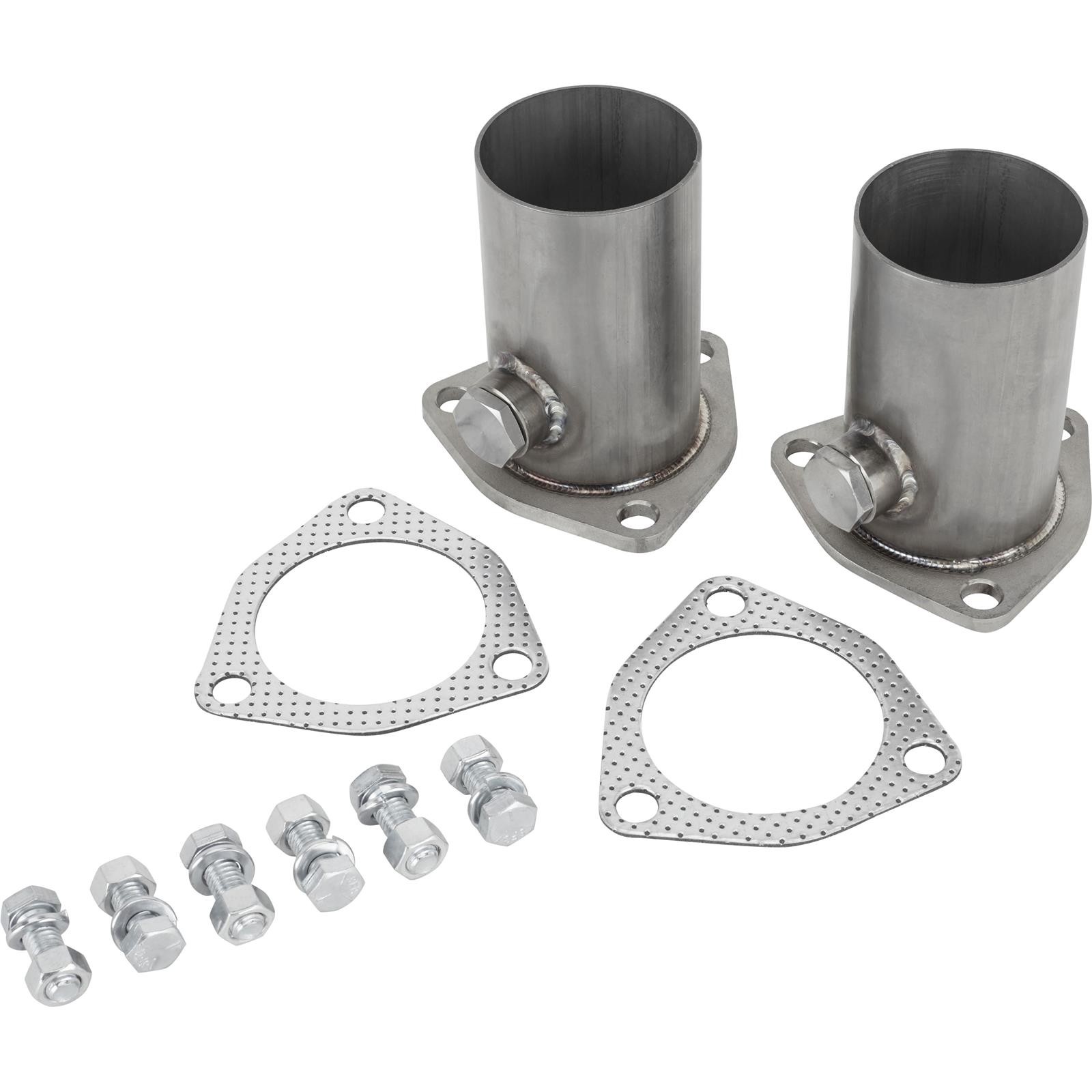

3-bolt header flange/reducer connects to standard header flanges, Slip fit outlet for welding or clamping to your new or existing exhaust pipes, 2.5-inch diameter inlet/outlet flange made from T304 stainless steel, Includes 3-bolt flange gaskets and mounting hardware, Sold as a pair 3-Bolt Exhaust Flange Collector w/ O2 Bung, 2.5-inch SS Sku # 9302504 Mfr. Part # 9302504 Condition New Brand Speedway Motors Sold Pair Details
- Traditional 3-bolt header flange bolt pattern for 2.5-inch header collectors
- Outlet features slip fit/weldable connection to your existing or new exhaust tubing
- Manufactured from T304 stainless steel materials with a raw finish ready for coating
- Oxygen sensor bung welded into tube with O2 sensor plug included
- Sold as a pair and includes mounting hardware and 3-bolt flange gaskets
Add Oxygen Sensor Bungs to Your Exhaust with Standard 3-Bolt Header Flanges
Many headers today still use the standard 3-bolt header flange connection at the header collector. It is a simple and easy way to connect your exhaust system to your tubular headers. While some headers include a mating 3-bolt flange “starter tube” in their header kit, not all do. On top of that, older headers that were not designed around the use of aftermarket fuel injection systems, wideband oxygen sensor air/fuel gauges, and even the use of wideband O2 sensors as part of dyno tuning, do not have an easy way to install the O2 sensor without having to remove the header, drill a hole, and weld in an oxygen sensor bung. If you need to add an O2 sensor bung to your header our 3-bolt header flange with integrated O2 sensor bung is what you need!
Made from T304 stainless steel, our 2-1/2-inch diameter 3-bolt exhaust flange features a matching 2-1/2-inch outlet connection ready to weld or Shop Exhaust Band and Tube Clamps to your exhaust or turbo system hot side. The oxygen sensor bung comes pre-installed, saving you time and frustration. The oxygen sensor bung can be used for your Shop Retrofit EFI Systems wideband oxygen sensor, or the sensor that is included in an Shop AFR Gauges. As mentioned above, many dyno tuners run a wideband oxygen sensor for dyno tuning as well, so having the O2 sensor bung ready at hand makes things easy. An O2 sensor plug is included for each O2 sensor bung when the bung is not in use or not required, so there’s no need to screw in an old spark plug! Just thread in the included oxygen sensor plug. See our full line of Shop Speedway Motors Header Flange Reducers if you’re looking for additional inlet/outlet sizes.
Specs Overall Length 4.10" Centerline of Holes 3.54" Flange Thickness .250" Gasket(s) Included Yes Hardware Included Yes Material Type 304 Stainless Steel Finish Raw Sold in Quantity Pair Flange Style 3-Bolt Oxygen Sensor Bung Included Yes Reviews I would buy this product again Rated by Sevillfleetwood on July 18, 2026
Summary: thanks
Yes, I recommend this product.
