Fits 6L80, 6L90, 8L90, 10L80 units, TR6060, TR3160 manual units.
Also fits ’05–’06 Pontiac GTO (differential side).

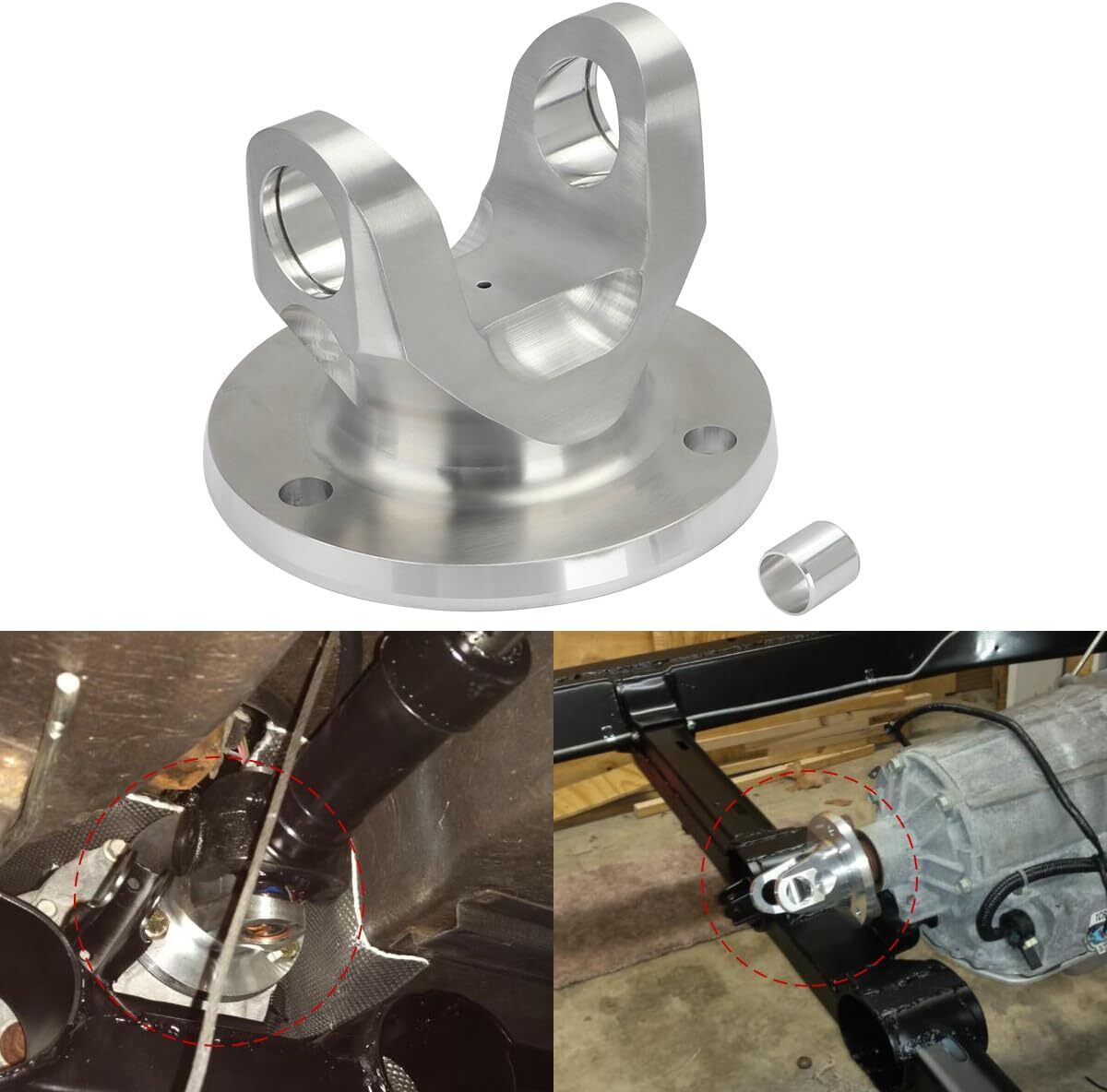

Part No. T35-GMFD-01K
The ideal upgrade for modified performance vehicles, 3-bolt adapter flange yoke kit T35-GMFD-01K makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline. Combined with tubing and weld yokes, this unique flange dramatically increases strength and durability while reducing future maintenance costs.Eliminates the troublesome guibo and/or CV joint(s)
Great for drivetrain swaps and retrofits in custom applications such as street rods and hot rods
Manufactured from 6061-T6 aluminum
Precision-machined for excellent fit and balance
Spacer pictured is included for 8L90 & 10L80 transmissions; see Adapter Flange Yoke
Spacer 8L90 & 10L80 Only
Specs:
U-Joint Series: 1350
Pilot Type: F
Material: 6061-T6
Bolt Hole Dia. : 0.500"
Flange Face to Centerline: 3.000"
Weight: 1.980lbs
Flange Outer Dia. : 5.450"
Pilot Dia. : 0.631"
Bolt Count: 3
Bolt Circle Dia. : 110mm
