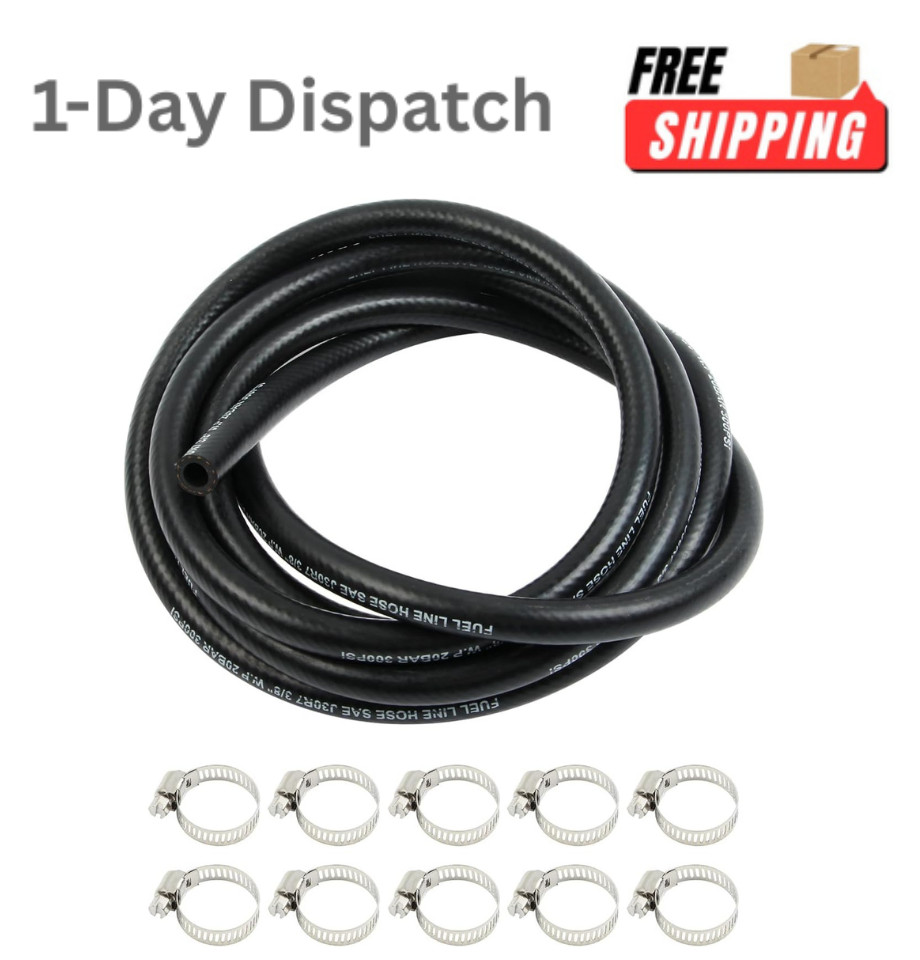

3/8\" Transmission Cooler Hose with Clamp SAE J1532 Standards 10Ft 250 PSI. For Sale - New and Used

This transmission cooler hose is a 3/8 inch (inner diameter 9.5mm, tolerance plus or minus 0.4mm) transmission cooling pipe with an outer diameter of 0.63 inches (16mm, tolerance plus or minus 0.5mm) and a single length of 10 feet. Minimum bending radius of 5.03 inches (128mm), flexible and easy to install. Suitable for pipelines with an inner diameter of 16-25mm with a wide range of applications. The pipeline has a working pressure of up to 250 PSI, a rupture pressure of up to 1000 PSI, and strong pressure resistance. Stable operation within the extreme temperature range of -40 degrees Fahrenheit to 257 degrees Fahrenheit (-40 degrees Celsius to 125 degrees Celsius), suitable for harsh working conditions. Adopting a three-layer reinforced design: the inner layer is an oil resistant NBR rubber tube, the middle layer is wrapped with a polyester fiber reinforcement layer, and the outer layer is a wear-resistant CPE protective layer. High strength and flexibility, durable and anti-aging. Suitable for various oil media, including transmission oil, engine oil, hydraulic oil, lubricating oil, and power steering oil, not easy to expand or corrode, maintaining fluid purity. Complies with and exceeds the SAE J1532 industry standard, designed specifically for transmission, engine, and hydraulic oil cooling systems, suitable for oil transmission and cooling of equipment such as automobiles and construction machinery.
KEY FEATURES
Size specifications – 3/8 inch inner diameter (9.5mm) – outer diameter 0.63 inches (16mm) – 10 feet length – minimum bending radius 5.03 inches – flexible and easy to install
Performance parameters – working pressure up to 250 PSI – rupture pressure up to 1000 PSI – temperature range -40°F to 257°F – suitable for harsh conditions
Material structure – three-layer reinforced design – inner NBR rubber oil resistant tube – polyester fiber reinforcement layer – outer CPE wear-resistant protective layer – durable and anti-aging
Fluid compatibility – transmission oil, engine oil, hydraulic oil, lubricating oil, power steering oil – not easy to expand or corrode – maintains fluid purity
Application – complies with SAE J1532 standards – designed for transmission, engine, hydraulic oil cooling systems – suitable for automobiles and construction machinery
ITEM SPECIFICATIONS
Brand: jkorytko
Type: Transmission Cooler Hose
Material: NBR Rubber, Polyester Fiber, CPE
Inner Diameter: 3/8 inch (9.5mm, tolerance ±0.4mm)
Outer Diameter: 0.63 inches (16mm, tolerance ±0.5mm)
Length: 10 Feet
Nominal Wall Thickness: 0.13 inches
Working Pressure: 250 PSI
Maximum Pressure: 1000 PSI (Rupture)
Temperature Range: -40°F to 257°F (-40°C to 125°C)
Minimum Bending Radius: 5.03 inches (128mm)
Standard: SAE J1532
Specific Uses: Vehicle Cooling Systems, Transmission Cooling, Power Steering, Hydraulic Systems
Unit Count: 1
Manufacturer: GearhartTP
Features: Three-Layer Reinforced, Oil Resistant, Wear Resistant, Flexible, Durable, Anti-Aging, High Strength
