2SP Ultimate Oil Pickup + Oil Pan Baffle Plate + Windage Tray Plate Kit
fit EJ20 Subaru WRX 2002-2005 with single-scroll pan (see photo)2SP Subaru WRX / STI oil pickup replaces the OEM EJ20 oil pickup which is prone to failure. It's a well-known fact that the OEM oil pickups often crack and fail which in most cases destroys your motor from lack of oil pressure.
2SP Oil Pickup design has been improved in this stainless steel version.
To avoid the cracking failures seen in the OEM oil pickup tubes, the oil pickup is manufactured from stainless steel tubing that is 2x thicker than OEM. Additionally, it features a flange machined from 5mm stainless steel to mate with the block, sealed with a rubber O-ring.
The integrated heavy-duty 3mm stainless steel mounting bracket uses two mounting points rather than the OEM single mounting point. Furthermore, the oil pickup features a formed bottom with an OEM style mesh screen for proper filtration.
The TIG-welded oil pickup increased material thickness matched with the two-point heavy-duty mounting bracket helps ensure it does not fatigue and fail over time like an OEM unit.
Features:- Heavy-Gauge Stainless Steel Tubing that is 2x thicker than OEM- 5mm CNC Billet Stainless Steel Flange
- 3mm Stainless Steel Bracket
- OEM Style Steel Mesh Screen Filter
- Completely TIG Welded2SP Windage Tray Plateis proven to increase power and prevent oil starvation in your Subaru EJ20 or EJ25
Features:
Closed rear section to prevent oil from sloshing into the crank under hard acceleration and aggressive shifts.Block contoured profile to minimize oil returning from the heads interfering with the crank.Directional louvers prevent oil in the pan from splash/sloshing into the crank.Low profile design to control windage and strip oil from the crank immediately to reduce oil “roping” on the crank.Improved oil entry to the pan/pickup to help prevent oil starvation.Made from stainless steel for long life, durability and corrosion resistance.Uses OEM baffle mounting locationsAlthough the Subaru EJ20, EJ25 engines is a popular design among enthusiasts, they do have oil sloshing issues with oil going back and forth from head to head under extreme cornering.
Oil Pan Baffle PlateWhen under hard cornering, acceleration and deceleration the oil in your oil pan has a tendency to slosh to one side, when this happens air can be sucked up into the pickup tube which results in no oil pressure and metal to metal contact. This metal to metal contact is devastating in your engine and results in explosively high temperatures.2SP has built this baffle plate for just this problem, it is designed to keep oil low in the pan and prevents it from sloshing to one side.
Installs easily between the block and oil pan on both EJ20/EJ25 series engines.
Made from 1.5mm stainless steel using precision CNC laser cutting and bending after CAD design for long life, durability and corrosion resistance.

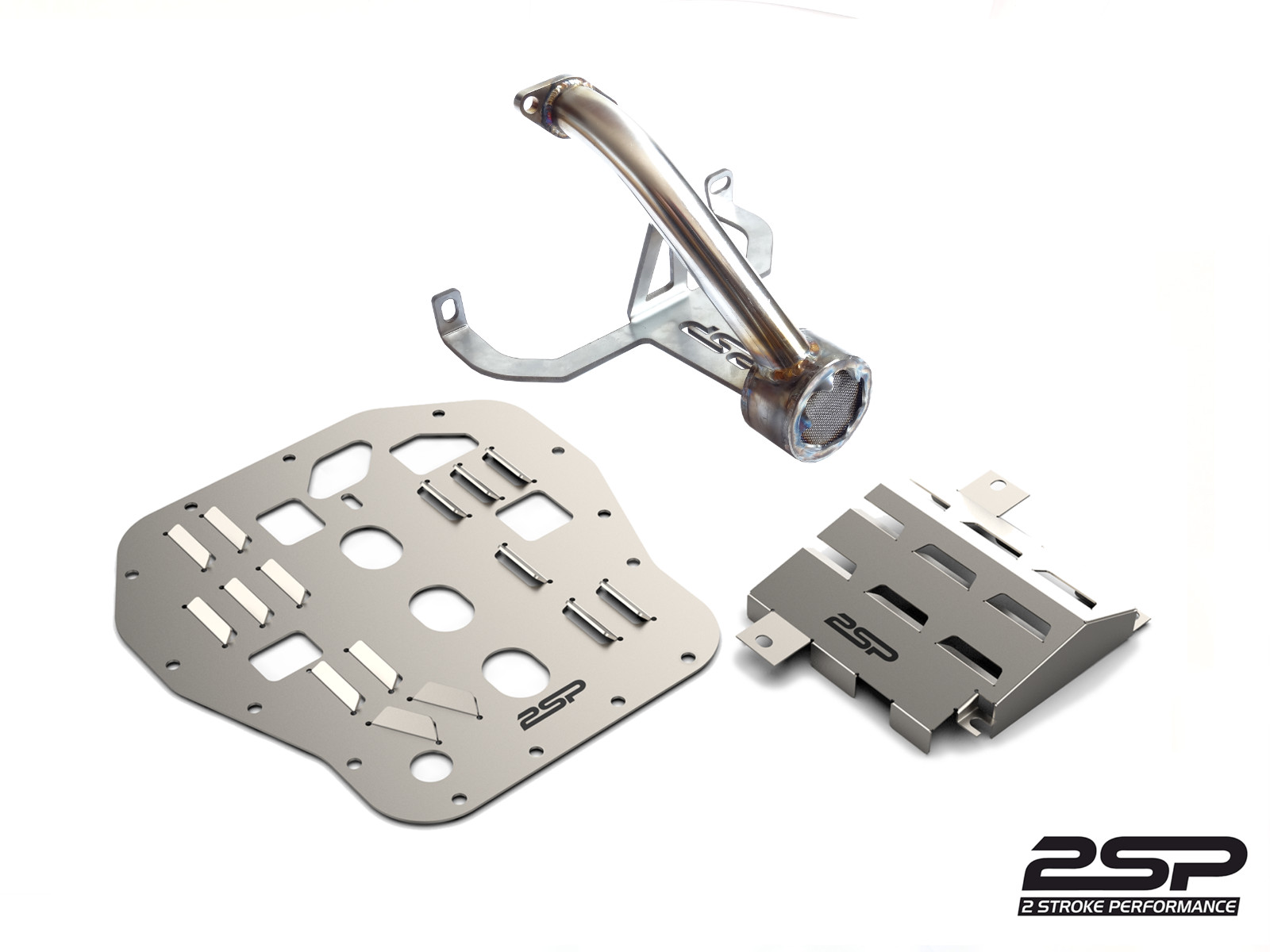

This Kit Includes:x1 Ultimate Oil Pickupx1 Windage Tray Plate
x1 Oil Pan Baffle Platex1 Rubber O-ringx20 Screws
Made in Ukraine with love)
